FF-12H 12-24V DC High Speed Fiber Optic Amplifier With CE Certificate

FF-12H 12-24V DC High Speed Fiber Optic Amplifier With CE Certificate photo-1
FF-12H 12-24V DC High Speed Fiber Optic Amplifier With CE Certificate photo-2
FF-12H 12-24V DC High Speed Fiber Optic Amplifier With CE Certificate photo-3
FF-12H 12-24V DC High Speed Fiber Optic Amplifier With CE Certificate photo-4
FF-12H 12-24V DC High Speed Fiber Optic Amplifier With CE Certificate photo-5
US$ 15 - 25 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FF-12H
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen;Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name F&C
Model Number FF-12H
Usage Position Sensor
Theory Optical Sensor
Output Switching Transducer

F&C 12-24V DC High Speed optical fiber amplifier.

Fiber Optic Amplifier w/ potentionmeter



Application

 FF-12H 12-24V DC High Speed fiber optic amplifier with CE certificate



Product Description



1.10mm thickness, install several amplifiers at the same time.



2. Multi-turn sensivity adjustment, low cost.



3. Manual set off time inductive  time 4ms,40ms,400ms







FF-12H 12-24V DC High Speed fiber optic amplifier with CE certificate



Specification

FF-12H 12-24V DC High Speed fiber optic amplifier with CE
ModelFF-12H
Output ModeNPN
Operating Voltage12~24V DC
Reaction  Time50us
Timer Function 40ms OFF Delay timer
Current Consumption100mA Max
Load Current10mA Max @24V DC
Short-circuit ProtectionYes
Reverse Polarity ProtectionYes
Output IndicatorRed LED
Power IndicatorGreen LED
Isolation Resistance20M Ω @500V DC
Insulation Strength60 seconds @500V AC 60HZ
Operating Temperature-10~50℃
Operating Humidity35~85%RH
Waterproof GradeIP64
MaterialShell: heat-resistant ABS, cover: polycarbonate
fiber optic sensor fixed rod: PPS
Weight65g
Accessory Mounting Bracket
Connecting MethodPre-wired wires

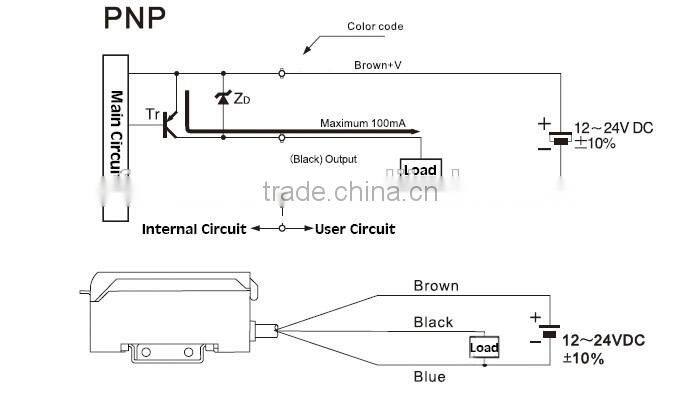

Product Drawing



Fiber Optic Amplifier w/ potentionmeter

FF-12H 12-24V DC High Speed fiber optic amplifier with CE certificateFF-12H 12-24V DC High Speed fiber optic amplifier with CE certificateFF-12H 12-24V DC High Speed fiber optic amplifier with CE certificate
