Home > Electrical & Electronics > Sensor > Pressure Sensor > Optical Fiber Amplifier FF-12 Mini Fiber Amplifier

Optical Fiber Amplifier FF-12 Mini Fiber Amplifier

Optical Fiber Amplifier FF-12 Mini Fiber Amplifier photo-1

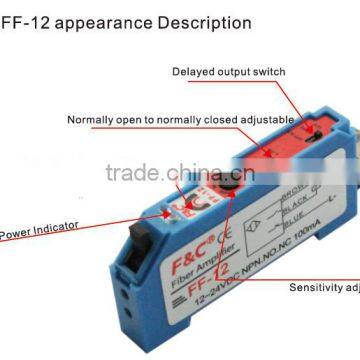

Optical Fiber Amplifier FF-12 Mini Fiber Amplifier photo-2
Optical Fiber Amplifier FF-12 Mini Fiber Amplifier photo-3
US$ 15.8 - 25 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FF-12
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou; Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name F&C
Model Number FF-12
Usage Position Sensor
Theory Optical Sensor
Output Other, Switching Transducer, NPN/PNP

Optical fiber amplifier FF-12 mini fiber amplifier



Product Description



F&C low price NPN PNP fiber optic amplifier
ModelFF-12
Output ModeNPN
Operating Voltage12~24V DC
Reaction  Time200us
Timer Function 40ms OFF Delay timer
Current Consumption100mA Max
Load Current10mA Max @24V DC
Short-circuit ProtectionYes
Reverse Polarity ProtectionYes
Output IndicatorRed LED
Power IndicatorGreen LED
Isolation Resistance20M Ω @500V DC
Insulation Strength60 seconds @500V AC 60HZ
Operating Temperature-10~50℃
Operating Humidity35~85%RH
Waterproof GradeIP64
MaterialShell: heat-resistant ABS, cover: polycarbonate
fiber optic sensor fixed rod: PPS
Weight65g
Accessory Mounting Bracket
Connecting MethodPre-wired wires





Features advantages for fiber amplifier:



1. Thin volume, 10mm thin to install side by side.



2. Multi-turn sensitivity adjustment, low price and general-purpose.



3. Manual setting offtime inductive time 4ms,40ms,400ms.



4. Shipping from Factory directly with 18 months quality warranty.

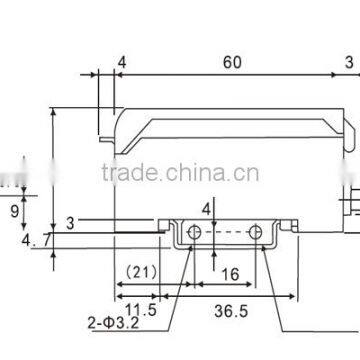

product drawing

 Optical fiber amplifier FF-12 mini fiber amplifierOptical fiber amplifier FF-12 mini fiber amplifierOptical fiber amplifier FF-12 mini fiber amplifier

Optical fiber amplifier FF-12 mini fiber amplifierOptical fiber amplifier FF-12 mini fiber amplifier

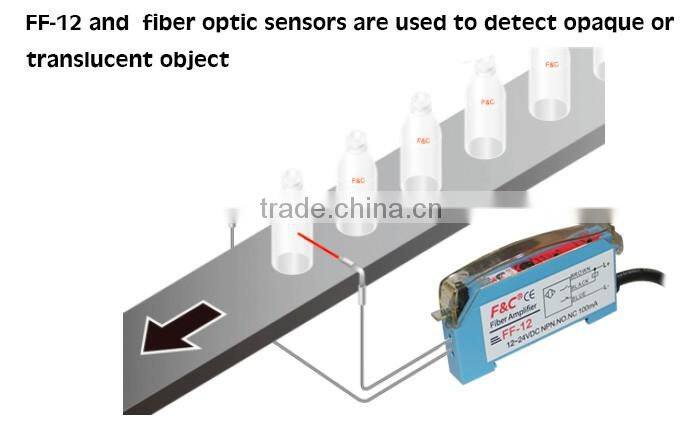

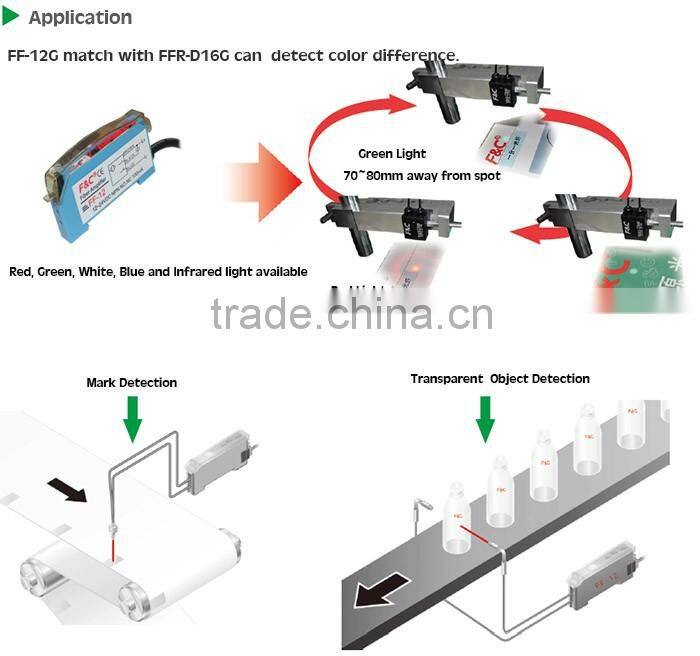

Application for fiber amplifier



Optical fiber amplifier FF-12 mini fiber amplifierOptical fiber amplifier FF-12 mini fiber amplifier
