Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage.

F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage.

F&C Sensing Technology (Hunan) Co., Ltd.
F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage. thumbnail-1
F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage. thumbnail-2
F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage. thumbnail-3
F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage. thumbnail-4
F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage. thumbnail-5
F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage. thumbnail-6
F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage. photo-1

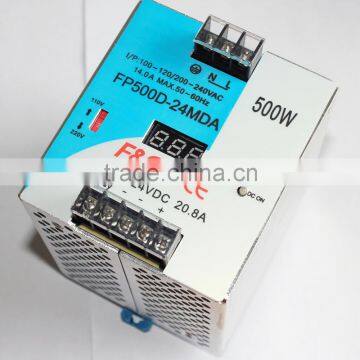

F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage. photo-2

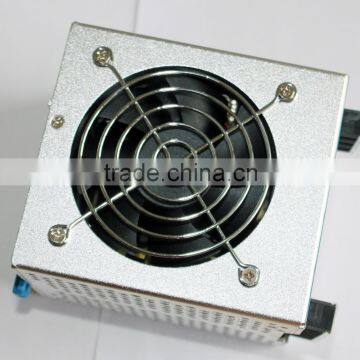

F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage. photo-3

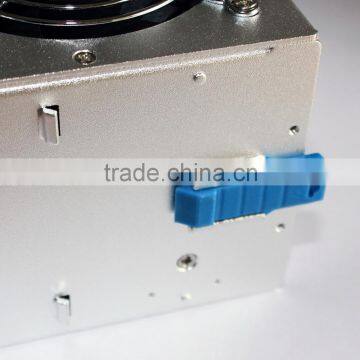

F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage. photo-4

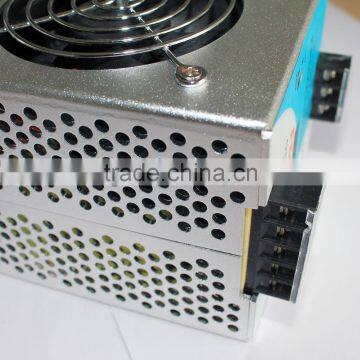

F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage. photo-5

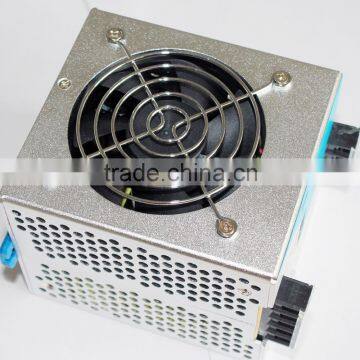

F&C FP500D-24MDA 500W 12/24/68Vdc Optionally, Switch Power Supply, 110 Or 220 Input Voltage. photo-6
US$ 50 - 100 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FP500D
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name F&C
Model Number FP500D
Output Power 401 - 500W
Output Type Single
Input Voltage 220V
Output Voltage Depent models
Output Frequency Depent models
Output Current Depent models
  • Screw/Rail amphibious installation.
  • Natural cooling.
  • 100% Heavy Load test.
  • Output voltage can be modified:3V~200VDC
  • Convenient installation.
  • Voltage digital display
Model:FP500D-12MDAFP500D-24MDAFP500D-68MDA
DC voltage12V24V68V
Rated voltage41.6A20.8A7.3A
Current range0~41.6A0~20.8A0~7.3A
Rated power300W300W300W
Ripple and Noise120mVp-p240mVp-p240mVp-p
Voltage adjustment range14~17V28~34V70~75V
Linear adjust rate±1%±1%±1%
Load adjust rate±2%±2%±2%
Output voltage adjusted ±%V1:+12V ±10%V1:+24V ±10%V1:+68V ±10%
Efficiency±82% min±82% min±82% min
Vibration test2G ,10~500Hz , 3axes
Input range90~132/180~264VAC
Output200~380VDC
Keep time13ms
Input frequency47~440Hz
Impulse current(25 ℃)20A/110VAC 40A/220VAC
Working temperature-15~+50℃
Work humidity5~+95%RH
Storage temperature-20~+85℃

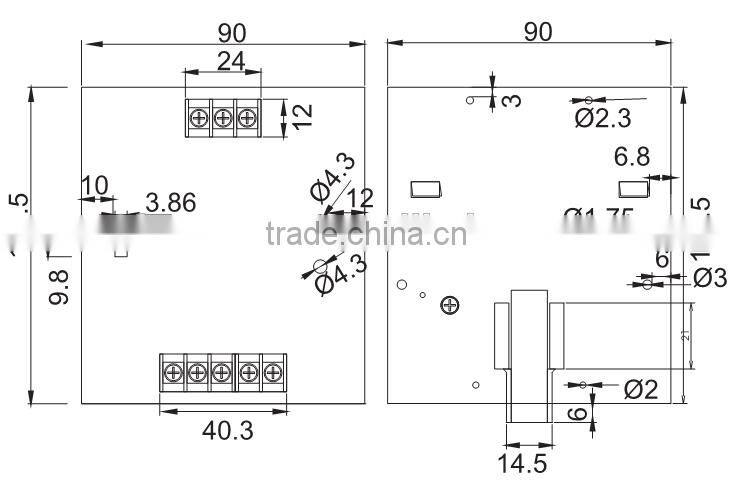

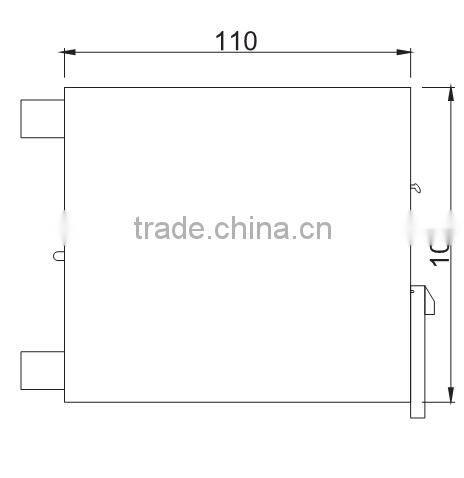

Diagram



 F&C FP500D-24MDA 500W 12/24/68Vdc optionally, Switch Power Supply, 110 Or 220 Input Voltage.F&C FP500D-24MDA 500W 12/24/68Vdc optionally, Switch Power Supply, 110 Or 220 Input Voltage.
