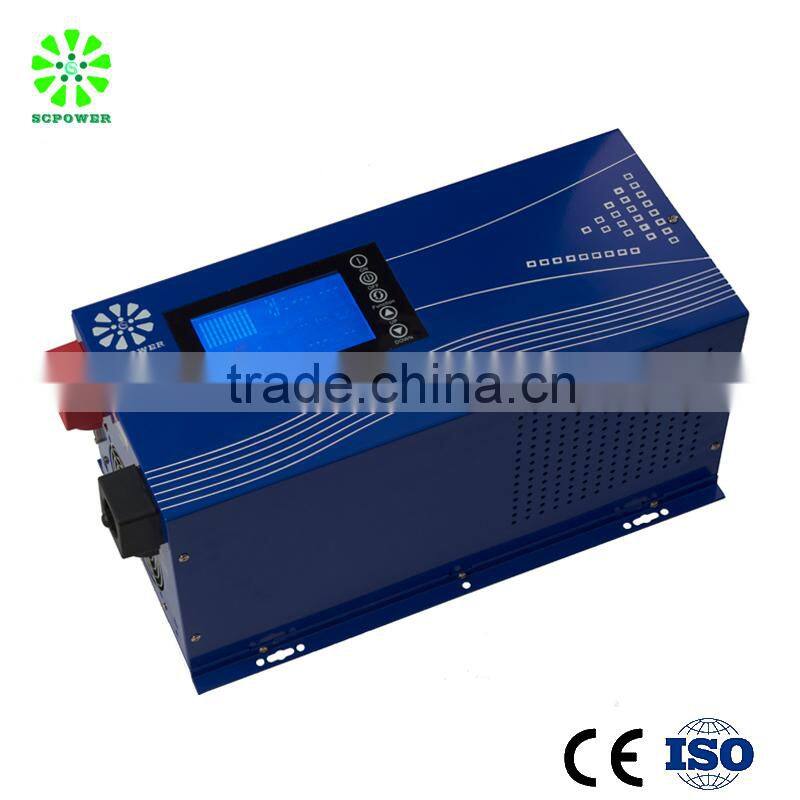

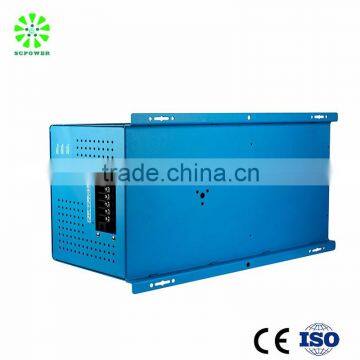

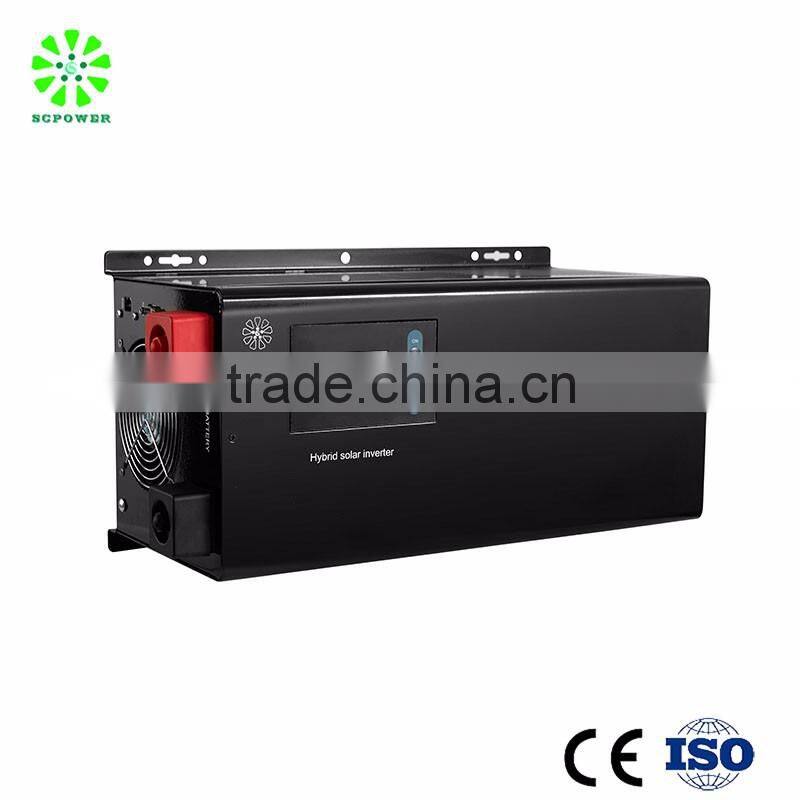

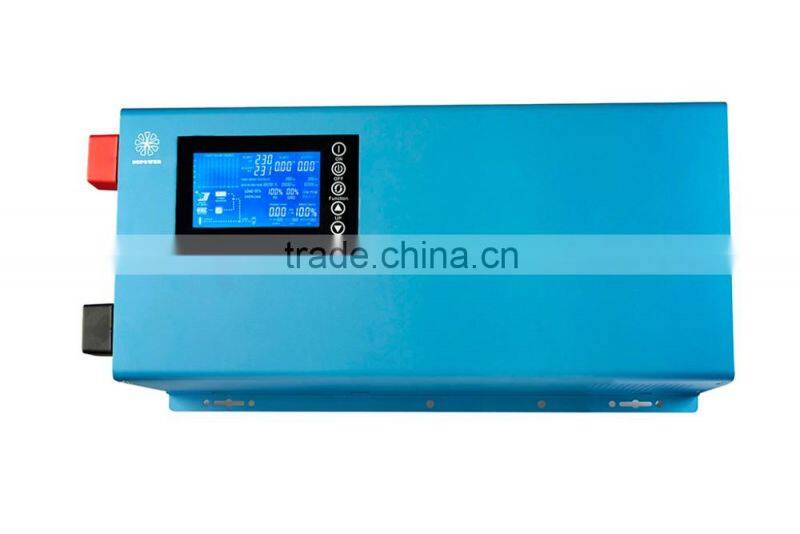

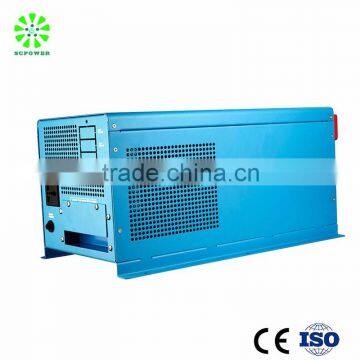

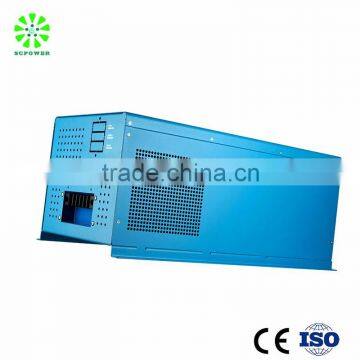

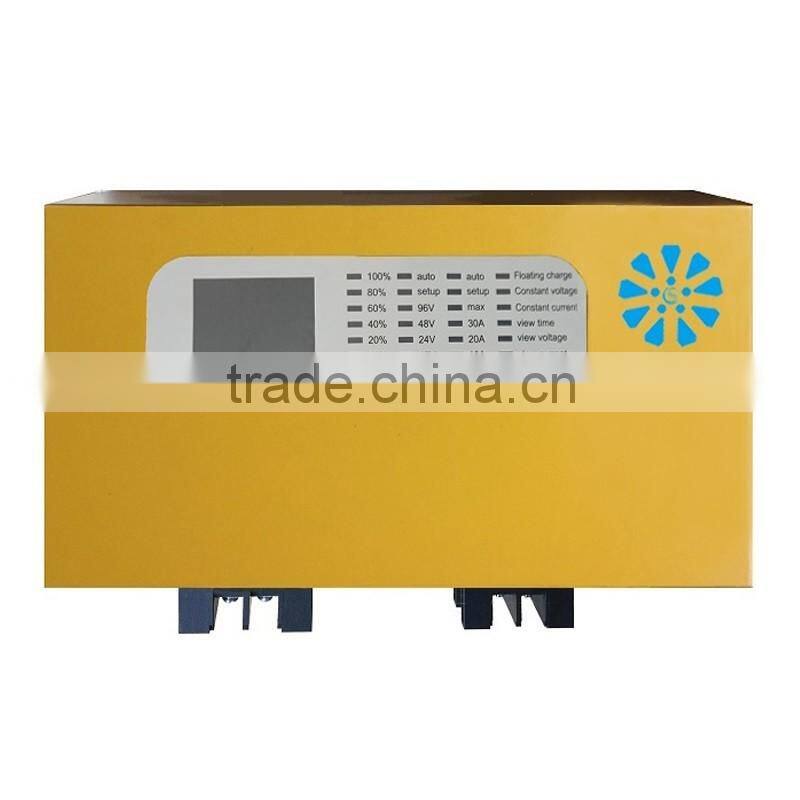

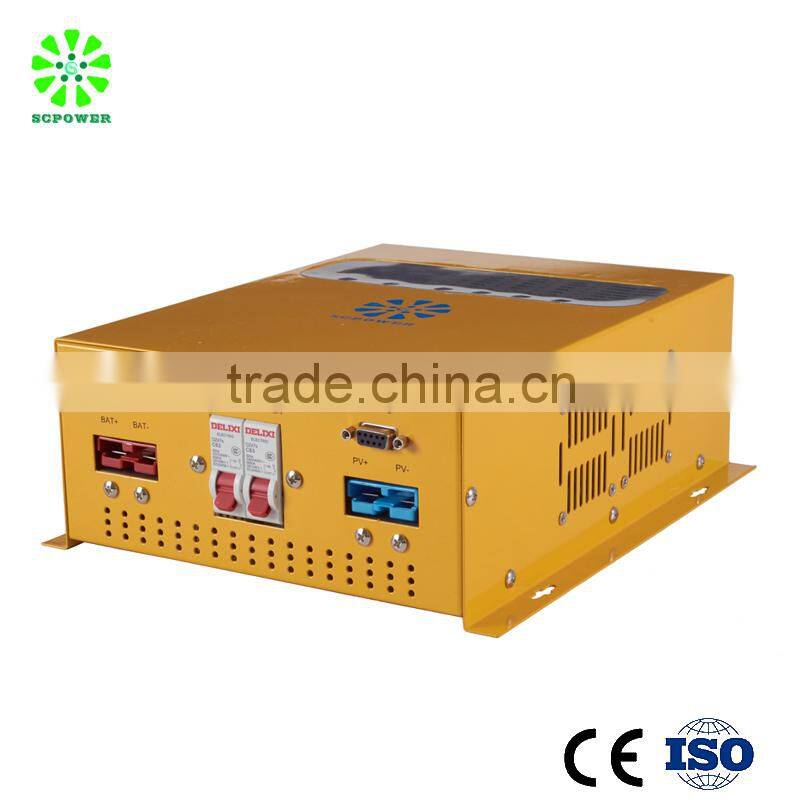

Solar Hybrid Inverter With MPPT Controller 3kw/4kw/5kw/6kw -Grid Tie/On Grid/Off Grid
US$ 1 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SCPOWER/OEM
Model Number:
SC-GS
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan or Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale for Home Use Solar Power System With Grid Tie Inverter 5kwUS$ 432 - 480MOQ: 10 Units -
Hot Sale for Home Use Solar Power System With 10kw Grid Tie InverterUS$ 432 - 480MOQ: 10 Units
-
Hot Sale for Home Use Solar Power System With Grid Tie Inverter 6000wattUS$ 432 - 480MOQ: 10 Units
-
Latest Grid Tie On Grid Smart Inverter New Products On China MarketUS$ 300 - 400MOQ: 5 Pieces
-
Home Use 48V to 220V 1000w Grid Tied Inverter With ChargerUS$ 300 - 400MOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
SCPOWER/OEM
Model Number
SC-GS
Specification
Normal
Application
Home
Output Voltage (V)
110V/220V/230V/240V
Load Power (W)
3~6kw
Solar Power (W)
3-6kw
Work Time (h)
24 Hours
On gird/off grid/grid tie Solar Hybrid Inverter
SC-GS series
Solar Hybrid Inverter with MPPT solar charge controller 1kw/1.5kw/2kw/3kw -Grid tie/On grid/Off grid
| Charge battery from Solar and Grid | Feed-in to load first, surplus solar to the grid | Intelligent working mode | Power all kinds of appliances-Motor load | Take control of your power |
Solar Hybrid Inverter with MPPT controller 3kw/4kw/5kw/6kw -Grid tie/On grid/Off grid
Solar Hybrid Inverter with MPPT controller -Grid tie/On grid/Off grid Parameter | |||||||||
| Series | 1000VA | 1250VA | 2500VA | 3750VA | 4000VA | 5000VVA | 7500VA | 10KVA | |
| Rate Output Power | 800W | 1000W | 2000W | 3000W | 3200W | 4000W | 6000W | 8000W | |
| Surge power | 2400W | 3000W | 6000W | 9000W | 9600W | 12KW | 18KW | 24KW | |
| Output-(AC Load&Grid-tied) | |||||||||
| Output wave type | Pure sine wave output, Total Harmonic Distortion THD≤3% | ||||||||
| Voltage | 220V ± 3% or 230V ± 3% or 110V ± 3% | ||||||||
| AC Output Frequency | 50Hz ± 0.5 or 60Hz ± 0.5 | ||||||||
| Output power(Feed to grid and load) | 800W | 1200W | 1600W | 2400W | 3200W | 4000W | 6400W | 8000W | |
| Ground Wire | Yes | ||||||||
| Islanding Protection | Yes | ||||||||
| Conversion Efficiency | 85%-92%(standard materials) or 92%-97%(special materials) | ||||||||
| Capable of starting motor | 500W | 800W | 1000W | 1600W | 2100W | 2600W | 4200W | 5300W | |
| Power Consumption | ≤ 1A | ||||||||
| Working mode | |||||||||
| Grid-Tied/On-grid/Off-Grid | Auto running;Manual-switch by button; Priority order can be customized by software | ||||||||
| Output-backup(charging) | |||||||||
| Charge Mode setting | PV charge | ||||||||
| PV charge+Utility charge | |||||||||
| Adaptive constant hybrid charging current ( combination of MPPT +AC) | |||||||||
| MPPT solar controller | Voltage | 12V/24V(optional) | 24V/48V(optional) | 48V/96V/192V(optional) | |||||
| Current | 20A | 30A | 50A | ||||||
| Utility | AC charge current | Continuous charge current 1~50A(adjustable by button on display) | |||||||
| AC Output | Voltage | 220V ± 3% or 230V ± 3% or 110V ± 3% | |||||||
| Frequency | 50Hz ± 0.5 or 60Hz ± 0.5 | ||||||||
| Input (PV,Grid, Battery) | |||||||||
| Max PV Input Voltage | 72V/144V | 144V/220V/460V | |||||||
| Battery voltage | 12V/24V(optional) | 24V/48V(optional) | 48V/96V/192V(optional) | ||||||
| PV charge efficiency(MPPT) | 95%~99% | ||||||||
| AC Input | 145V~275V or 72V~137V 50Hz or 60Hz | ||||||||
| Automatic Voltage Regulator | Yes(AVR) | ||||||||
| General Parameter | |||||||||
| Auto Bypass | Customized | Yes | |||||||
| Display Information | Input voltage, output voltage, output frequency, battery capacity, load condition, status information | ||||||||
| Protections | Overload, Short-circuit, High-voltage input, Low-voltage input, Overheat ,Islanding | ||||||||
| Communication port | RS232/USB | ||||||||
| Humidity | 0~90% relative humidity(non-condensing) | ||||||||
| Noise | Low noise <45db | ||||||||
| Size: W*D*H (mm) | 418*208*193.2 | 458*210*216 | 542.5*294*240.7 | ||||||
| Net weight (kgs) | 13 | 15 | 17 | 19 | 21 | 24 | 32 | 3 | |
Contact us
Contact person:Jenica Chen
Tel: +86-757-81230550
QQ:2355892942
Skype: live:exp2_9
Main products
Solar inverter with bulit-in MPPT controller SC-G | Solar grid tie inverter with battery backup SC-GS | Pure sine wave inverter-toroidal transformer SC-V | MPPT solar charge controller 12/24/48V SC-MC |
3 phase solar inverter with MPPT controller SC-GT | 3 phase pure sine wave power inverter SC-VT | AC DC solar hybrid charge controller SC-ML |
MPPT solar charge controller 96V/120V/192V SC-MH |
Our factory

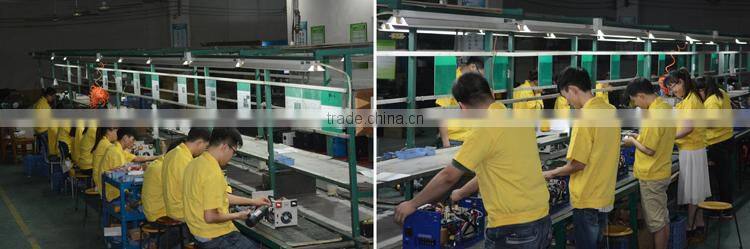

Assembly

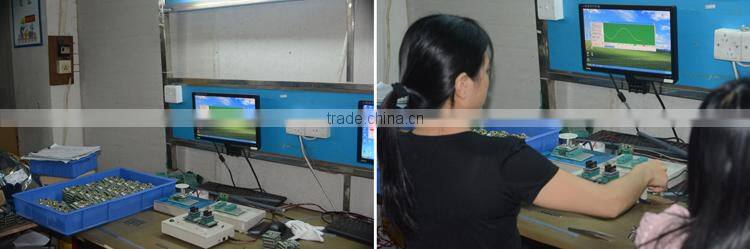

Testing & QC
