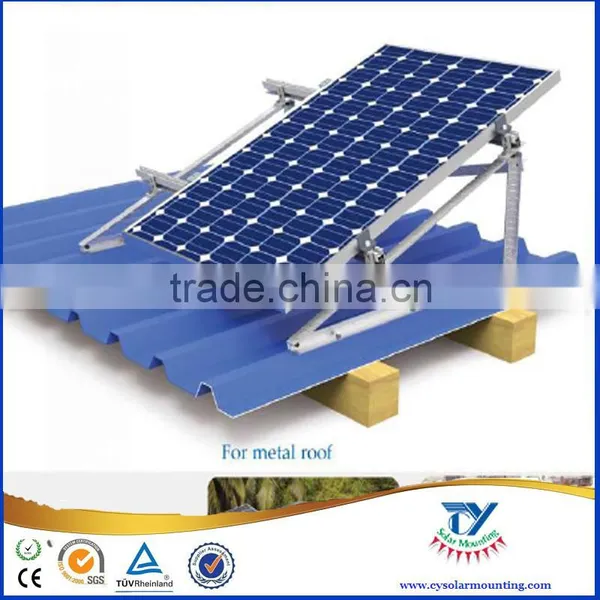

• solar PV flat home racking system •
• Features _________________________________________________
|

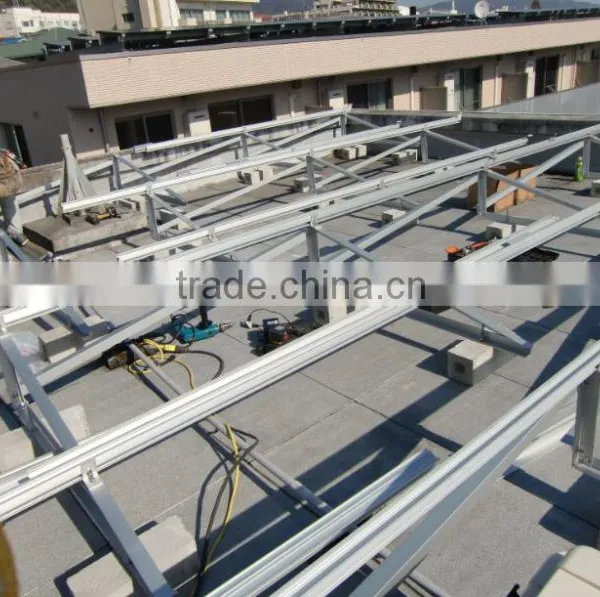

♦CY-ZJ06 is designed for flat roof for pitched roof with inclination less than 10 degrees. This high-quality aluminum material makes it has a good performance on anti- corrosion. Although this is an penetrating racking system, it can use the concrete foundation to pretect the roof. Due to the concise design, it is delivered pre-assambled with solid packing material. Besides, it save the installation time and labor at site.Your project schedule will be shorted and budget will be reduced accordingly.
♦ Specifications: 1. Excellent design
2. Easy installation: 40% ~80% pre-assembled
3. Safety & reliability: IBC 2009,CBC 2010,ASCE/SEI 7-10,ANSI/ATSC 360-05,ACI 318-08
4. Custom-designed
5. High Quality & Competitive Price: The best price with guarantee |
• Information ______________________________________________
| Product model | CY-ZJ06 | |||||
| Application field | Flat concrete or metal roof (drilling) | |||||
| Material | hot dip galvanized steel, Aluminum | |||||
| Arrangement of module | Customized | |||||
| Connecting components | Stainless steel bolt | |||||
| Wind resistance | 35m/s | |||||
| Snow load | 0.8KN/m² | |||||
| Servise life | 30years | |||||
| Warranty | 15 years | |||||
| Standard and certifications | ASCE/SEI7-10 | |||||
• Working process ___________________________________________
Drawing ==> Mechanical Calculation ==> Testing ==> Installation Video
• Drawing&calculation&video _________________________________
Our flexibility, PV solar industry experience and manufacturing capabilities allow us to respond the customers needs
quickly and precision. We are 100% committed to meeting our customer's needs and exceeding their expectations.
• Why choose CY SOLAR? ___________________________________
Attention:
♦ Posistion: Located in CHINA with cheap labor & large raw material market.
♦ Guarantee: Supplied to project to be 396MWracking capacity.
♦ High Pre-assembly: 40% pre-assembly components, good for your time&labor saving!
♦ Flexible: Provide customized pruducts
♦ Professional: With 8 production lines, 10 enigneering developers.
♦ Rapid Transportation: One-hour to Shanghai port.
♦ High quality: Our products have 15-year warranty and 30-year of service life.
♦ Wide Application: Both ground&roof system, include the rail-less roof mounting structure.

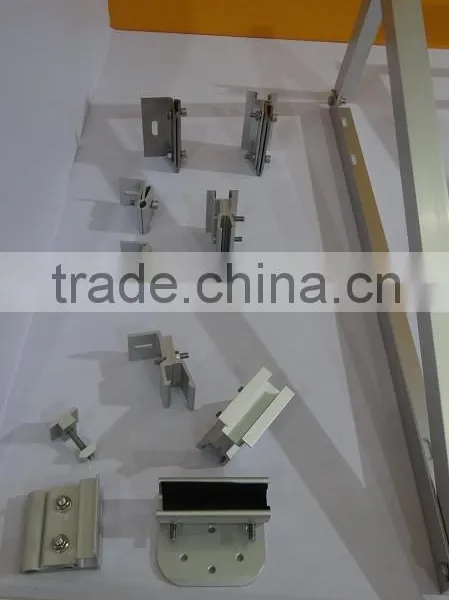

• Details of structure ________________________________________
• Name: Triangle structure • Material: Aluminum6005-T5
• Name: Back-cross rail • Material: Aluminum6005-T5
• Name: Rail • Material: Aluminum6005-T5
• Name: Rail splice • Material: Aluminum6005-T5
• Name: Middle Clamp • Material: Aluminum 6005-T5
• Name: End Clamp • Material: Aluminum 6005-T5
CY Solar is focusing on meeting the huge demands from the public and improving advanced customized solar racking
solution.
Our obedience to the sprit of "Professional, Creative Service" to maintain the good relationship with our clients and
keep long term business relationship with domestic and overseas customers.
♦ Advice for best structure design:
1. Module array:1 row in vertical.
2. Module size: Any type.
3. Module inclination: Based on the latitude of construction site.
♥ Packaging Details: Inner package: Carton or kraft paper
Outer package: Wooden case or pallet
♥ Delivery Detail: 30 days after receiving 30% deposit
When requesting a quote, please offer the following necessary info:
1) What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness.
2) How many panel are you going to mount? _______Pieces,each is _______Wp
3) Lowest height from the panel edge to the ground_____mm?
4) What is your planned pv assmebly block? ________(2*20 or 2*10 or 4*10 or others). in a row,
Horizontal or Vertival?
5) How is weather there, such as wind speed and snow load? ___m/s anit wind speed and____KN/m2
snow load
|
♦CY Solar is a leading enterprise with a comprehensive portfolio of products and services spanning the following areas: Solar Mounting, Solar Ground Mounting,solar mounting systems design, development, implementation, manufacturing, sales, and service. Our factory's chief areas of business involve: solar ground mounting system, flat and tile /iron roof mounts and the solar trackers. ♦We have ten experienced designers to design new solar mounting systems to meet customers' different needs . ♦We are located between the Shanghai City and Hangzhou city, a superior geographical conditions, easily accessible. ♦We have a young engineer team engaged in the development and designing with the advanced production equipment, inspection methods, strict quality control and rich management experience. |
|
♦Our price is much lower than others, because we are a factory , the source ,we produce these products directly . we have eight produce lines , that' s why our delivery time is short than others .The warranty is ten years and the service life can be reach 30years to fit the requirement of solar plant . ♦Our products meet the requirements of the international environmental law , Meet the development trend of the world's environmental ,our production concept is people-oriented . we have CE and ROHS . ♦With our factory, you take advantage of decisive advantages: Innovative ideas and professional project handling. ♦Nevertheless, we have maintained the flexibility of a medium-sized company - due to lean management and short device processes. Starting from small series up to big series, from simple profiles up to complex systems - let us impress you with our performance! ♦Company website: |
