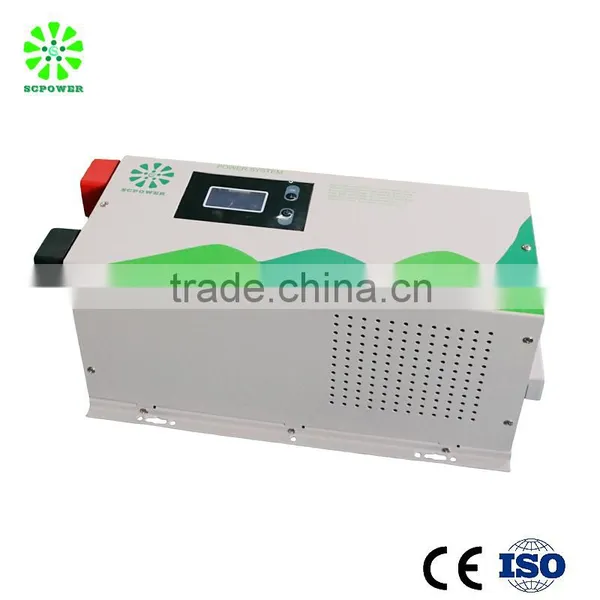

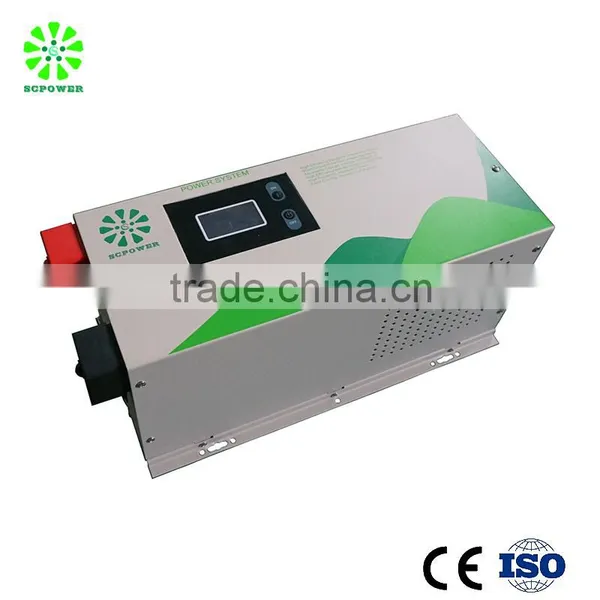

SC-V 10KVA/8000W Power Inverter With USB Function

SC-V 10KVA/8000W Power Inverter With USB Function thumbnail-1
SC-V 10KVA/8000W Power Inverter With USB Function thumbnail-2
SC-V 10KVA/8000W Power Inverter With USB Function thumbnail-3
SC-V 10KVA/8000W Power Inverter With USB Function thumbnail-4
SC-V 10KVA/8000W Power Inverter With USB Function thumbnail-5
SC-V 10KVA/8000W Power Inverter With USB Function thumbnail-6
SC-V 10KVA/8000W Power Inverter With USB Function photo-1
SC-V 10KVA/8000W Power Inverter With USB Function photo-2
SC-V 10KVA/8000W Power Inverter With USB Function photo-3
SC-V 10KVA/8000W Power Inverter With USB Function photo-4
SC-V 10KVA/8000W Power Inverter With USB Function photo-5
SC-V 10KVA/8000W Power Inverter With USB Function photo-6
US$ 1,000 - 1,000 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Type:
Other, Hybrid inverter with built-in MPPT solar charge controller
Contact Supplier Request Quote Chat Now
Foshan SC Power Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Hybrid inverter with built-in MPPT solar charge controller

SC-V 10KVA/8000W power inverter with USB function



High efficiency

long term partner-we are factory

Pure sine wave output





 SC-V 10KVA/8000W power inverter with USB function







How is SCP factory different from other suppliers?



1. Our factory SCP specialized on home/shop type on/off-grid solar inverters

    and we owned core technology and patents



2. SCP self-developed database, PCB, programming and software, 100% coincide completely



3. Unique technical system, paraonline technique and relative invention patent



4. MPPT charging current up to 100A

   AC charging current scope 1-50A(adjustable)

   Automatic recognition of battery charging current



5. Other details

Toroidal Transformer

Low Standby Consumption 1-6W (under sleep mode)/≤1A(under normal mode)

Quiet (Noise<45db)

Multiple Protections:

Charging Current: 0-50A adjustable

Different Batteries acceptable

Wide Range Application

“IR” MOSFET

Pure Sine Wave

Multifunction design AVR, UPS



SC-V 10KVA/8000W power inverter with USB function



 SC-V 10KVA/8000W power inverter with USB function





Product Description

  SC-V 10KVA/8000W power inverter with USB function



Other parameters of this series hybrid inverters for your ref.



Parameter
Series 1000VA 1500VA 2000VA 3000VA 4000VA 5000VA 6000VA 8000VA 10KVA
Rated Output Power 800W 1200W 1600W 2400W 3200W 4000W 4800W 6400W 8000W
Battery Voltage (DC) 12V/24V (Optional) 24V/48V (Optional) 48V/96V/192V (Optional)
General Parameter
Working Mode    (Setting) 1 Utility first (AC first) battery standby mode
2 Sleep mode,no utility,load's power higher than 5% of inverter rated output power. it will start to work automatically
3 Battery first (DC first) utility standby UPS mode
AC Input Voltage 220V ± 35% or 110V ± 35% (Optional)
Frequency 50Hz ± 3% or 60Hz ± 3% (Optional)
AC Output Voltage 220V ± 3% or 230V ± 3% or 110V ± 3% (Optional)
Frequency 50Hz ± 0.5 or 60Hz ± 0.5 (Optional)
Battery Charge AC Charge Current 1 - 50A adjustable
Display Information Input voltage, output voltage, output frequency, battery capacity, load condition, status information
Overload Protection >120% 1min, >130% 10s
Power Consumption Sleep Mode 1 - 6W
Normal Mode ≤1A
Conversion Efficiency 85% - 92%
Transfer Time <4ms (AC to DC / DC to AC)
Protection Overload, Short-circuit, High-voltage input, Low-voltage input, Overheat
Size: W*D*H (mm) 418*208*193.2  458*210*216  542.5*294*240.7
Net Weight (kgs) 11 13 14 15 17 20 34 39 43
The specification is only for reference. Subject to change without prior notice.



We got ISO9001 and CE certificates
SC-V 10KVA/8000W power inverter with USB function

Packaging & Shipping

  Cartons or wooden box, Or according to customer's need.

SC-V 10KVA/8000W power inverter with USB functionSC-V 10KVA/8000W power inverter with USB function



Our Services



  • Software upgrade service;

  • Free provides of spare parts within warranty

  • Online/Onsite training of installation, debugging, maintenance, reparation, etc.

  • Consolidation Service( only peripherals of our products)

  • Promotion Support



Company Information



 SC-V 10KVA/8000W power inverter with USB function





FAQ

 How does our product work ?



 SC-V 10KVA/8000W power inverter with USB function



Off Grid systems - Reducing utility costs


My utility bills are very high, and I want to switch to off-grid solar power to save money, how much money can I save?

You likely will not save any money. A solar and off-grid electrical system designed to be large enough to off-set high utility bills would be prohibitively expensive. Reducing your energy consumption is the single most effective way to lower utility bills. The typical off-grid home uses well under 10 kW/h of power per day. If your consumption can be reduced to that level you are a good candidate for an independent electrical system.



Q1 : What is you advantages?

  • We are professional inverter manufacturer for many years
  • Excellent workers and skilled engineers
  • We make great efforts to provide every customer high quality, reasonable price and excellent service.
  • We can guarantee to send the goods on time. And also accept any transportation ways that you require

Q2 : How do you control the production quality

  • For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard
  • In production  we have 4 times function testing all of our products with 100% burn-in testing
  • 100% QC testing before delivery



Q3 : Do you accept OEM/ODM?

  •  ODM&OEM are warmly welcomed !!!


Q4 : what’s your payment?

  • Payment terms of T/T, L/C at sight, Western Union, PayPal
  • Samples and trial order accept  PayPal, T/T & Western Union. normal order accept T/T & Western Union
  • 30% ADVANCE DEPOSIT after buyer's confirmed payment, the balance should be paid before shipping when goods are ready.
