SC-MH 240V 30A solar system home price solar water pump for agriculture
GENERAL DESCRIPTION:
SC-MH DC240V high-end series ranked the first among MPPT solar charge controllers. Advantages include high conversion efficiency, system automatic recognition, wide range of PV input, professional PC monitoring software etc.. This is the most classical version of MPPT solar charge controller.
PRODUCT FEATURES
____________________________________________________________________________________________
|
Max PV Input DC 430V |
| SCP MPPT SOLAR CHAGE CONTROLLER |
| Peak Efficiency Up to 99% |
| Maximum power point track |
|
Charging Method MPPT |
|
Software Online-Upgrade |
| CE Approved PV CHARGER |
| Unlimited PARALLEL |
BATTERY OPTIONS
_____________________________________________________________________________________________
+ |
+ | + | + | |||||
Sealed Lead |
GEL Battery | Vented Battery |
Ni-Cd Battery |
|||||
- |
- | - |
- |
(Compatible with other types of batteries as well!!! )
PRODUCT PARAMETERS
_____________________________________________________________________________________________
SC-MH MPPT Solar Charge Controller DC240V High-End Series | |||||||
SC-MH (DC240V) |
20A | 25A | 30A | 40A | 50A | 60A | |
Charge Mode |
MPPT (maximum power point tracking) |
||||||
|
Charge Method
|
3 stages: constant current, constant voltage, floating charge |
||||||
MPPT Efficiency |
240V System |
≥96.5%,≤99% |
|||||
INPUT CHARACTERISTICS | |||||||
MPPT working voltage range |
240V System |
DC300V~DC380V |
|||||
Max. PV Voltage |
240V System |
DC430V |
|||||
Max. PV Power |
240V System |
5520W |
6900W |
8200W |
11040W |
13800W |
16560W |
CHARGE CHARACTERISTICS | |||||||
Battery Type (Default Gel Battery) |
240V System |
Sealed lead acid, Vented, Gel, NiCd battery |
|||||
Rated Input Current |
240V System |
20A |
25A |
30A |
40A |
50A |
60A |
MECHANICAL CHARACTERISTICS | |||||||
Size D x W x H(mm) |
155*308*86 |
||||||
N.W.(kgs) |
4 |
||||||
G.W.(kgs) |
4.5 |
||||||
The specification is only for reference, subject to change without without prior notice! | |||||||

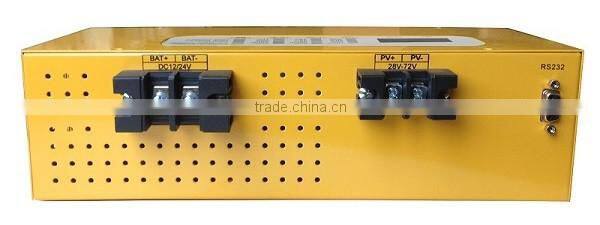

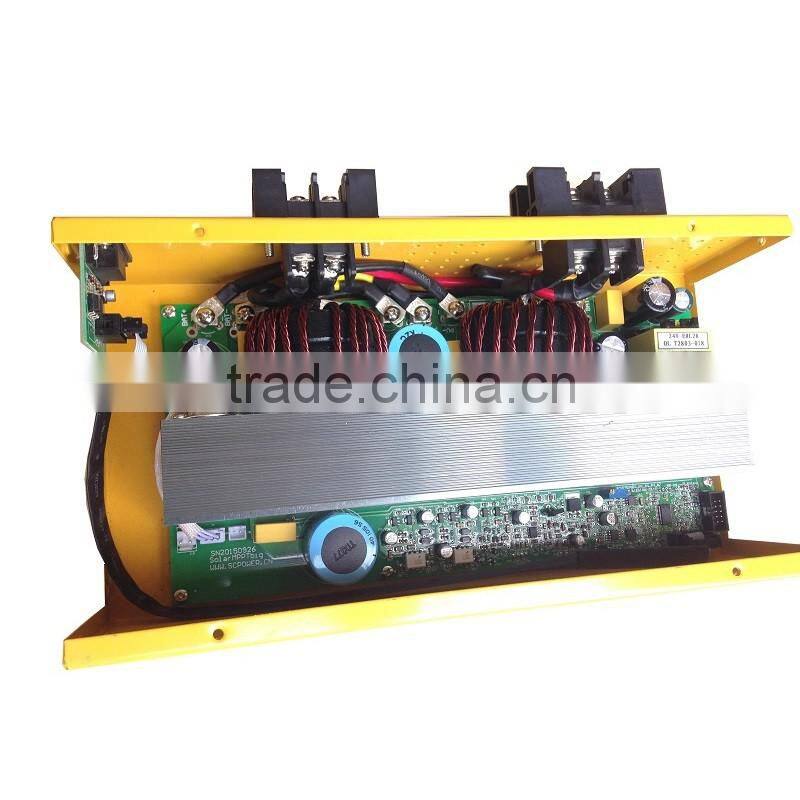

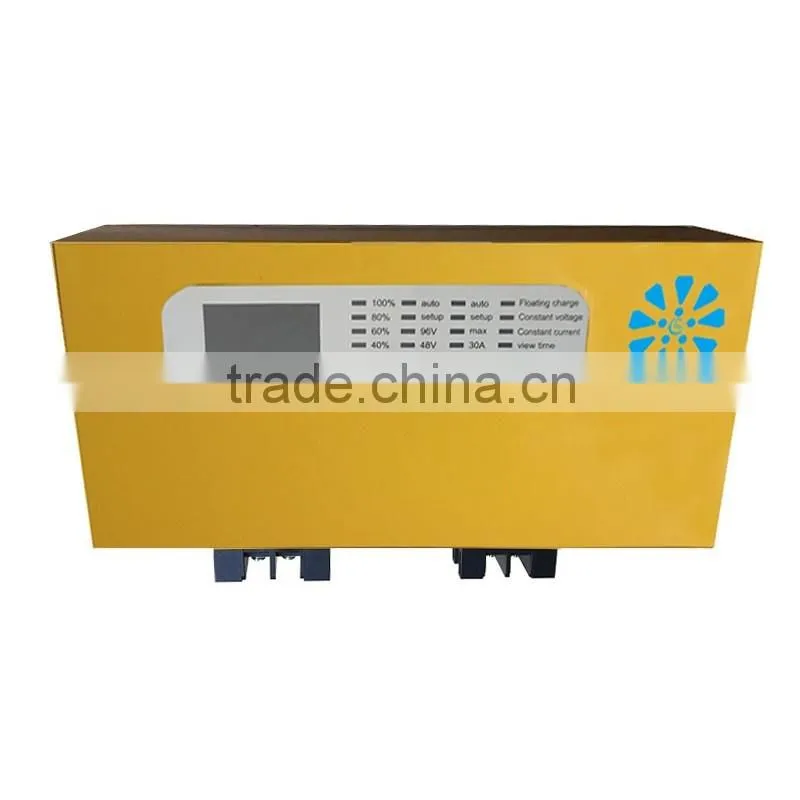

PRODUCT PHOTOS
___________________________________________________________________________________________________
CONTACT INFORMATION:
___________________________________________________________________________________________________
Responsible Person: Kevin Chan
WhatsApp: +86 1392 727 2408
Wechat: +86 1392 727 2408
QQ: 2355801987 (For online training)
Skype: live:exp8_1 ( if request a video call please call me at: 9:00am~12:00pm; 1:30pm~6:00pm GMT-8)
