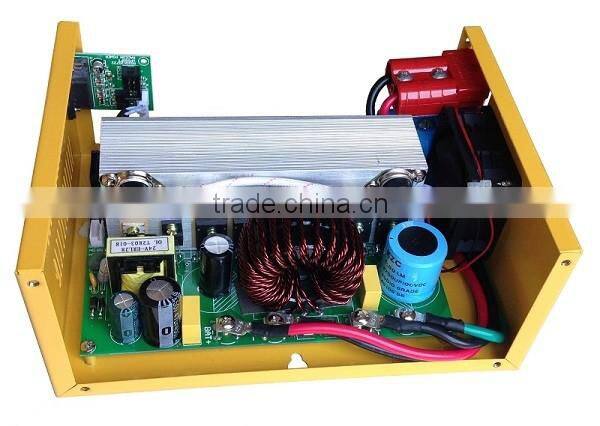

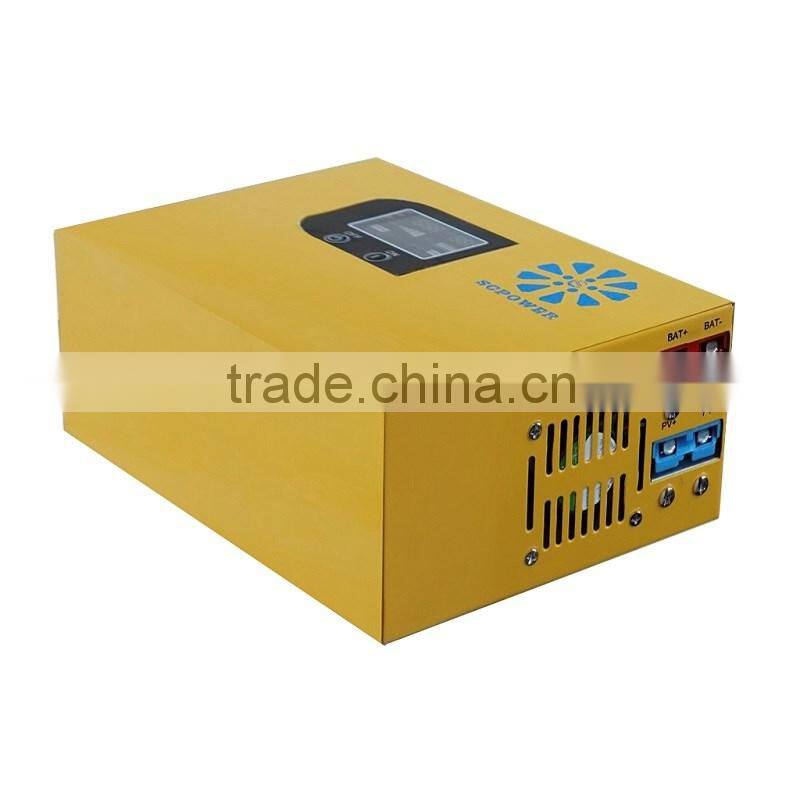

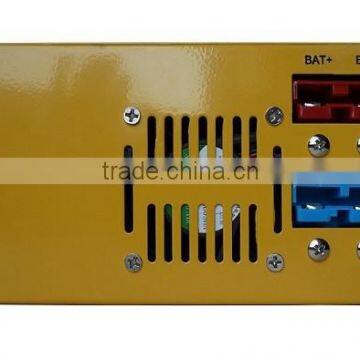

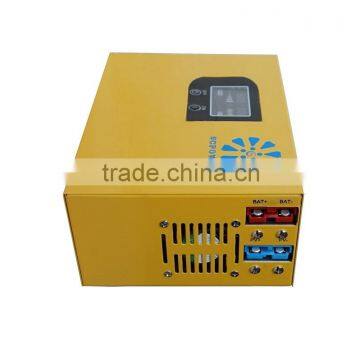

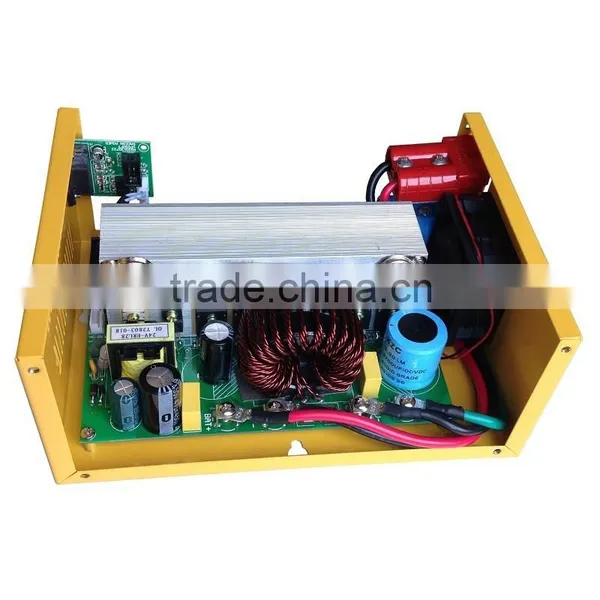

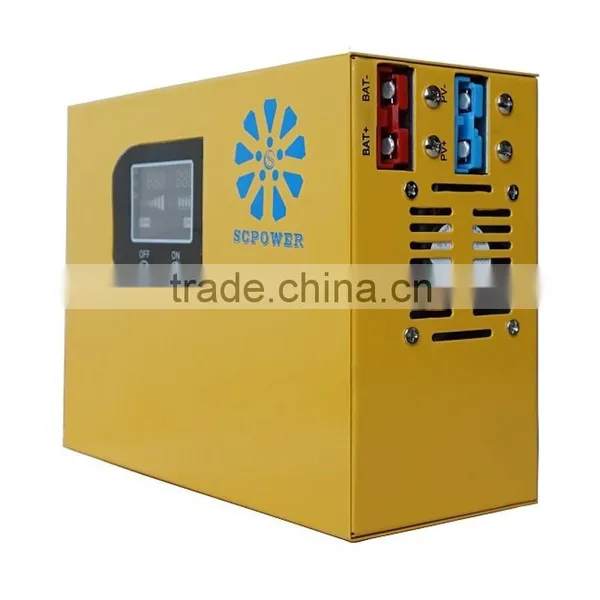

SC-MCA 20A mppt solar charge controller dc motor speed controller
GENERAL DESCRIPTION:
This SC-MCA MPPT (maximum power point tracking) solar charge controller is a smart solar controller with automatic recognition function, smart charging and discharge function, three stages charging function to protect battery. It can increase 30%-60% efficiency than traditional PWM controller. It supports many kinds of batteries. It also has RS232 communication function. It is a most cost effective MPPT solar charge controller currently.
Contact: Kevin Chan
W.A./Wechat: +86 1392 727 2408
QQ: 2355801987 (For online training)
Skype: live:exp8_1 (video call arrangement requested)
PRODUCT FEATURES
____________________________________________________________________________________________
| Max PV Input DC 170V | 12V/24V/36V/48V System | Peak Efficiency Up to 99% | ||||
| LCD/LED Monitor | Charging Method MPPT | RS232 Port | ||||
| Software Online-Upgrade | System AUTO-RECOGNITION | Unlimited PARALLEL | ||||
BATTERY OPTIONS
_____________________________________________________________________________________________
+ | + | + | + | |||||
Sealed Lead | GEL Battery | Vented Battery | Ni-Cd Battery | |||||
- | - | - | - | |||||
| Default | Manual Switch | Manual Switch | Manual Switch |
(Compatible with other types of batteries as well!!! )
PRODUCT PARAMETERS:
SC-MCA MPPT Solar Charge Controller Automatic Recognition Series | ||||||
SC-MCA Series | 15A | 20A | 25A | 30A | 40A | |
Charge Mode | MPPT (maximum power point tracking) | |||||
Charge Method | 3 stages: constant current, constant voltage, floating charge | |||||
System Type | 12V/24V/48V | Automatic recognition | ||||
MPPT Efficiency | 12V/24V/48V | ≥96.5% | ||||
INPUT CHARACTERISTICS | ||||||
MPPT working voltage range | 12V System | DC18V~DC72V | ||||
24V System | DC34V~DC72V | |||||
48V System | DC65V~DC144V | |||||
Low input voltage protection point | 12V System | DC16V | ||||
24V System | DC30V | |||||
48V System | DC60V | |||||
Low input voltage recovery point | 12V System | DC22V | ||||
24V System | DC34V | |||||
48V System | DC65V | |||||
High input voltage protection point | 12/24/48V System | DC90V/DC90V/DC180V | ||||
High input voltage recovery point | 12/24/48V System | DC85V/DC85V/DC170V | ||||
Maximum PV Power | 12V System (W) | 213W | 284W | 355W | 426W | 568W |
24V System (W) | 426W | 568W | 710W | 852W | 1136W | |
48V System (W) | 852W | 1136W | 1420W | 1704W | 2272W | |
CHARGE CHARACTERISTICS | ||||||
Battery Type (Default Gel Battery) | 12/24/48V System | Sealed lead acid, Vented, Gel, NiCd battery | ||||
Rated Input Current | 12/24/48V System | 15A | 20A | 25A | 30A | 40A |
OUTPUT DISCHARGE CHARACTERISTICS | ||||||
Rated Output Current | 40A | |||||
The Output Control | On mode, Off mode | |||||
Output Control Set Mode | Controller button or PC software | |||||
MECHANICAL CHARACTERISTICS | ||||||
PC (communication port) | RS232 | |||||
Size D x W x H(mm) | 220*161*91 | |||||
N.W.(kgs) | 2.5 | 3 | ||||
G.W.(kgs) | 3 | 3.5 | ||||
The specification is only for reference, subject to change without without prior notice! | ||||||
