Silicone Based Led Potting Compound For LED Display
Two parts potting adhesive HM-312
Introduction
312 is two parts condensed type silicone sealant, cured under room temperature, release alcohol, no corrosion to PC,PP,ABS,PVC and copper wire. Good adhesion for most electronic material(PP and PE exception)
Properties
1. Low viscosity, good flowability, suitable for mould pressing of complex electronic element
2. After cured, will be soft rubber-like material, excellent shock resistance
3. Heat resistance, moisture resistance, and excellent cold resistance, can extend service life of electronic elements.
Application

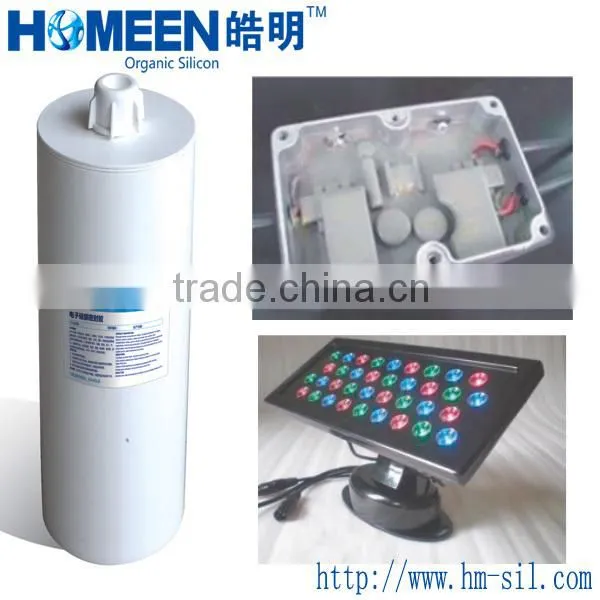

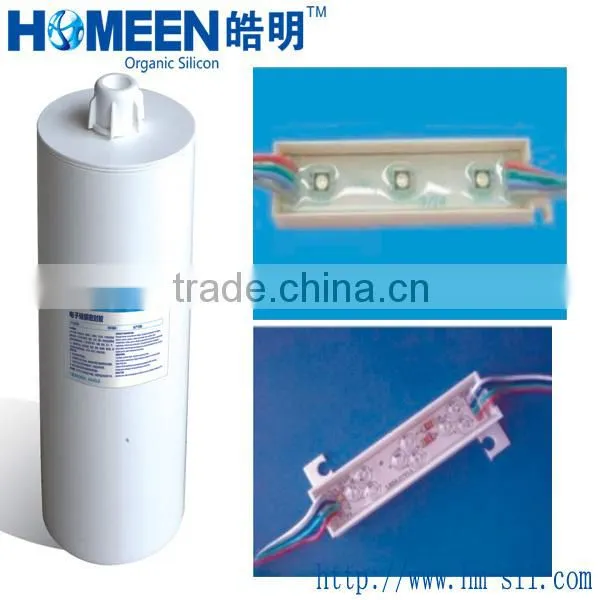

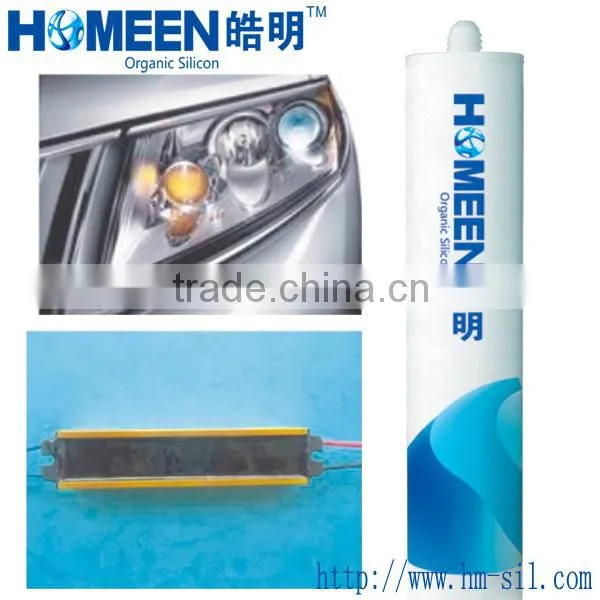

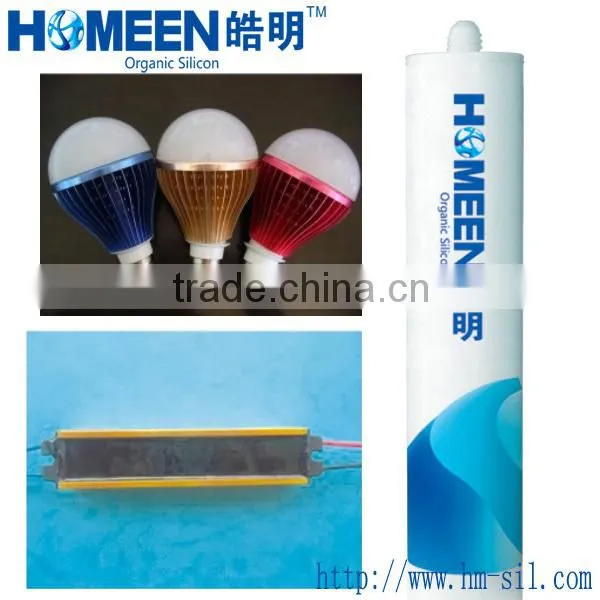

Used as potting adhesive for power module, electronic element deep layer, LED backlight,HID lamp,LED display,etc.
Parameter
Before mixed (25°C,65%RH) | |||
components |
312 (A) |
312 (B) |
312(C) matting agent |
color |
black |
Translucence liquid |
black |
viscosity (cP) |
2500~4000 |
25 |
300~500 |
Specific gravity (g/ CM3) |
1.15~1.25 |
0.97 |
0.80 |
After mixed(25°C,65%RH) | |||
Mixed ratio |
A:B :C= 100:10:1 |
||
color |
black |
||
viscosity(CP) |
1500~2500 |
||
Working time (min) |
30~60 |
||
Cured time (h) |
24 |
||
Cured after 7 d,25°C,65%RH | |||
hardness (HSA ) |
15-30 |
||
Dielectric strength(KV/.mm) |
≥15 |
||
volume resistivity;(Ω·cm) |
1.0×1015 |
||
dielectric constant(1.2MHz) |
≥15 |
||
Max tensile strength(Kgf/cm2) |
2.8 |
||
elongation at break ( % ) |
≥200 |
||
We can adjust the viscosity,color,cured time according to your demand.
Shelf life
·packaging: A:20kg B:2kg c:0.2kg/barrel
shelf life:should be stored in shady and cool place, under 30°C. Our sealant has a usable life of 12 months when stay unopened.
Usage
1. Mixed A and B parts with ratio 10:1(weight or volume),after completely mixed, use vacuum
Pump to release the bubble, be careful ,the total amount should be less than 1/3 of the container, in case of any overflow. Also can release the bubble naturally by standing the sealant still for about 20~30 mins under 25°C
2. Try to pour the sealant to the potting position as soon as possible avoid any air invade. Under room temperature, with 24H,this sealant can be cured and become elastomer,low temperature and mixed ratio will have great effect to curing time.
Remark
1. Completely cured sealant is non-toxic, but do not directly contact with eyes or kids. Should keep ventilate when applying. We suggest that before applying, customer had better have a test to make sure our sealant can highly meet your demand.
2. Normally,the mixed ratio between A and B is 10:1,but we can adjust the mixed ratio to change the curing time. We don’t suggest using heating to accelerate the curing process,in case of there will be some hole or bubble on surface, which have some bad effect on sealability.
3. Thickness of potting, better less than 50mm.Normally, thickness less than 20mm,the sealant can be release the bubble naturally. But if the potting position is very thick, better use vacuum pump, under 700mmHg,at least 5 mins to get rid of the bubble.
4. Before mixed, completely mixing each component separately.
5.If want matting ,could add the C(matting agent),normally the matting will appear 24~48h of potting. Under higher temperature, the matting will appear earlier, but do not make it over 50°C
Storage
Our silicon encapsulates should be stored at -20℃~27℃,kept containers tightly closed and head or air space minimized. Shelf life is 9 months after the date of manufacture.
Remark
Product of complete solidification is in noxious. But keep out of children’s reach and avoid touching with eyes before solidifying, work in ventilated place. And due to work environment and condition is varying, we recommend that test before in service.
1. What are the normal package ?
100 ml /300 ml /2600 ml /18.9 L for one part silicone sealant
1 kg /tin for heat sink compound
20 kg / barrel for two parts potting compound
2. Normal application temperature ?
Normally it's -50C - +180C ,depends on specific item .
3. Does your silicone sealant corrode metal and plastic ?
No, it doesn't .All of our silicone sealant are neutral .
4. What kind of silicone sealant are you selling ?
We are selling neutral silicone sealant for LED ,automobile ,Solar PV ,consumer electronics ,craft ,etc
5. Are your silicone sealant Eco-friendly ?
All of our silicone sealants are Eco-friendly ,they have gone through RoHS, REACH tests every year .Some have UL certificates .
6.What is the Shelf life of your silicone sealant
When stay unopened, shelf life is six months from the date of manufacture, keep in cool and dry place (-20℃~27℃).
1. We have been in silicone sealant industry for more than 10 years
2. We have supplied our silicone sealant to many famous brands in and out of China ,which include Philips India ,Videocon ,Midea ,Galanz ,Nationstar ,FOXCONN ,etc .
3.Haoming provide comprehensive range of electronic silicone sealant ,which are widly used in LED ,Solar PV ,automobile ,consumer electronics ,etc .
4. We have a professional R&D team ,products have stable quality .
