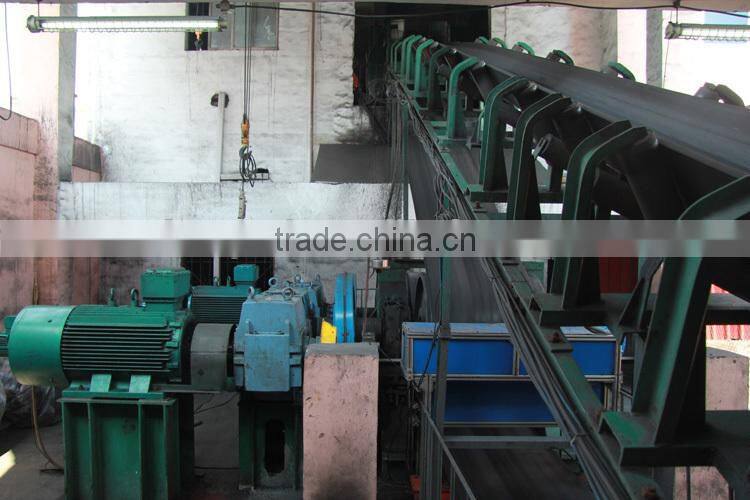

China supplier rubber belt conveyor machine

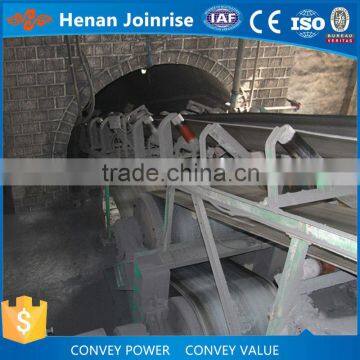

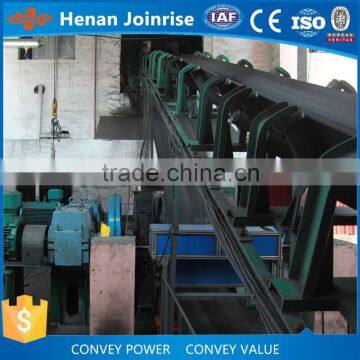

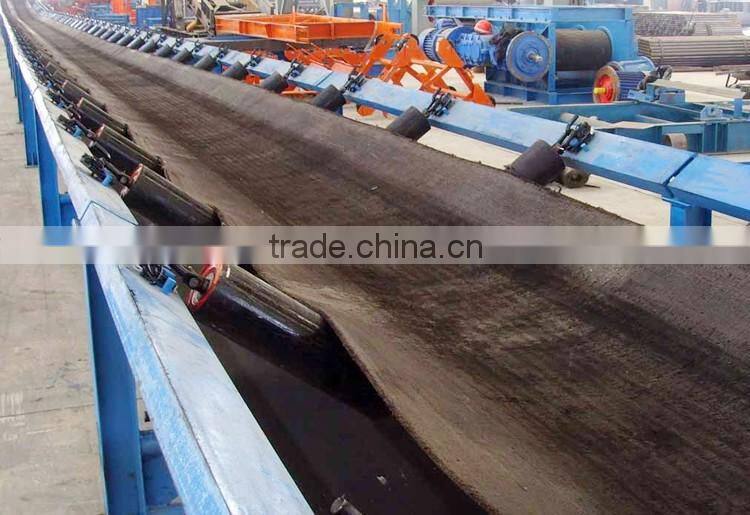

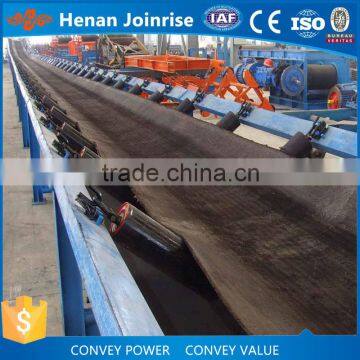

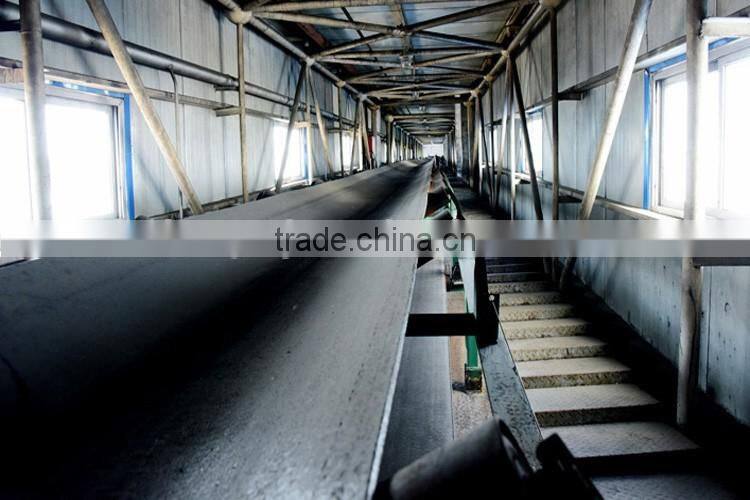

Belt conveyor can be used as transportation facility for bulk material and finished goods in such industries as coal, metallurgical, chemical, hydroelectric, cement, coking plant and port industries.
Methods of installation include horizontal, slanting, convex arc curve, concave arc curve as well as the concave-convex arc curve installation. We can desigh and produce the belt conveyors in accordance to your requirments.
|
|
|
|
| Type | TD 75 | DTII(IIA) | Underground | Stretchable | Inclined | Suspended |
| DTL | DTL | DTC | DSJ | DTG | ||
| Belt width (mm) | 500-1400 | 500-2000 | 650-1600 | 650-1600 | 800-1600 | 650-1200 |
| Length (m) | 50-3000 | 50-3000 | 50-3000 | 50-3000 | <1000 | |
| Belt speed (m/s) | 0.3-4 or customized | 0.8-5 or customized | depends | depends | depends | depends |
| Capacity (t/h) | 41-2996 | 69-4130 | depends | depends | <700 | 200-1200 |
| Angle ° | 0 | 0 | depends | 0 | 20-32.5 | <15 |
| Voltage (V) | 220-6000 | 220-6000 | 220-6000 | 220-6000 | 220-6000 | 220-6000 |
| Power (KW) | 1-180 or customized | 2.2-315 or customized | depends | 22-3*560 | 160-2*450 | 22-2*160 |
| or customized | or customized | or customized | ||||
| Motor and reducer | ABB/SEW/SIEMENS | ABB/SEW/SIEMENS | ABB/SEW/SIEMENS | ABB/SEW/SIEMENS | ABB/SEW/ SIEMENS | ABB/SEW/SIEMENS |
| Demension | customized | customized | customized | customized | customized | customized |
| Material | Stainless/carbon steel | Stainless/carbon steel | Stainless/carbon steel | Stainless/carbon steel | Stainless/carbon steel | Stainless/carbon steel |
| Certification | ISO | ISO | ISO | ISO | ISO | ISO |
| Colour | apple green customized | apple green customized | apple green customized | apple green customized | apple green customized | apple green customized |
| Emergency stop system | include | include | include | include | include | include |
| Belt type | Phoenix / Goodyear | Phoenix / Goodyear | Phoenix / Goodyear | Phoenix / Goodyear | Phoenix / Goodyear | Phoenix / Goodyear |
| Filter belt centreing device | include | include | include | include | include | include |
| Dleaner | rubber, alloy | rubber, alloy | rubber, alloy | rubber, alloy | rubber, alloy | rubber, alloy |

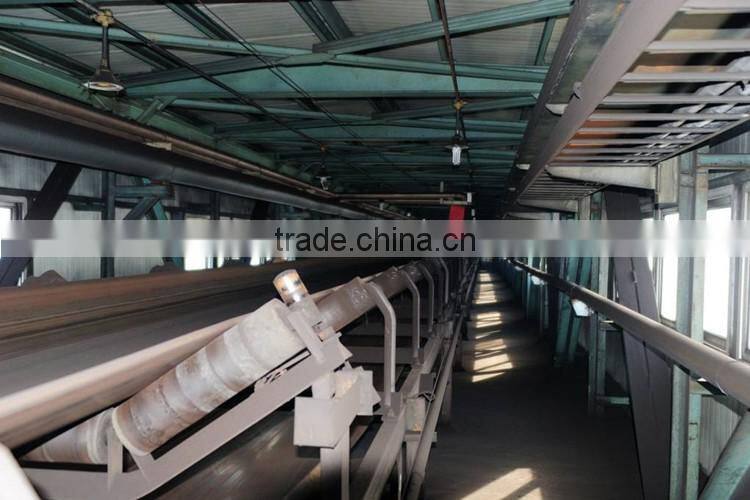

Conveyor roller/idler:
Return Roller, Carrying Roller, Buffer Roller, Adjusting Roller, Garland Roller, Cleaning Roller, Troughing Roller and Spiral Roller.

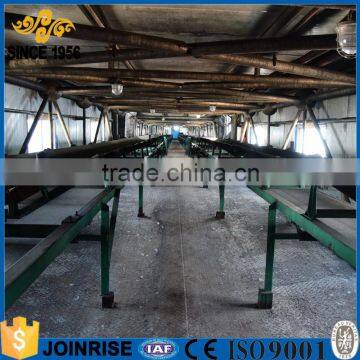

H-frame I-type(landing leg) AND Intermediate Frame:
It is part of the belt conveyor,welded by angle iron(U-steel),baseboard, pedestal,steel tube, shaped like an H. This part is used for supporting the intermediate frame and carrying the total weight of rubber belt and material. Normally, H-frame I-type and H-frame Ⅱ-type are used in rotation.
Intermediate frame is part of belt conveyor, used for installing cross beam of idler and the entire idler.Generally made of box iron or angle steel.

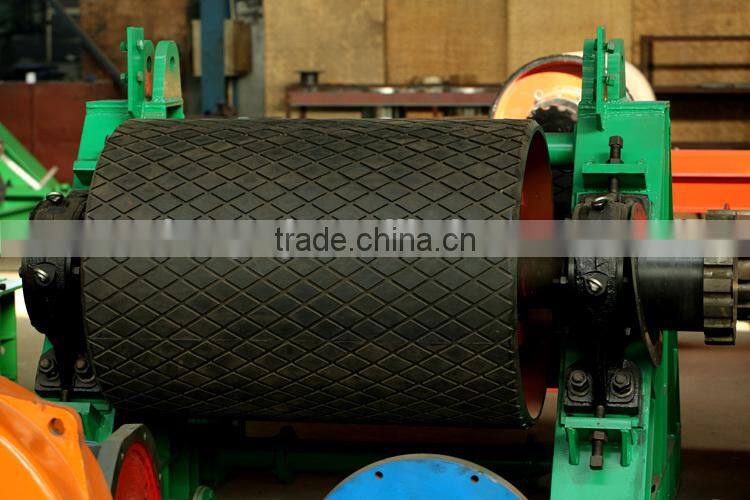

Conveyor durm/pulley:
Redirection Conveyor Drum, Driving Drum
Sweeper:
It is a utensil used specially for cleaning the stickum on conveyor belt. The material carried by belt conveyor often contains stickum, such as coal slime, coal ash, some of which are easy to stick to the surface of belt conveyor and not easy to be removed when unloading. On such occasions, the stickum may enter the shell of the idler and cause damage to it.It also may cause deviation and abrasion of belt conveyor, thus leading to serious consequences. Therefore, the life span of idler and belt conveyor can be prolonged if swept throughly.
1.Henan Joinrise Mining Equipment Manufacture Co.,Ltd is a fixed-point production facility for the original China Coal Mining Machinery Industrial Department.
2.It is one of the first organizations to be awarded the national Safety Sign Approval Certification.
3.It has passed ISO9001 International Quality System Certification, acquired the Industrial Products Manufacturing License.
4.It is a professional manufacturer of belt conveyors and have boast a technical and engineering team with rich practical experience.
1.Are you a factory or trading company?
We are a factory. There is no link in between, so we can provide factory price with high quality products and save your time and money.
2. What is the material of your products?
Our products range: Conveyor Idler & Roller Idler & Roller Sets Conveyor Pulley Frame Conveyors.
Meantime, we can produce according to the customer’s requirement. Used in the steel industry, harbor, coal industry, power industry, cement industry, crusher industrial and more.
3. What’s the advantage compared to other suppliers?
Our Advantage:
(1)Low friction coefficient, waterproof, effective sealing system,
(2)High accurate steel pipes ensure the rollers with low vibration and noise.
(3) Multi-labyrinth seals achieve waterproof and dust proof.
(4)Adopt good bearing make sure the long lifetime, stable running and good quality.
(5)Stable running, good quality and attractive price.
