Specifications

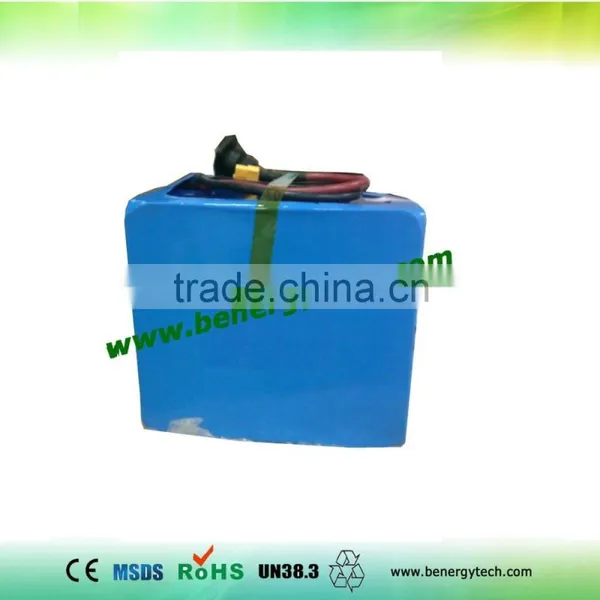

Lifepo4 battery pack 48V 20AH1. Extremely long life.
2. High discharge rate 3C continuous
3. 100% safe.
4. No need maintain

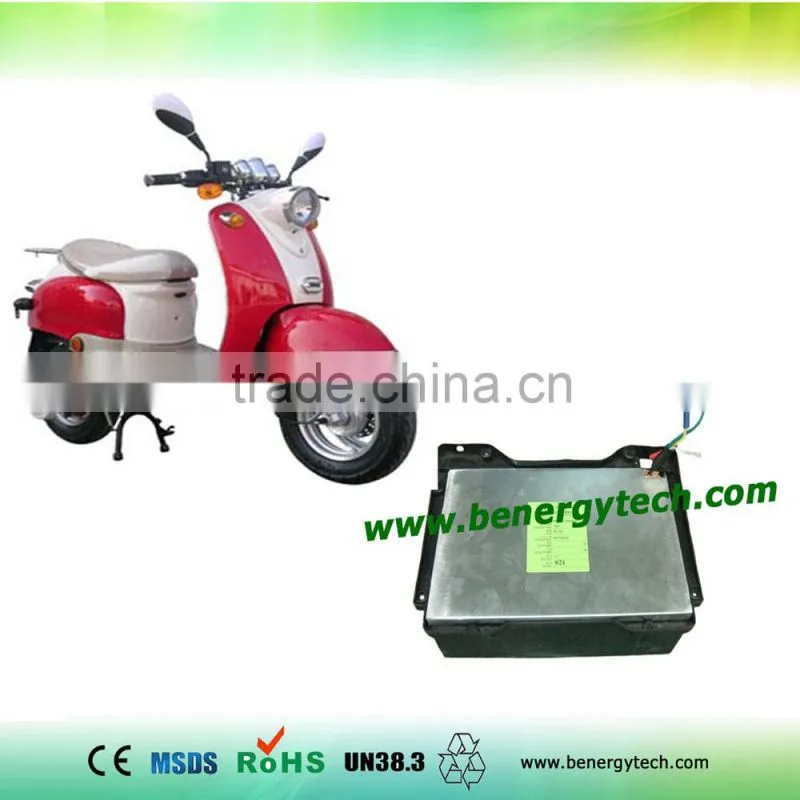

48V 20AH Lifepo4 Battery for electric scooter/motorcycle, 500W motor.
Benergy prismatic pouch cell is built to deliver high energy and power density combined. The BHK series prismatic cell demonstrates industry-leading abuse tolerance coupled with excellent life performance under the most rigorous duty cycles.
With high discharge rate, light weight and smaller size, Benergy battery pack is very suitable for different types electric scooters.
Product advantages:
1. Long cycle life. More than 2000 times under 80% DOD, 5 times life of Lead Acid and 2 times of NiMH.
2. High energy density. Compact in size and light in weight.
3. BMS/PCB/PCM matched. BMS manages to each cell for high reliability
4. Maintainance free. Don't need any maintainance during application.
5. Extremely safe: No explosion, no fire under collision, over charged or short circuit
6. High discharging and charging rate. 3C continuous discharge, 1C fast charging.
7. Low self-discharge rate. Less than 5% per month.
5. Wide operation temperature: -20 deg. C to 65 deg. C
Detail Specifications:
Nominal Voltage |
48V |
Rated Capacity |
20Ah |
Pack Dimension |
239*228*115(mm) |
Internal Impedance |
≤90mΩ |
Charge Voltage |
36.8V~58.4V |
Charge Current |
0.2C~0.5C(4A~10A) |
Rated Discharge Current |
1C(20A) |
Max.Discharge Current |
2.5C(50A) |
Charging Mode |
CC/CV |
Pack weight |
About 11kg |
Over Current Protection |
Customized design |
Cycle Life |
About 2000 Cycles |
Charge Temperature |
0-45 ℃ |
Discharge Temperature |
-20-55 ℃ |
Certificates |
CE,RoHS ,MSDS,UN38.3, ISO/TS14001 |
Range With One Charge |
80km (Motor 500W) |
|
The data on the table is only for reference | |
Why choose Benergy as your supplier?
1.Professional lithium-ion battery pack for over 5 years (Since 2009).
2.Experienced R&d team to support.
3.Only make high quality battery
4.Whole battery solution battery+ BMS solution.
5.Offer OEM service for customer small order.
6.Quickly action & respond.
7.Best sale service and good price.
8:All of us,working hard.
Advancing producing equipment:
Automatical producing, grading and testing process:
Fast delivery by various shipping ways:
Other Applications of Our Lifepo4 Battery:
EV |
Mini E-car, e-bikes, e-scooter, e-motorcycles, Road Sweeper, golf cart, electric wheelchair, startup car battery |
UPS |
Telecom Base station, Lighting, Small Doctor instruments, Stand by Power, Mining lighting, LED torch, Video, Heating garment, data acquisition power, Electric water pump, Road side night warning indicator, laser sensor |
Power tools |
Electric lawn mower, electric drill, electric vacuum cleaner, Electrical tools |
Power storage system |
Solar system, Solar pv system, Solar LED street light,Tidal energy, Wind / solar energy, on & off grid solar system |
