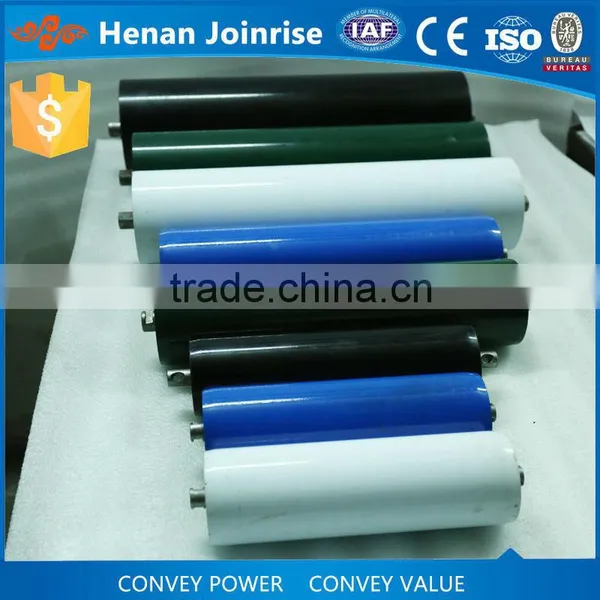

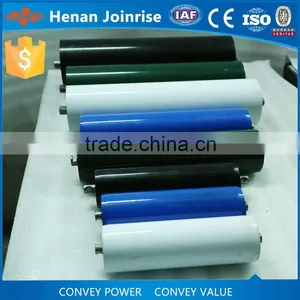

New water-proof conveyor steel pipe roller

New water-proof conveyor steel pipe roller

External diameter of idler: Φ89~Φ159   length: 600mm~1600mm

Roller introduction:

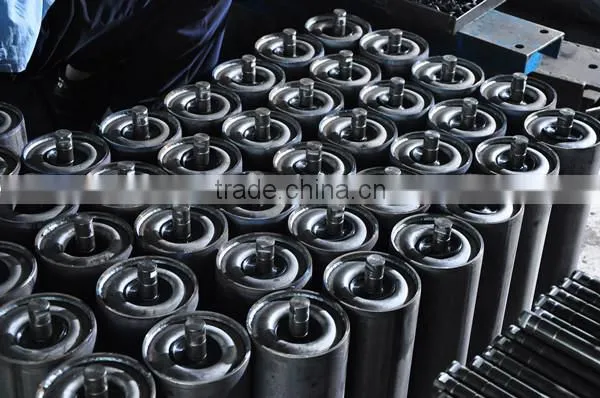

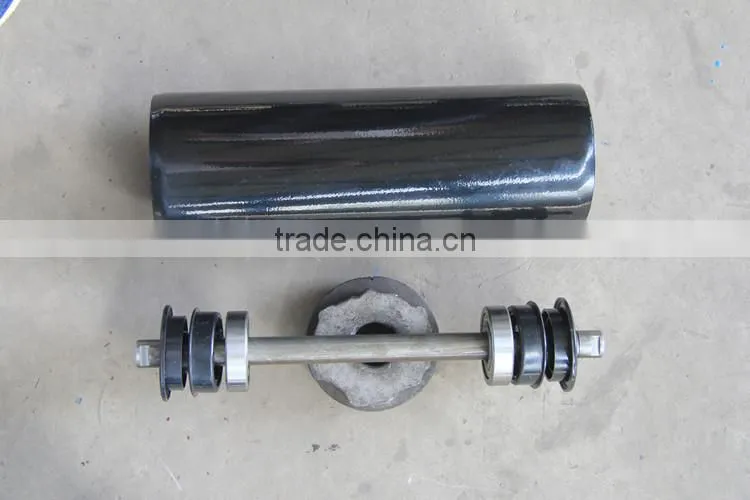

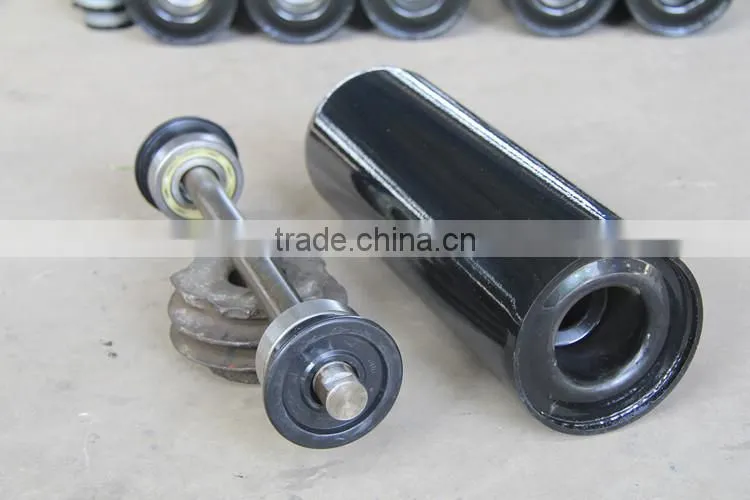

Our company has been attaching importance to the design and manufacturing process of carrier roller. The current carrier roller, having drawn on experience from German company PRECISMCECA and Japan IHI and American United Continental Holdings, is a good design of high quality and unique features. We use stamping bearing pedestal in producing bearing, seamed steel pipes and KA-series bearing with backlash and with waterproof and dustproof seals.

Pipe blanking is conducted by differential gear feed tube-cutting machine tool of domestic advanced level. Double-end bore is used in pipe procession. Work piece is chucked one time and lathe work is done to ensure the coaxiality of bore diameter of both ends and size and precision of the mould. Stamping bearing pedestal chooses domestic 08F or 08AL steel plate which experiences cold rolling and then recrystallization. There are 13 processes from blanking to moulding.

The assembling of carrier roller adopts technology of assembling before welding and is conducted on double-end welding machine. The welding of bearing pedestal and pipe is conducted at the same time. CO2 gas automatic protection welding is adopted.

Roller Major technical parameters:

Roller resistance to rotation (Non-contact seal)

The amount of radial run-out

Roller Axial load

Roller'S Axial float

Under the impact of axial load of 500N, he axial float figure≤1.2mm

Roller Dropping intensity

♦ After experiments of horizontal and vertical drop of carrier roller, the following requirements should be met:
♦ All components and welded joints cannot be damaged or taken apart;
♦ Axial displacement of roller carrier after falling should be not more than 1.2mm;
♦ The body and bearing of carrier roller should never be loosing;
♦ The resistance to rotation should be not more than 1.5 times of the figure stipulated in table 1.

Roller Sealability in water

After revolving at the rate of 1450t/min for 24 hours in water, the water inflow of the carrier roller with non-contact seal device is not more than 150g.

Roller Life span

When reinforced service life of carrier roller is converted into the actual service life,the time span is no less than 20,000h. The damage rate of carrier roller is no larger than 10%.

Roller Range of application

Our product is widely used in such surrounding as underground coal mine and that with severe open-air dust and high corrosivity. These places include mines,power plants, steel mills, stone factory, cement plant, coking plant, coal washing plant, saltworks, soda ash factory, chemical fertilizer plant and wharfs.

Henan Joinrise Mining Equipments Manufacture Co.,Ltd

Henan Joinrise Mining Equipments Manufacture Co.,Ltd is located in Wen County, the hometown of Si Ma and the birthplace of Chen Style Tai Chi. It is a national grade medium sized enterprise, a national ClassⅡmonitoring enterprise, and a fixed-point production facility for the original China Coal Mining Machinery Industrial Department. The company is one of the first organizations to be awarded the national Safety Sign Approval Certification. It has passed ISO9001 International Quality System Certification, acquired the Industrial Products Manufacturing License. The Joinrise Brand belt conveyor, as manufactured by the company, was rated as a famous brand-name product of Henan Province in 2011. More than 170 kinds of belt conveyors, of various specifications and models, have successfully passed the National Coal Mine Safety Certification standards procedure. The major products include TD75, DTII, DTII(A) type and various other kinds of coal mine belt conveyors what offer the functions of upward transport, a large dip angle of 32.5 degree, downward transport of 18 degree, bending within 12 degree and belt width from 500 to 2,000mm.
