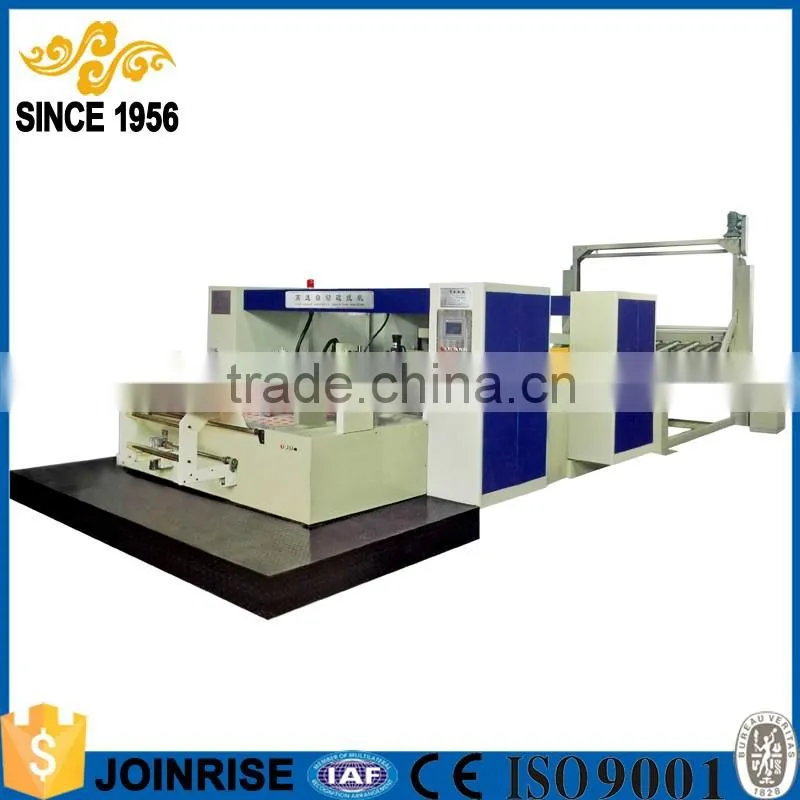

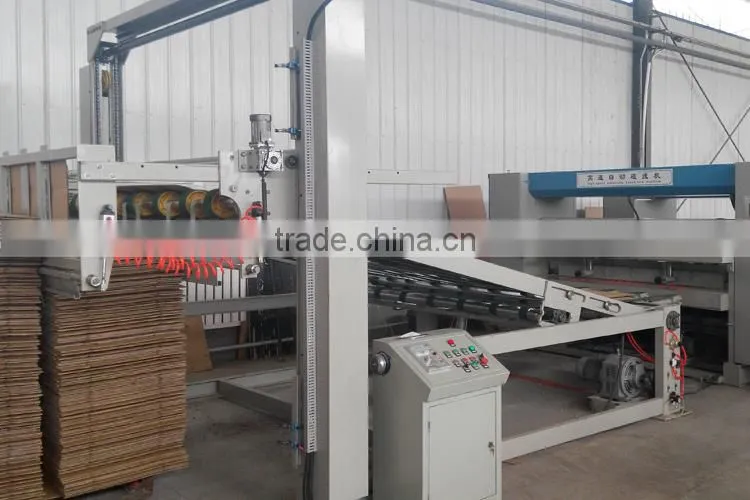

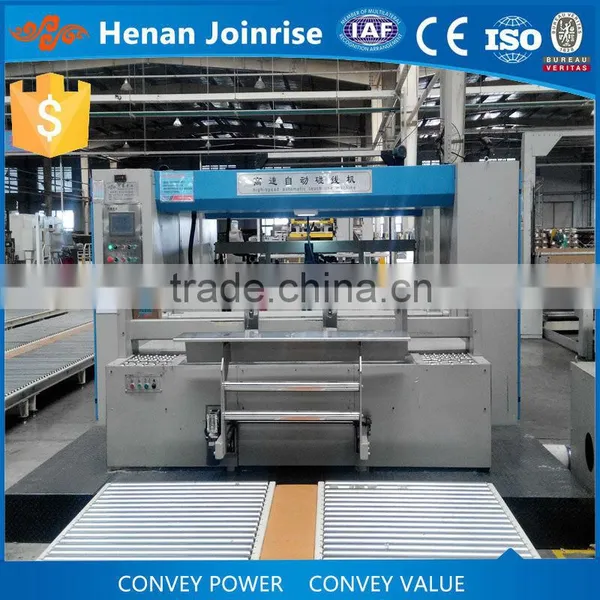

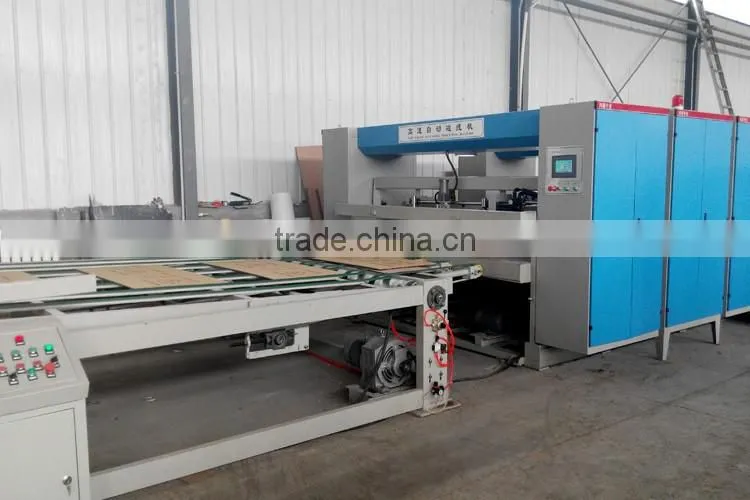

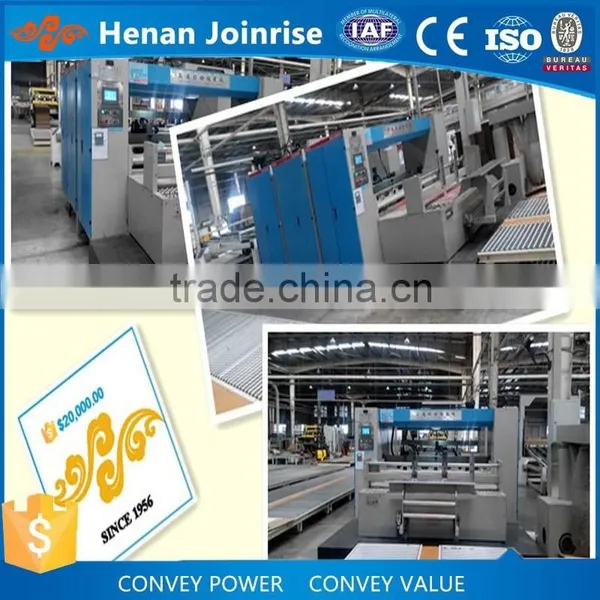

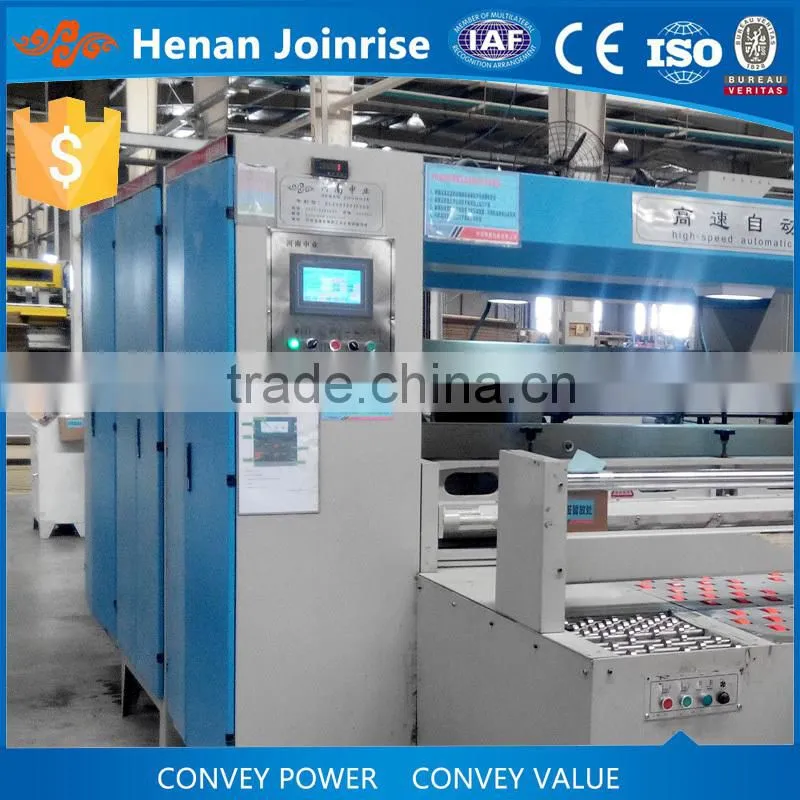

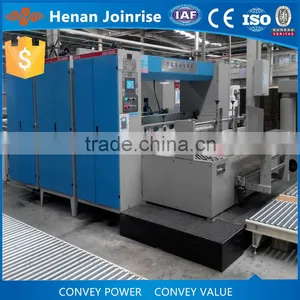

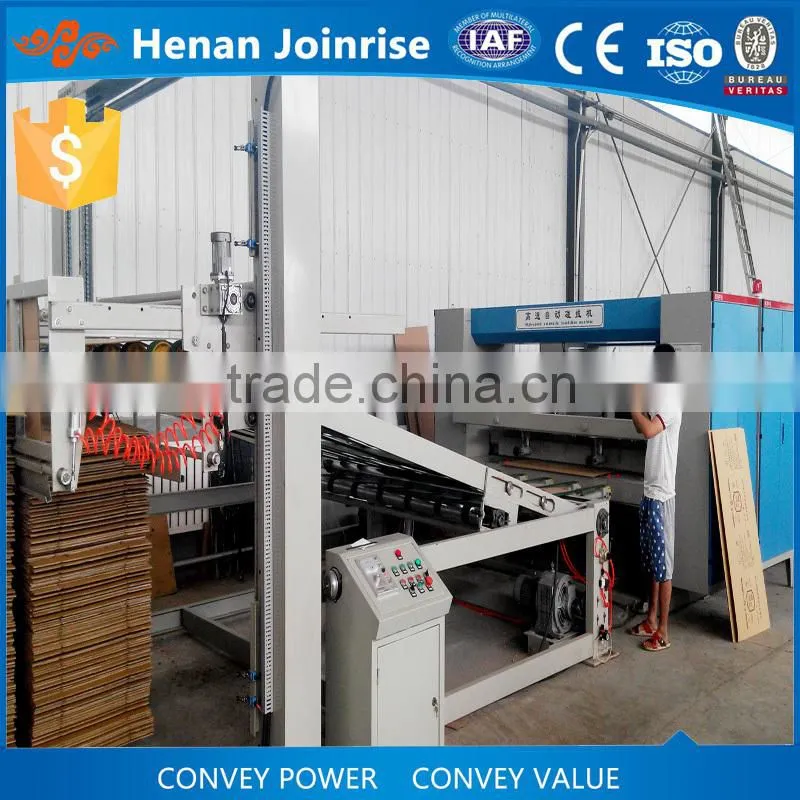

Carton machinery equipment touch line creasing machine
This machines is mainly used for impressing the joint line of the corrugated paperboard, which can make the carton easy to joint, all the drive joints of adopts the rolling bearing. It has light and quick transmission. It is easy to mend, and get a long service life, also the a elegant shape.
|
|
|
|
|
|
1.Highly automated-man-machine interface with touch screen, PLC SIEMENS controls;

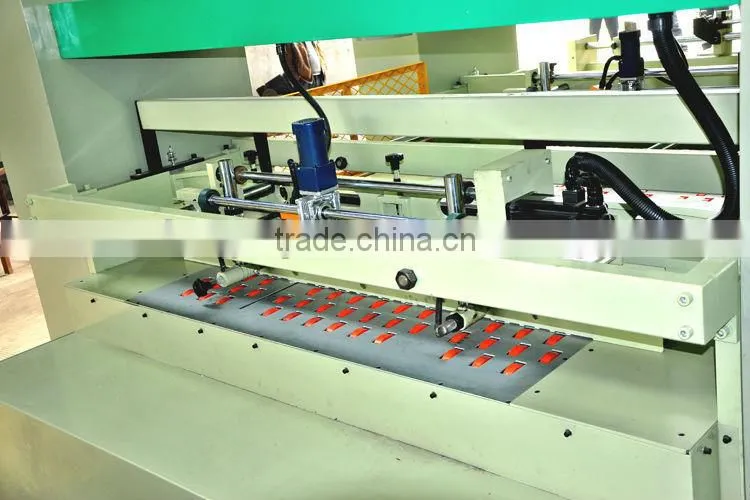

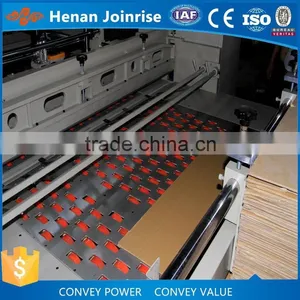

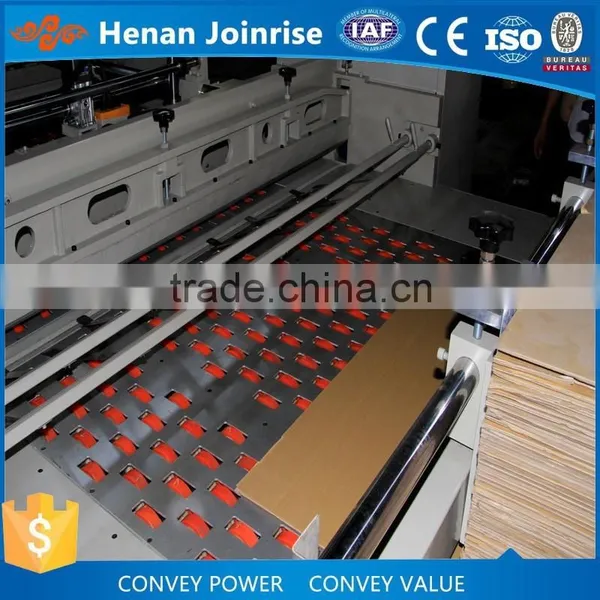

2.Sound performance-traditional concavo convex tools vertical pressing, inherited good forming quality, durable crease line, adjustable impression depth/size from the traditional standalone impressing machine. The frontal paper feeding allows no crush and good flatness, and a perfect solution to carton die cutting and pressing after notching;
3.High speed-economic speed of 80-100 pieces/min;

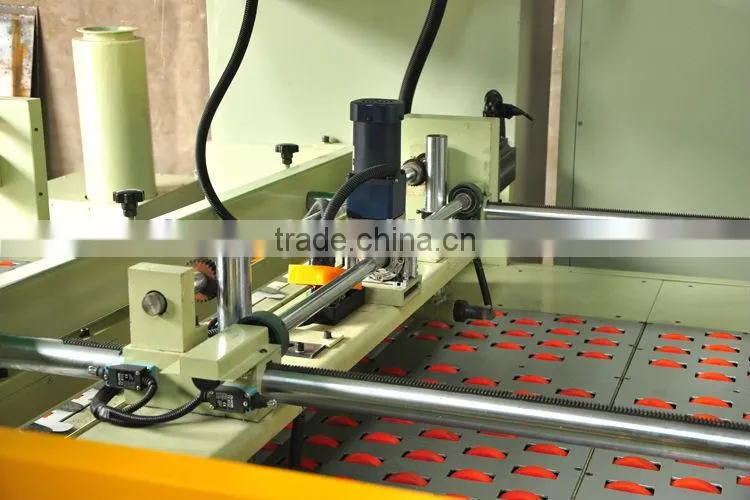

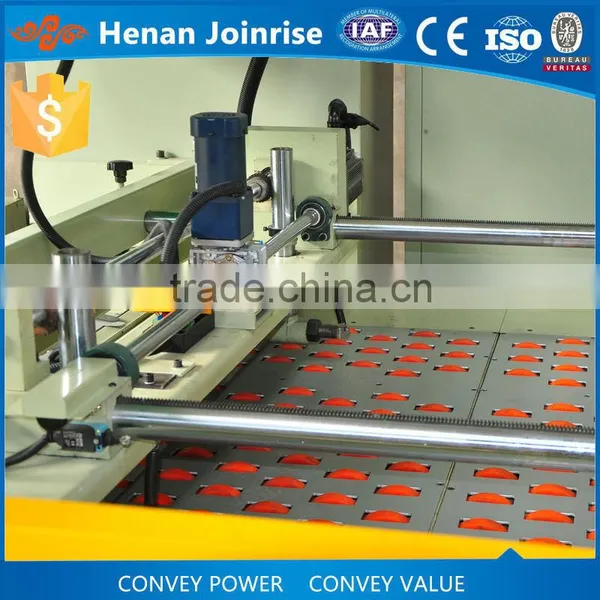

4.High accuracy-positioning section controlled by servo motor and photoelectric register with an accuracy of ±0.5mm.
|
Type (mm) |
Max. Size Paperboard (mm) |
Min. Size Paperboard (mm) |
Carton Height (mm) |
Cover Size (mm) |
Speed (piece/min) |
Accuracy |
Dimensions (mm) |
| 2000 | 800*1900 | 360*800 | 0-500 | 100-250 | 80-100 | ±0.5mm | 4000*2900*1900 |
| 2200 | 1100*2100 | 360*800 | 0-500 | 100-300 | 80-100 | ±0.5mm | 4000*3100*1900 |
| 2500 | 1250*2400 | 360*1000 | 0-800 | 100-350 | 70-90 | ±0.5mm | 5000*3400*1900 |

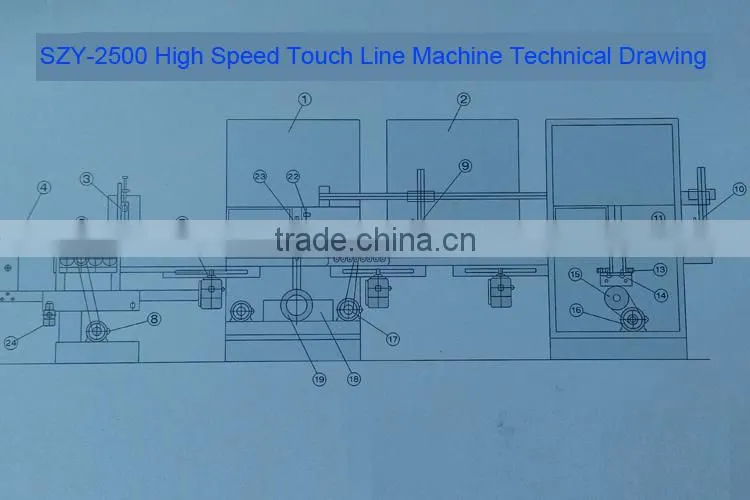

| 1.Shield | 2.Electrical Cabinet | 3.Feeding Positioning | 4.Feeding Backstop |
| 5.Feeding Suction Bellow | 6.Running Suction Bellow | 7.Running Suction Fan | 8.Feeding Running Motor |
| 9.First Pressing Positioning | 10.Second Pressing Positoning | 11.Pressing Upper Tool | 12.Pressing Lower Tool |
| 13.Pressing Lower Tool Adjustment Bolt | 14.Pressing Lower Tool Fixing Bolt | 15.Pressing Tool Main Drive Gear | 16.Pressing Motor |
| 17.Running Suction Fan Drive Motor | 18.Pressing Cam Lubricant Oil Tank | 19.Pressing Cam | 20.Pressing Cam Connecting Rod |
| 21.Pressing Adjustment Screw | 22.Pressing Upper Tool Positioning Sensor Switch | 23.Positioning Servo Sensor Switch | 24.Feeding Size Mobile Motor |
Henan Joinrise is located in Wen Country, the hometown of Sima and the birthplace of Chen Style Taichi. It is a national grade medium sized enterprise, a national ClassⅡmonitoring enterprise. The company is one of the first organizations to be awarded the national Safety Sign Approval Certification. It has passed. ISO9001 International Quality System Certification, acquired the Industrial Products Manufacturing License, and has been lauded as An enterprise which upholds its contracts and keeps its promises by Henan Province and Jiaozuo City.

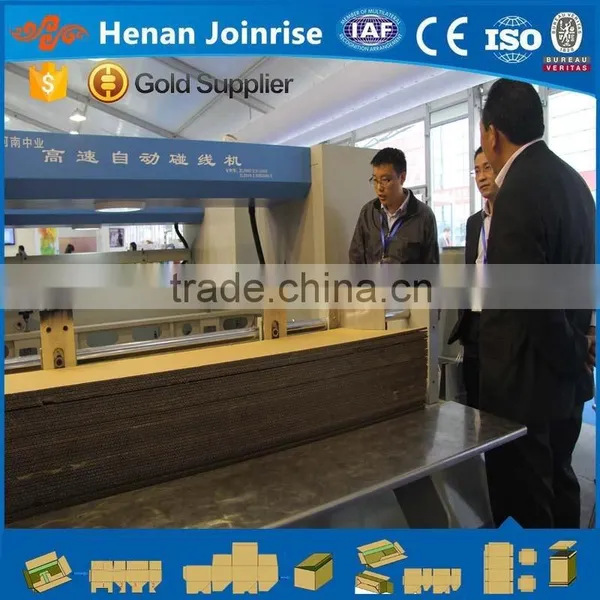

Trade Fair and Customer
1. What is the advantage of Joinrise compared to other suppliers?
Since the manufacturing team all possesses years of experience, Joinrise can provide creasing machine ,stacking machine and accessories with competitive price and superior service. We have professional sales team, production team, researching team.
2. What is the price policy of your company?
In our company, the price is different according to the quantity of your order, the more the cheaper. For more detailed information, you can contact our customer service representatives.
3. What are the features of the services your company offered?
Based on the wide product range, we offer the best One-Stop sourcing service and all-around after-sales service . We will definitely save you a lot of time and money. It will improve your efficiency significantly and be more economical.
4. What is the payment of your company?
Joinrise accepts the payment of T/T and L/C, 30%T/T in advance, 40% after shipment, the balance D/P,everything can be further discussed.
|
|
|
