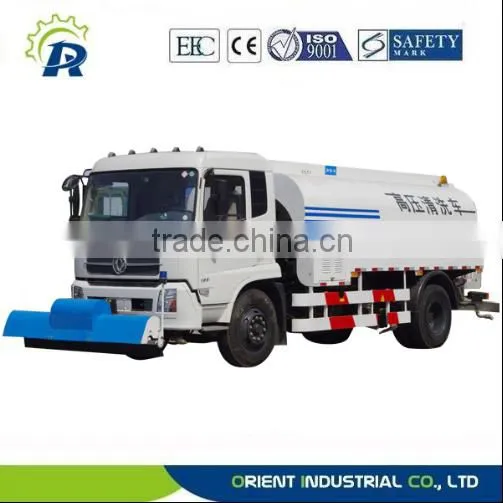

Dongfeng chassis high pressure road cleaning car cleaning width 2.5-3.5m with ISUZU engine Euro3 exhaust standard Dosngfeng chassis high pressure road cleaning car cleaning width 2.5-3.5m with ISUZU engine Euro3 exhaust standard
CHARACTERISTICS:
It adopts the Dongfeng chassis. It accords with Euro3 exhaust standard. The auxiliary engine is ISUZU engine, which drives high pressure water pump to spray water. Both high pressure water pump and nozzle are imported from famous factories. The low pressure water is driven by PTO of chassis. Every nozzle is controlled by pneumatic valve. The truck has the function of watering, garden insufflation, high pressure water cleaning, spraying water to reduce dust, adjusting air humidity, dredging sewer and emergency fire fighting etc. It has the function of water sopping up, it is very convenient to add water. The truck is widely used in high way and environmental departments.
PARAMETERS:
Item |
OR5167GQX |
|
Dimension(LWH) (mm) |
8920*2495*2970 |
|
Chassis model |
EQ1168KJ |
|
Engine model |
ISBE185 30(EuroⅢ) |
|
Engine power kw/r/min |
136/2500 |
|
Auxiliary engine model |
4JB1(6BTA5.9) |
|
Auxiliary engine power kw/r/min |
57/3600(118/2600) |
|
Cab configure |
Cool and warm air-conditioner |
|
Max speed Km/h |
90 |
|
|
High Pressure cleaning |
Cleaning speed (Km/h) |
0-20 |
Cleaning width (m) |
2.5-3.5 |
|
Cleaning angle (º) |
30ºto the left and to the right |
|
Max water pressure (MPa) |
10(6)(19) |
|
Cleaning flow capacity L/min |
150(90)(212) |
|
|
Low Pressure Watering |
Watering width (m) |
at least 16 |
Watering speed (Km/h) |
0-20 |
|
Water flow capacity L/min |
500-800 |
|
Spraying gun gunshot (m) |
38 |
|
Water tank volume (L) |
11000 |
|
Max Total weight (Kg) |
16000 |
|
Dongfeng chassis high pressure road cleaning car cleaning width 2.5-3.5m with ISUZU engine Euro3 exhaust standard Dongfeng chassis high pressure road cleaning car cleaning width 2.5-3.5m with ISUZU engine Euro3 exhaust standard chassis high pressure road washing truck with ISUZU engine very convenient to add wate

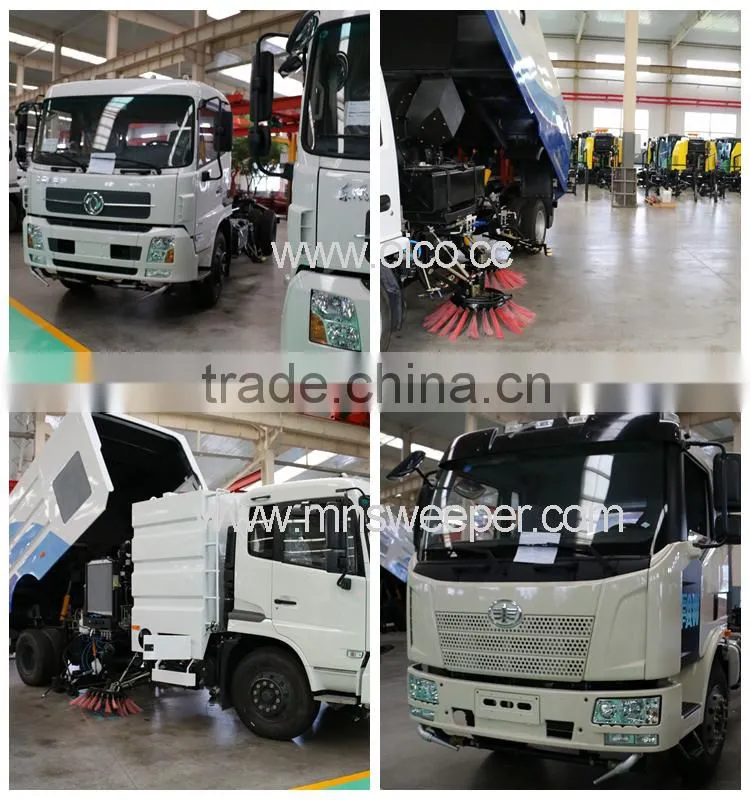

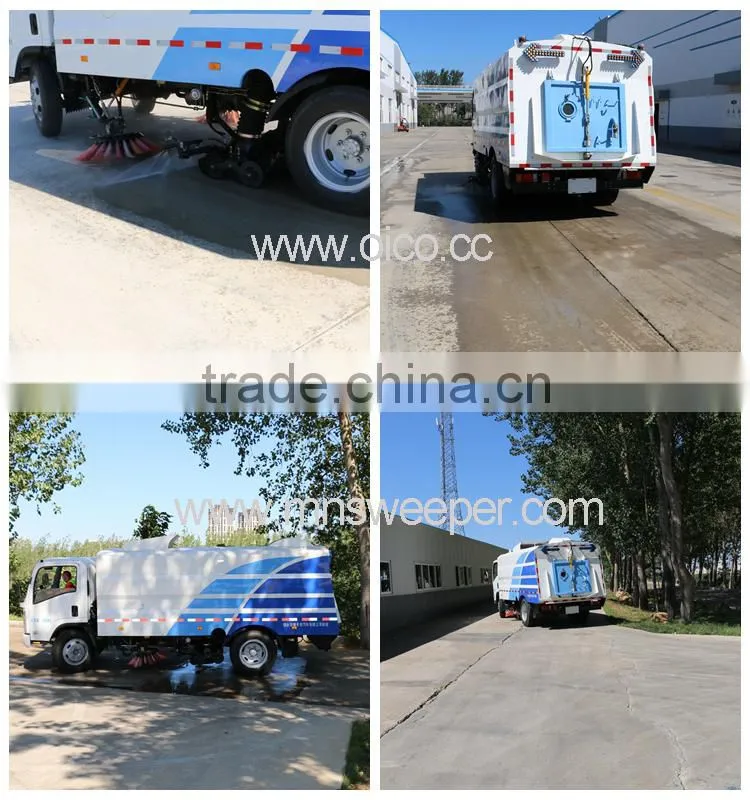

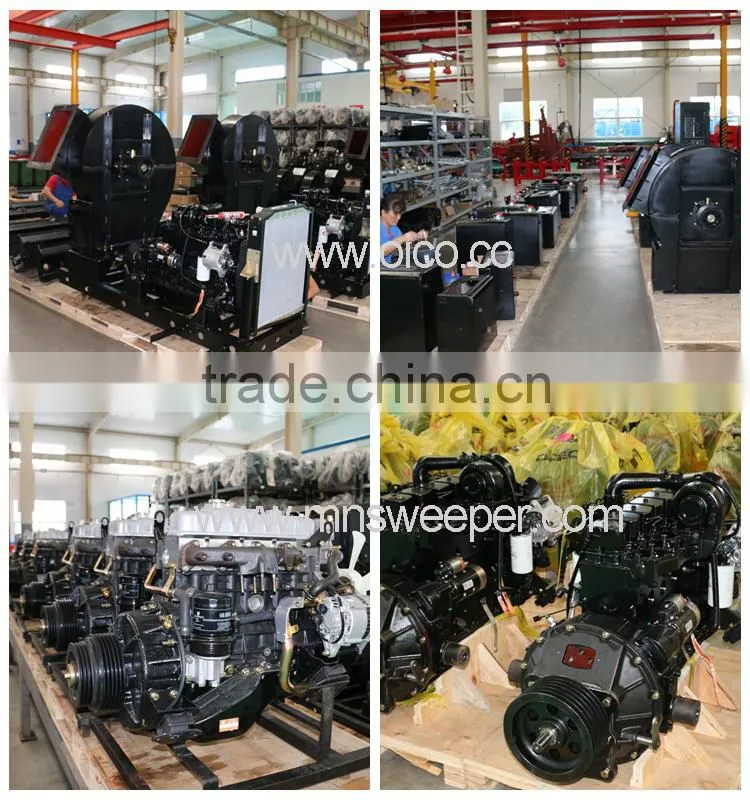

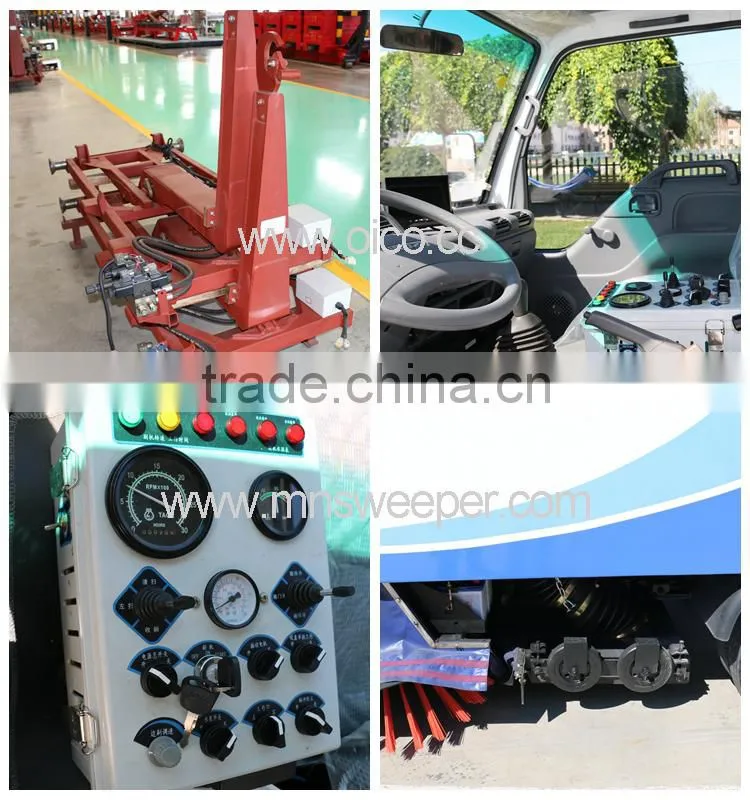

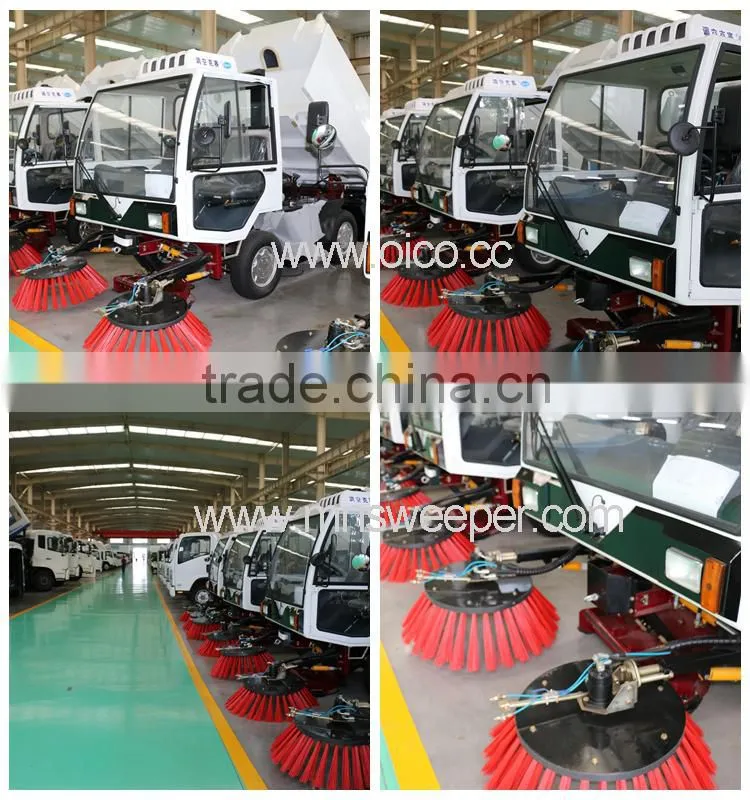

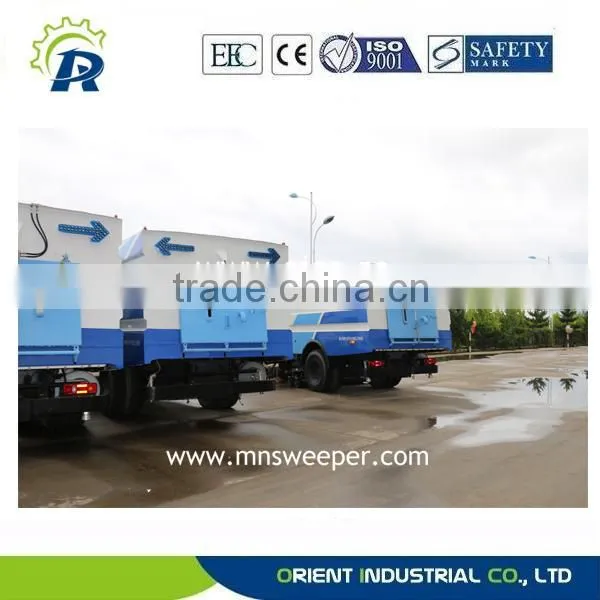

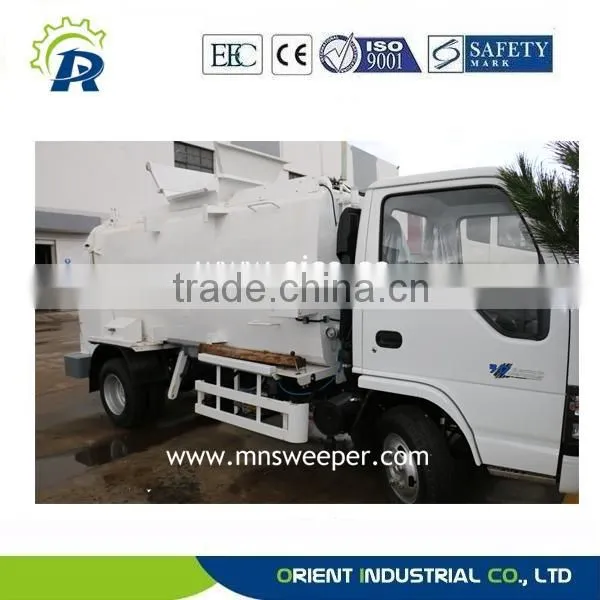

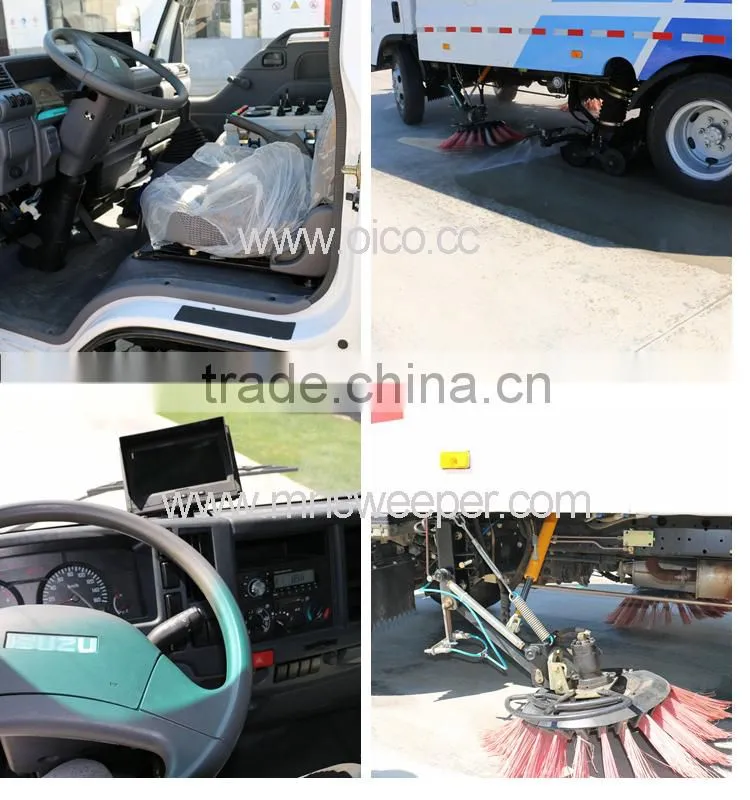

IMAGES:
1 Factory visiting available
2 Training available
3 Very good after sales service
4 OEM acceptable
5 Overseas service center available
6 15 Months Warranty guarantee
Orient Industrial Co., Ltd.
As an environmental protection facility & manufacturing enterprise with perfect integration of production, scientific research and sales, we O is an international general
trade agent of many well-known brands for Machinery.
We supply products from the most experienced factories all over the world,with approved certificates like ISO9001and CE,ect.
We always keep a very close relationship with those factories, so we can supply mixed products & shipping together if necessary.
Dongfeng chassis high pressure road cleaning car cleaning width 2.5-3.5m with ISUZU engine Euro3 exhaust standard Dongfeng chassis high pressure road cleaning car cleaning width 2.5-3.5m with ISUZU engine Euro3 exhaust standard
Dongfeng chassis high pressure road cleaning car cleaning width 2.5-3.5m with ISUZU engine Euro3 exhaust standard Dongfeng chassis high pressure road cleaning car cleaning width 2.5-3.5m with ISUZU engine Euro3 exhaust standard
