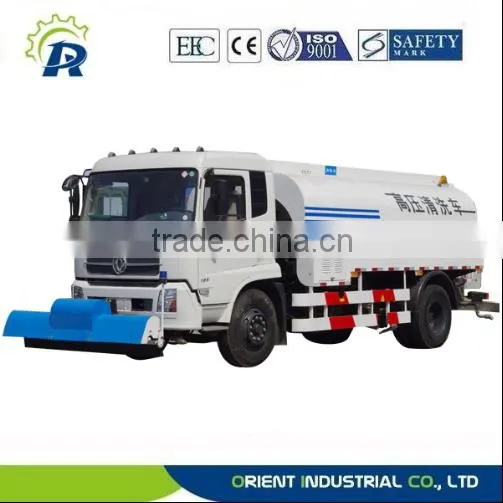

Dongfeng chassis high pressure road washing truck with ISUZU engine very convenient to add water
Dongfeng chassis high pressure road washing truck with ISUZU engine very convenient to add water
CHARACTERISTICS:
It adopts the Dongfeng chassis. It accords with Euro3 exhaust standard. The auxiliary engine is ISUZU engine, which drives high pressure water pump to spray water. Both high pressure water pump and nozzle are imported from famous factories. The low pressure water is driven by PTO of chassis. Every nozzle is controlled by pneumatic valve. The truck has the function of watering, garden insufflation, high pressure water cleaning, spraying water to reduce dust, adjusting air humidity, dredging sewer and emergency fire fighting etc. It has the function of water sopping up, it is very convenient to add water. The truck is widely used in high way and environmental departments.
PARAMETERS:
Item |
OR5167GQX |
|
Dimension(LWH) (mm) |
8920*2495*2970 |
|
Chassis model |
EQ1168KJ |
|
Engine model |
ISBE185 30(EuroⅢ) |
|
Engine power kw/r/min |
136/2500 |
|
Auxiliary engine model |
4JB1(6BTA5.9) |
|
Auxiliary engine power kw/r/min |
57/3600(118/2600) |
|
Cab configure |
Cool and warm air-conditioner |
|
Max speed Km/h |
90 |
|
|
High Pressure cleaning |
Cleaning speed (Km/h) |
0-20 |
Cleaning width (m) |
2.5-3.5 |
|
Cleaning angle (º) |
30ºto the left and to the right |
|
Max water pressure (MPa) |
10(6)(19) |
|
Cleaning flow capacity L/min |
150(90)(212) |
|
|
Low Pressure Watering |
Watering width (m) |
at least 16 |
Watering speed (Km/h) |
0-20 |
|
Water flow capacity L/min |
500-800 |
|
Spraying gun gunshot (m) |
38 |
|
Water tank volume (L) |
11000 |
|
Max Total weight (Kg) |
16000 |
|
