Home > Products > Shear Machine > cutting machine cut length, galvanized steel sheet metal cutting machine
cutting machine cut length, galvanized steel sheet metal cutting machine
- Ningbo or Shanghai
- T/T
You May Like
Product Details
Condition | New | Place of Origin | Zhejiang, China | |
Brand Name | Finding | Model Number | FD | |
Certification | CE ISO | Warranty | 2 Years | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
cutting machine cut length, galvanized steel sheet metal cutting machine
We are a professional manufacturer and exporter of Steel Roll Forming Machine, and corrugated steel sheet, sandwich panel and steel coils in Hangzhou with convinent transportantion: about 10 kms away from Hanzhou International Airport,180km away from Shanghai and Ningbo port.
Our workshop covers more than 10,000 square meters and about 150 technical staffs work in our factory. We have rich technical force,high-level managerial team, advanced production facilities, strong production capacity and strict quality control system.
What we value is reputation and service, what we sell is quality and technology.
If you have interesting please do not hesitate to contact me.
Manager: Frankie Wu
TEL: 86-571-82809226/82809225
MOB: 86-15990056206/86-13067761708
FAX: 86-571-82809227
Skype: shuixing411

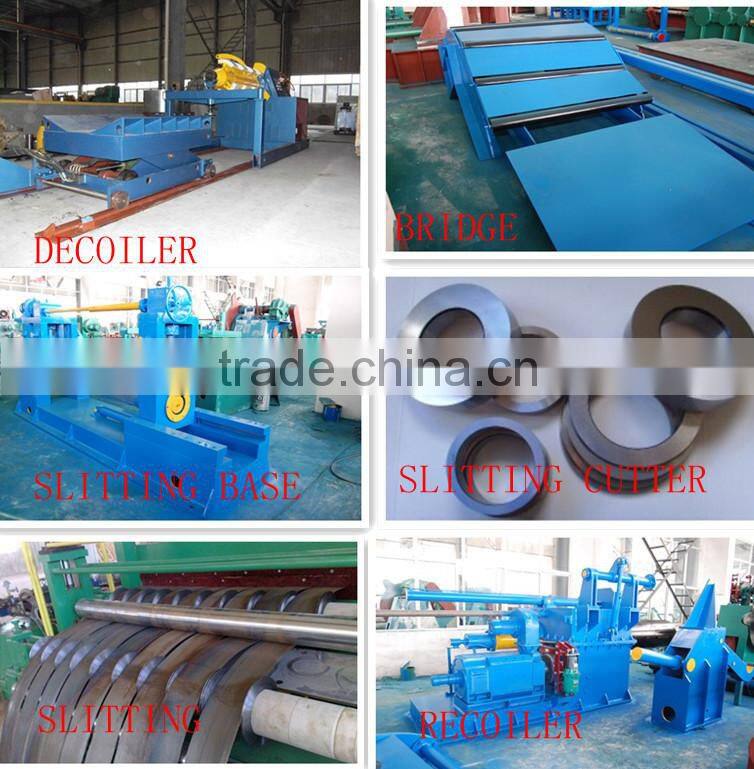

Part | Function | Piece |
coil saddle | Function is to store coil that to be processed, reduce time for increase productivity. | 1set |
coil car | It is used to feed and unload material with function of vertical and horizontal movement | 1set |
Guiding head & Hydraulic mandrel uncoiler | To fix steel coils for uncoiler | 1set |
Pinch flattener | To pinch and flatten the steel plate. | 1set |
Coil head shear | It is used to divide coils and cut bed-plate heads to avoid irregular plate to main machine. | 1set |
Guiding device | It is used to guide the steel plate before entering the slitter. | 1set |
Slitting machine | Cut steel plates from slitting direction as per required width by adjusting composite separating cover. | 1set |
Scrap winder | scrap winder is installed on the both sides of the line. | 2sets |
Intermediate bridge | To reduce the difference of operating speed between both machine, for convenience of lateral register device to correct deviation of steel plate. | 1set |
Separating device and tension pad | Two groups are set to ensure all material operate according to their own track without any deviation or twisting. | 2sets |
Recoiler | To recoiling finished products. | 1set |
Hydraulic support device | It supporting the main shaft of recoiling machine. | 1set |
Unloading car | It is used to unload finished coils. | 1set |
Hydraulic system | Hydraulic system provide power for coil car, guiding head, uncoiler, leveler, slitter, transitional table, tension pad and recoiler, etc. | 1set |
Pneumatic system | control operation vavle, filter, lubricate low pressure pipe and joints and hose. | 1set |
Electric Control System | The control system is designed for the entire equipment on working site | 1set |

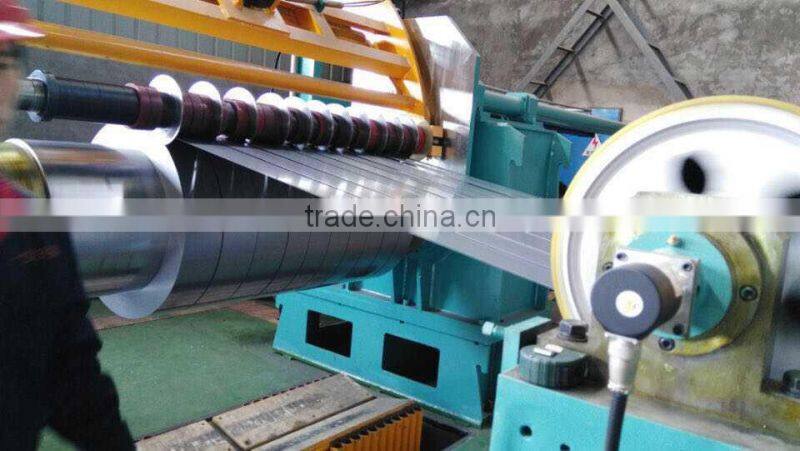

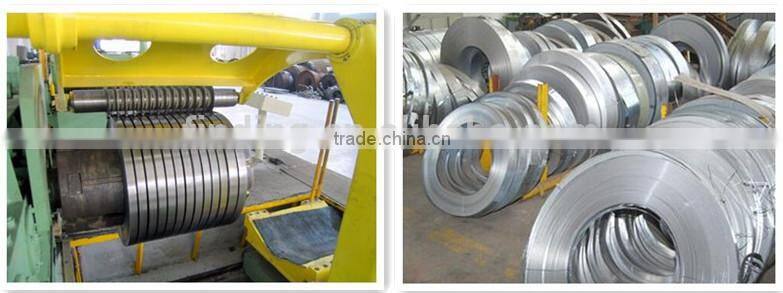

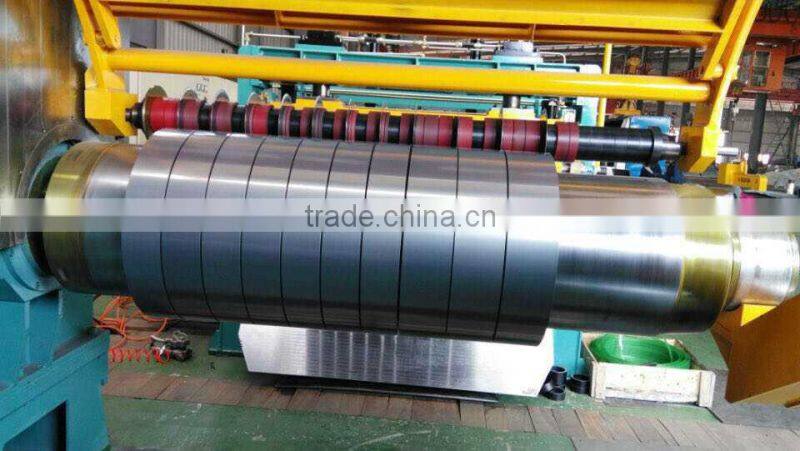

Product Pictures:
Our Advantages:
Our machine | Other company 's machine | Influence of the machine | |
Machine's base | High strength H350 / H400 steel. machine through milling macine after welding | H270 steel mark, after welding use manual polish | keep base in the same horizontal line, ensure product standard |
Roller material | High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated | Normal No. 20 steel with Simple polished and have no coating | Roller will have longer use life and ensure the products have same size,no nick on the surface. |
Side wall | Use high strength16mm thickness steel panel mark | Use 12 mm thickness steel panel mark | Ensure machine harder to deform, keep the product accurate and stable |
Active shaft material | High grade solid No.45 carbon steel, Shaft diameter is 72mm. surface CNC polish treatmen | Normal No. 45 steel with no surface treatment | Improve the integrated mechanic feature of the shaft. and ensure the shaft stability keep product standard |
Electrical elements | PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China | All the elements are made in china | Machine become more accurate and more stable |
Cutter blade | Cr12 mould steel with quenched treatment | Normal high strength steel without quenched treatment | Stable the integrated mechanic feature of the cutter blade,harder to deform, longer blade's life, ensure product standard |
Design Ability:
- We have more than 20 years experience in produce roll forming machine,
- We have a group of professional engineers,
- We have a lot of customer's feedback data,
- We can design the machine and product according to your request.
About Us: |
Hangzhou Finding International Co., Ltd locates in the beautiful city - Hangzhou, which is a professional manufacturer and exporter for building material machinery and related steel coils in China. Hangzhou Finding is specialized in exporting of the group company; we have the factories of steel roll forming machinery, steel coils, steel structures and ACP mosaic tiles. With rich technical force, high-level managerial team, strong production capacity and strict quality control system, Hangzhou Finding has established a long term business relationship with global customers from America, South America, Europe, Asia, Africa, and Middle East on mutual benefits. All of the products can be customized to meet your specific requirements, please do not hesitate to contact us, let us help you to win the market early. |
Our Factory & Equipment: |
Our Team & Exhibition: |
Our Certificate: |
Contact Us
- Hangzhou Finding International Co., Ltd.
- Contact nameFrankie Wu Chat Now
- Phone86-571-82809226 82809225
- Address27/F, Building 2, International Business Center, 458 Jincheng Road, Xiaoshan, Hangzhou, Zhejiang
