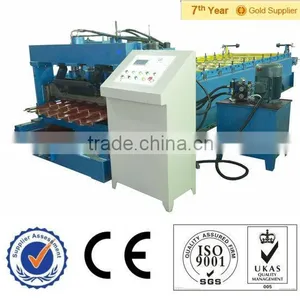

color steel curving roof tile panel roll forming machine

FOB Price

USD $20,000 - $30,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Colored Glaze Steel	Use	Roof
Production Capacity	20 m / min	Place of Origin	Zhejiang, China
Brand Name	Finding or OEM	Model Number	FDYX25-205-1025
Power(W)	5.5 kw	Voltage	380 v
Dimension(LWH)	10*1.3.1.5 m	Weight	10 tons
Certification	CE	Warranty	2 years
After-sales Service Provided	Engineers available to service machinery overseas

Good quality
Comprehensive sevice
Good price
CE certificate
20 years experience

Machine 's components:

Main technical parameters:

Suitable material	color steel sheet or galavanized steel sheet
Thickness of raw material	0.3 ~ 0.8 mm
Yield strength of material	235 Mpa~ 345Mpa
Forming speed	15 ~ 20 m/min
Main moto power	5.5 KW
Hydraulic station power	2.2 KW
Uncoiler loading capacity	Max capacity: 5 tons, (can be increased to be 10 tons)
Controlling system	Mitsubishi PLC & converter
Machine's size	about 10 m * 1.3 m* 1.5m

Our advantages :

	our machine	other company 's machine	Influence of the machine
Machine's base	High strength H350 / H400 steel. machine through milling macine after welding.	H270 steel mark, after welding use manual polish.	keep base in the same horizontal line, ensure product standard.
roller material	High grade No.45 forged steel, with digital-controlled procession, Plated with 5 um chrome coated	normal No. 20 steel with Simple polished and have no coating	Roller will have longer use life and ensure the products have same size, no nick on the surface.
side wall	use high strength16mm thickness steel panel mark	use 12 mm thickness steel panel mark	ensure machine harder to deform, keep the product accurate and stable
Active shaft material	High grade solid No.45 carbon steel, Shaft diameter is 72mm. surface CNC polish treatment.	normal No. 45 steel with no surface treatment	improve the integrated mechanic feature of the shaft. and ensure the shaft stability keep product standard.
Electrical elements	PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China	all the elements are made in china	machine become more accurate and more stable
cutter blade	Cr12 mould steel with quenched treatment	normal high strength steel without quenched treatment	stable the integrated mechanic feature of the cutter blade, harder to deform, longer blade's life, ensure product standard.

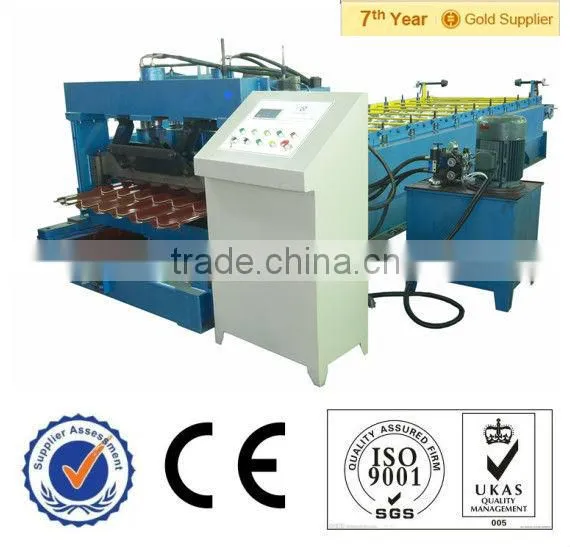

Machine 's photo:

Photo of other components:

If you have interesting please do not hesitate to contact me.
