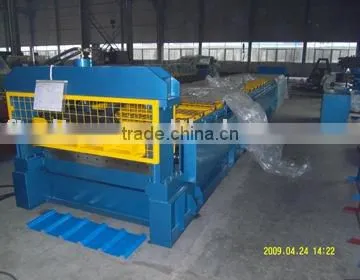

Help CenterRoof and Wall Panel Forming Machine
Related Products
Specifications
-Roof&Wall panel forming machine,Model FDYX29-202-1010,Roll Forming Machine-Raw material thickness:0.3-0.8mm
-PLC control
Machine's components:
Roll forming machine consists of uncoiler,coil sheet guiding device,main roll forming system,cutting device,hydraulic station,PLC control system and support table.
Main technical parameters:
1.Suitable material: color steel sheet or galvanized steel sheet
2.Thickness of raw material: 0.3-0.8mm
3.Yield strength of material: 235Mpa-345Mpa
4.Forming speed: about 15m/min
5.Power Requirement Main moter power:5.5Kw(Depend on final design)
Hydraulic station power:2.2Kw(Depend on final design)
6.Uncoiler's loading capacity Max.Capacity: 5000kgs(can be increased to be 10T)
Following the steel construction development, our company has been engaged in manufacturing Roll Forming Machines for more than 12 years. We have developed more than 10 series of Steel Roll Forming Machines which can meet the requirements of all steel constructions, such as wall & roof sheet forming machine, color steel tile forming machine, C & Z & W shape purlin forming machine and floor decking sheet forming machine as well as production line for all kinds of sandwich panels, curving machine for roof sheets. We also supply production lines of guardrail sheet for expressway, shutter doors, garages doors and downpipe. Besides, we devoted ourselves to the research & development of various kinds of other products related to steel structure, such as hydraulic press brake machine, shearing machine, slitting machine, lift machine, gas cutting machine, drilling machine, etc.
