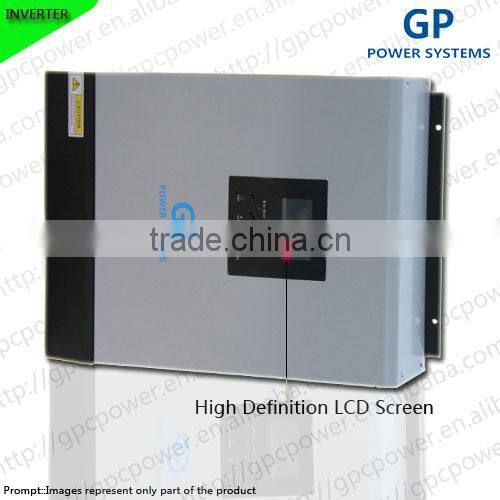

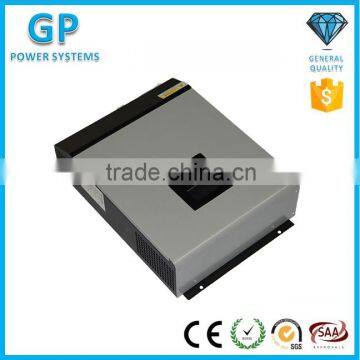

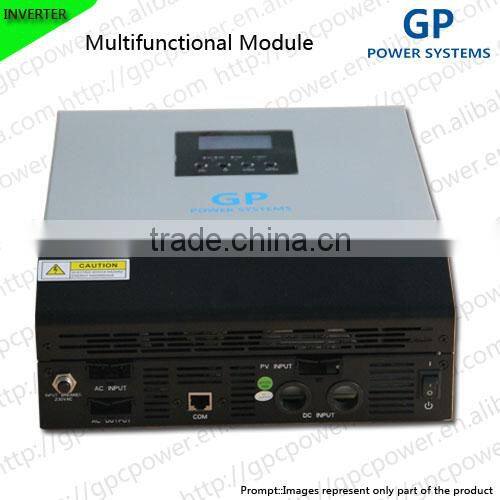

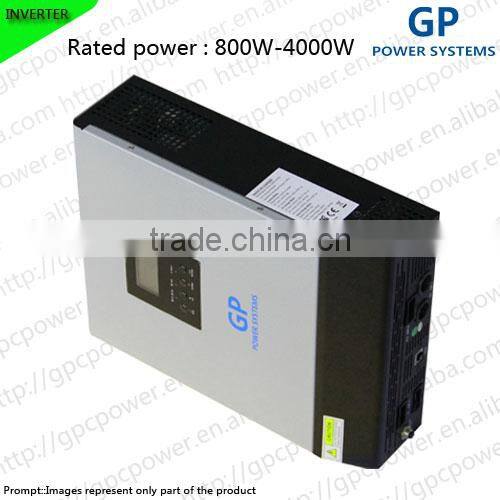

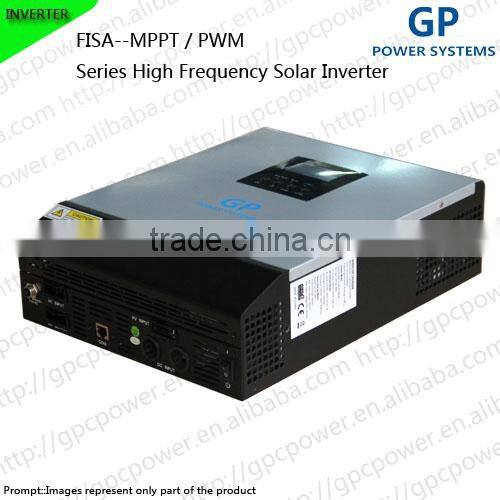

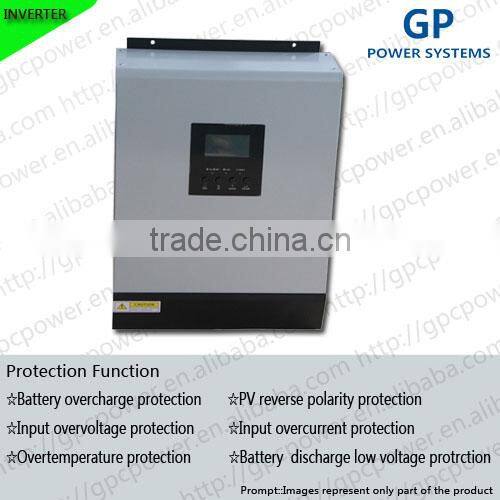

Help Center2kva Pwm Controller Pure Sine Wave Solar Inverter for Solar Power System
Related Products
-
3kva Solar Power System Pure Sine Wave Inverter With Built-in PWM Solar Charge ControllerUS$ 200 - 230MOQ: 10 Pieces -
[GP]1-12kw Solar System Home us Pure Sine Wave Inverter Quality ChoiceUS$ 400 - 430MOQ: 1 Set
-
3kva Solar Power Inverter for Home Use/solar Power System With Built in Mppt Solar Charge ControllerUS$ 250 - 300MOQ: 10 Pieces
-
[GP]Modified Since Wave Hybird Mini Inverter 1000VA-2000VA Quality ChoiceUS$ 60 - 130MOQ: 1 Piece
-
GP-inverter GPE 2000watts 12v 220v Pure Sine Wave Power InverterUS$ 200 - 230MOQ: 10 Pieces
Features: |
1.Pure sine wave inverter |
2.Built-in PWM solar charge controller |
3.Selectable input voltage range for home appliances |
4.Selectable charging current based on applications |
5.Configurable AC/Solar input priority via LCD setting |
6.Compatible to mains voltage or generator power |
7.Auto restart while AC is recovering |
8.Overload and short circuit protection |
9.Smart battery charger design for optimized battery performance |
10.Cold start function |
MODEL |
GPH-1600-PWM |
Rated power |
1600W |
INPUT |
|
Voltage |
230 VAC |
Selectable Voltage Range |
170-280 VAC or 90-280 VAC |
Frequency Range |
50Hz/60Hz (Auto Sensing) |
OUTPUT |
|
AC Voltage Regulation (Battery mode) |
230VAC±5% |
Surge Power |
4000VA |
Efficiency (Peak) |
93% |
Transfer time |
10ms (For personal computers) 20ms (For home appliances) |
Wave form |
Pure sine wave |
BATTERY & AC CHARGER |
|
Battery Voltage |
24V DC |
Floating Charge Voltage |
27V DC |
Overcharge Protection |
30V DC |
Max Charge Current |
20A or 30A |
SOLAR CHARGER (OPTIONAL) | |
Max PV Array Open Circuit Voltage |
60VCD |
Max Charging Current |
50A |
Standby Power Consumption |
1W |
Dimension (mm) |
100*272*355 |
Weight (kgs) |
6.4 |
Operating Environment | |
Relative Humidity |
5% to 95% (Non-condensing) |
Operating Temperature |
0℃-55℃ |
Storage Temperature |
-15℃-60℃ |
General Power (SHENZHEN) Engineering Co., Ltd has 25000 square meter manufacturing base, more than 200 R&D employees. According to the features of China mainland power supply system environment and local industrial standard, GP Shenzhen keep optimizing the products to meet the local market's requirement. General Power (Shenzhen) Corporation always follow the principle of having the whole word in view and providing the best quality power products with the best price, satisfy with all users all over the world.
General Power products have been realized localization and applied to many fields like military, industrial, government, communication engineering, power supply system, traffic etc. and won a good reputation.
