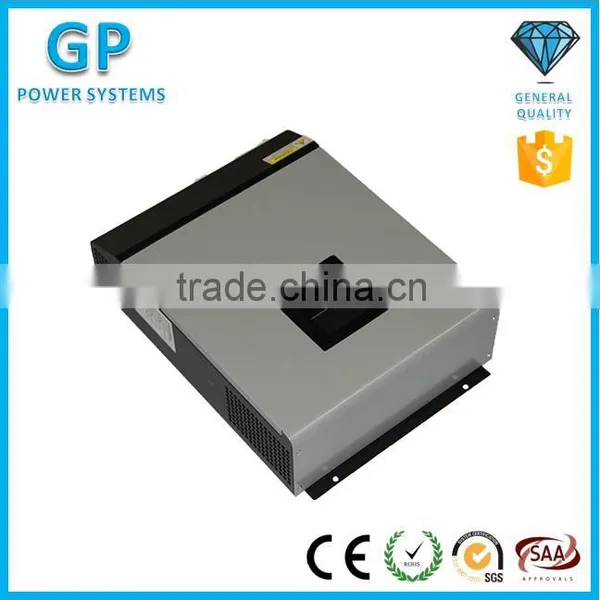

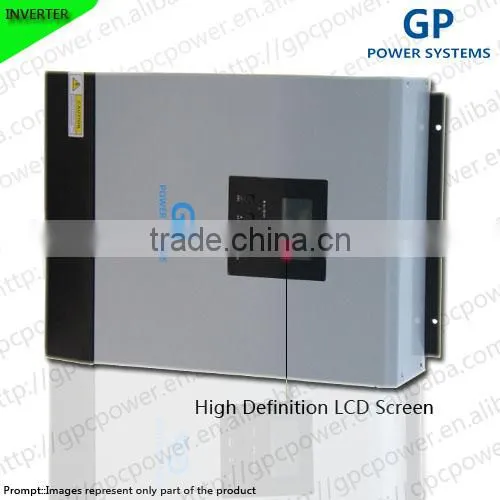

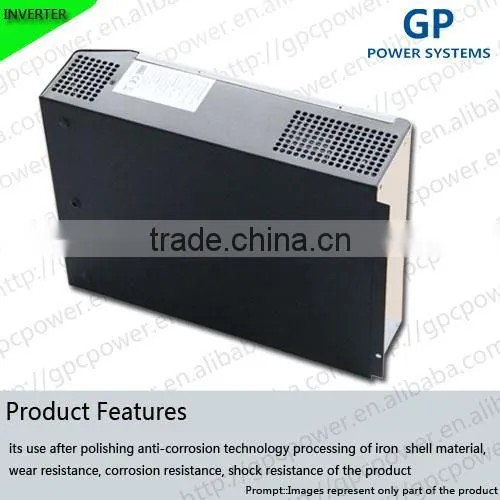

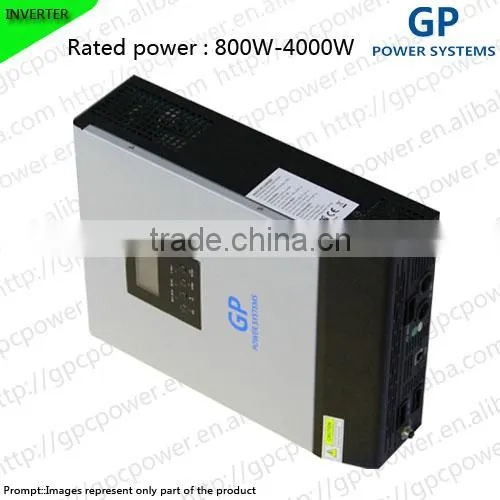

GP 3200watts Pwm pv Solar Controller Off-grid Charger Inverter

US$ 1 - 320 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

GPH

General Power Engineering(Shenzhen)Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name GP

Model Number GPH

Output Power 1 - 200KW

Output Type Single

Size 120*295*468

Weight 9.8kg

Input Voltage 110v/120v/220v/230v

Output Voltage 230V

Type DC/AC Inverters

Output Frequency 50Hz/60Hz

Output Current Load

Product Description

MODEL	GPH-4KVA
Rated power	3200W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC or 90-280 VAC
Frequency Range	50Hz/60Hz (Auto Sensing)
OUTPUT
AC Voltage Regulation (Battery mode)	230VAC±5%
Surge Power	8000VA
Efficiency (Peak)	93%
Transfer time	10ms (For personal computers) 20ms (For home appliances)
Wave form	Pure sine wave
BATTERY & AC CHARGER
Battery Voltage	48V DC
Floating Charge Voltage	54V DC
Overcharge Protection	60V DC
Max Charge Current	20A or 30A
SOLAR CHARGER (OPTIONAL)
Max PV Array Open Circuit Voltage	90VCD
Max Charging Current	50A
Standby Power Consumption	2W
Dimension (mm)	120295468
Weight (kgs)	9.8
Operating Environment
Relative Humidity	5% to 95% (Non-condensing)
Operating Temperature	0℃-55℃
Storage Temperature	-15℃-60℃
Features:
1.Pure sine wave inverter
2.Built-in MPPT solar charge controller
3.Selectable input voltage range for home appliances
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering

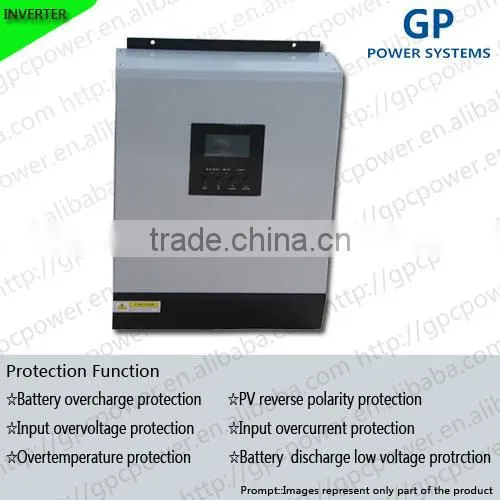

8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start function
