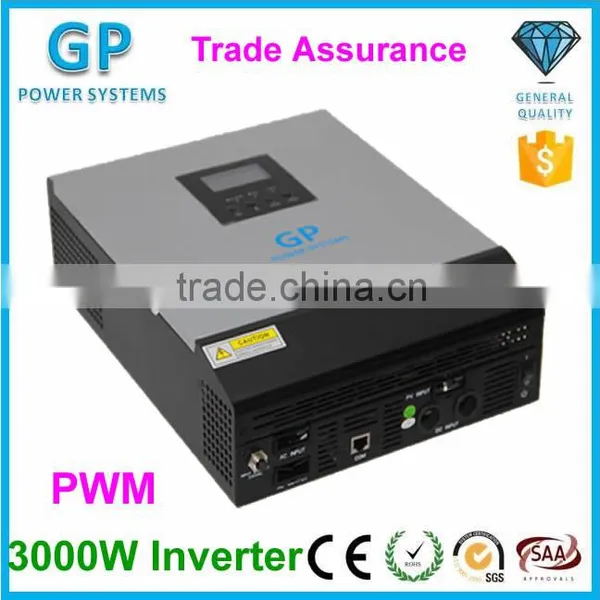

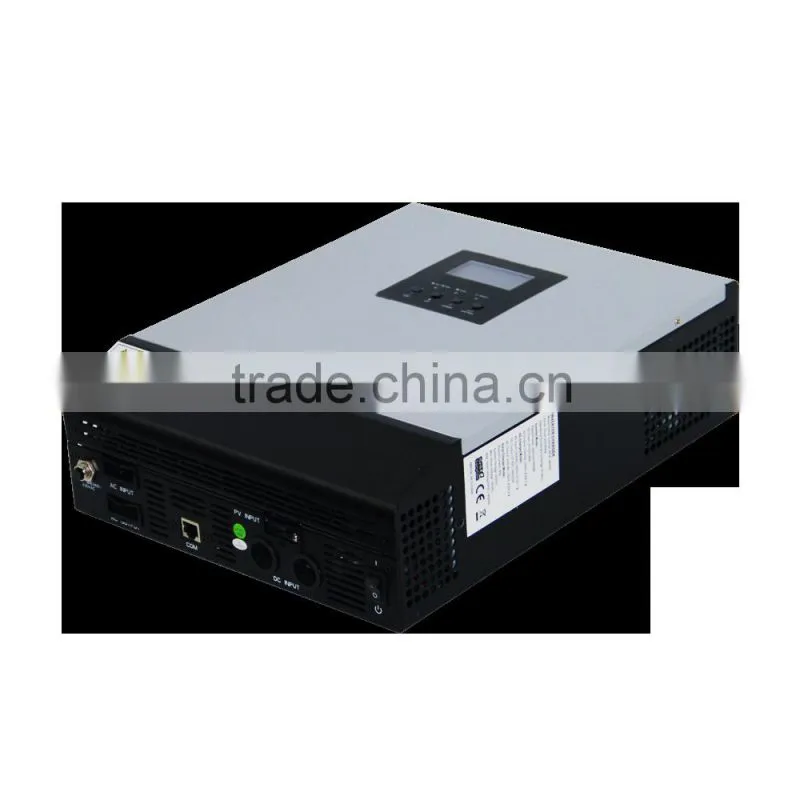

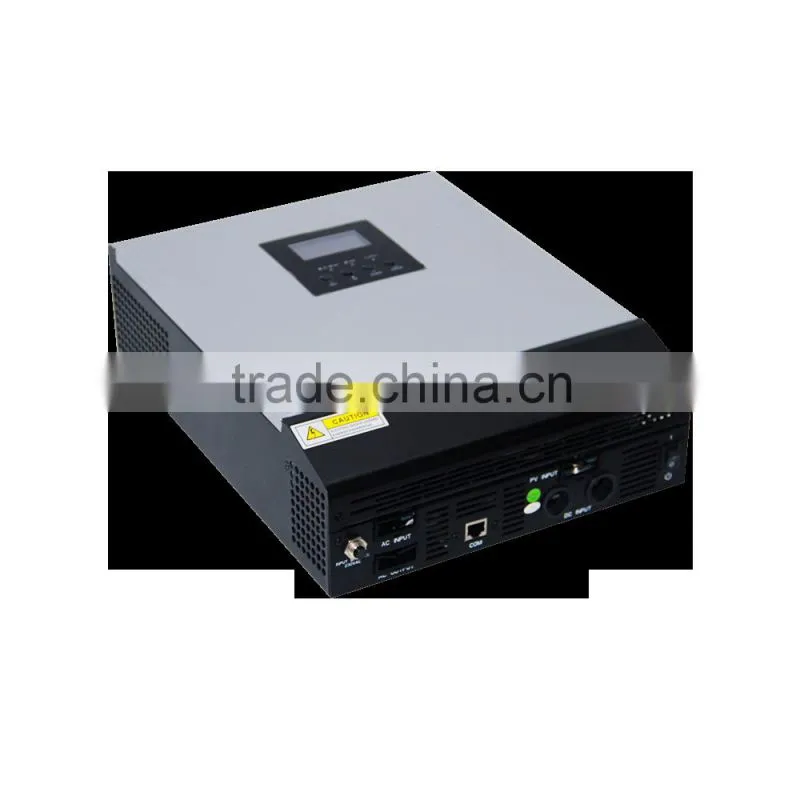

GP pure sine wave inverter pwm high frequency 3000W 24v
pure sine wave inverter pwm high frequency 3000W 24v specification:
• Pure sine wave inverter
• Built-in PWM solar charge controller
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
| Model No. | GPH1000P | GPH2000P | GPH3000P | GPH4000P | GPH5000P | |
| Rated Power | 1000VA/800W | 2KVA/1.6KW | 3KVA/2.4KW | 4KVA/3.2KW | 5KVA/4KW | |
| Input | Rated Voltage | 230 VAC | ||||
| Voltage selectable range | 170~280 VAC | |||||
| (for Personal Computer) | ||||||
| Voltage selectable range | 90~280 VAC | |||||
| (for home appliance) | ||||||
| Frequency range | 50Hz/60Hz (Auto sensing) | |||||
| Output | AC voltage Regulation | 230V AC ± 5% | ||||
| (Batt.Mode) | ||||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | |
| Efficiency (Peak) | 0.9 | 0.93 | ||||
| Transfer time | 10ms (for personal computer) | |||||
| 20ms (for home appliance) | ||||||
| Wave form | Pure sine wave | |||||
| Battery& AC Charger | Battery voltage | 12VDC | 24VDC | 48VDC | ||
| Floating charge Voltage | 13.5VDC | 27VDC | 54VDC | |||
| Overcharge Protection | 15VDC | 30VDC | 60VDC | |||
| Maximum Charge Current | 10A or 20A | 20A or 30A | 20A or 30A | |||
| PV Input | Charge current | 20A | ||||
| MPPT Range @ | 30 VDC | 60 VDC | 90 VDC | |||
| Operating Voltage (VDC) | ||||||
| Standy powr consumption | 1W | 2W | 2W | |||
| Physical | Dimension, D×W×H (mm) | 95×240×316 | 100×272×355 | 120×295×468 | ||
| Net Weight (Kgs) | 5 | 6.4 | 6.9 | 9.8 | 9.8 | |
| Environmental | Humidity | 5%~95% Relative Humidity (Non-condensing) | ||||
| Operation Temperature | 0℃~55℃ | |||||
| Storage Temperature | -15℃~60℃ | |||||
| * Typical transfer time for parallel operation is 30ms | ||||||
| * Product specifications are subject to change without further notice | ||||||
General Power Corporation, which was founded in Detroit City, Michigan State in 1928, was usually abbreviated to GP. GP is a large corporate enterprise, By the technology innovation of inverters, UPS and diesel generator. It has been a leader in the field of power source. After more than 80 years’ development, the products have been supplied to more than 140 countries. And in USA, Germany, Mexico, South Africa, China and Thailand, GP have already set up the manufacturing bases, with more than 1700 distributors and agencies, and 31.000 employees all over the world.GP is one of the Fortune 500 enterprises in US.
1.Five years warranty for free.
2. After the warranty period,engineers Maintenance aboard available.
3.Will get response within 24h.
