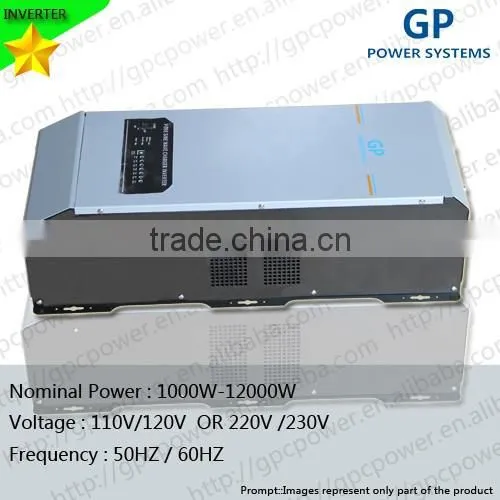

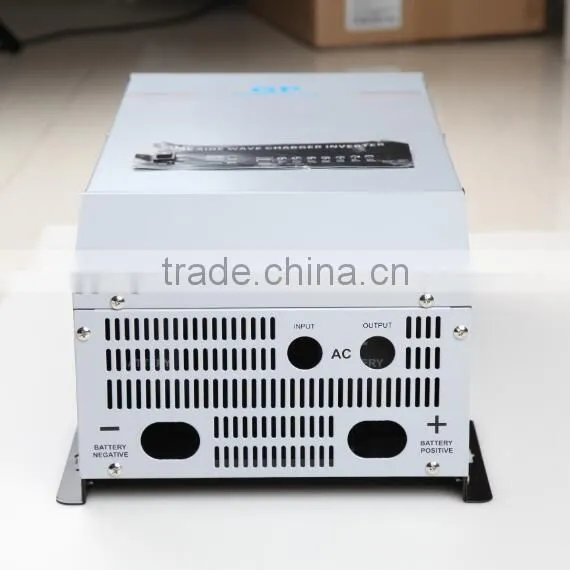

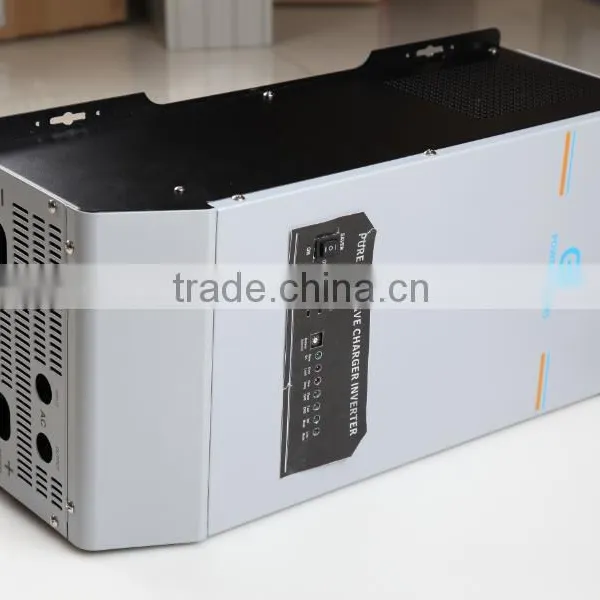

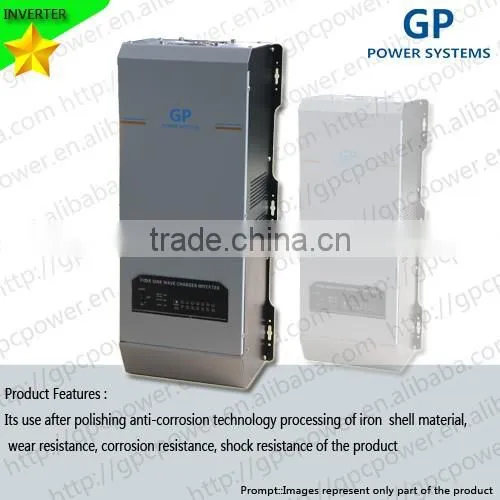

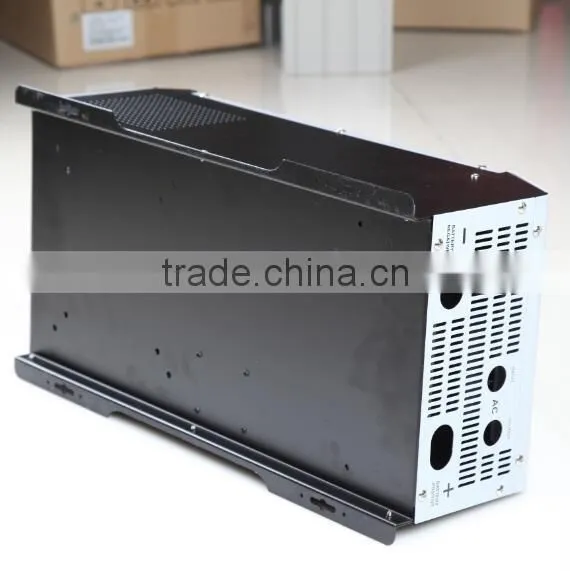

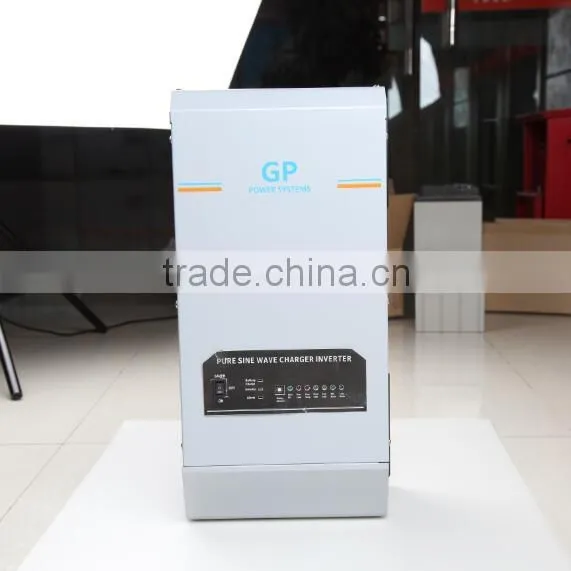

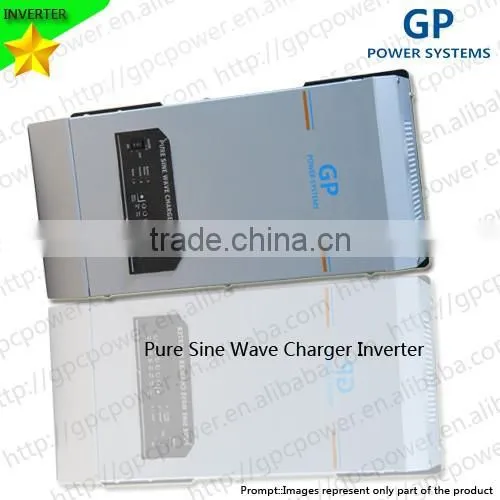

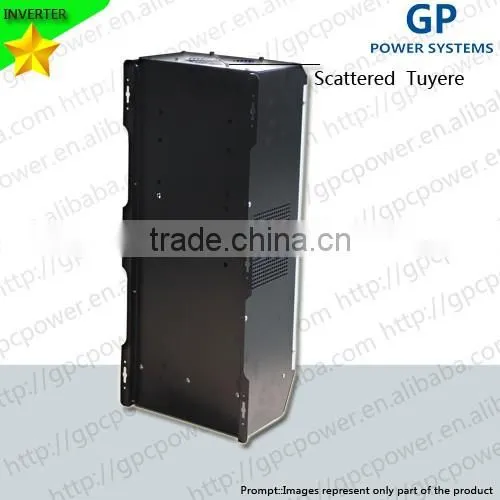

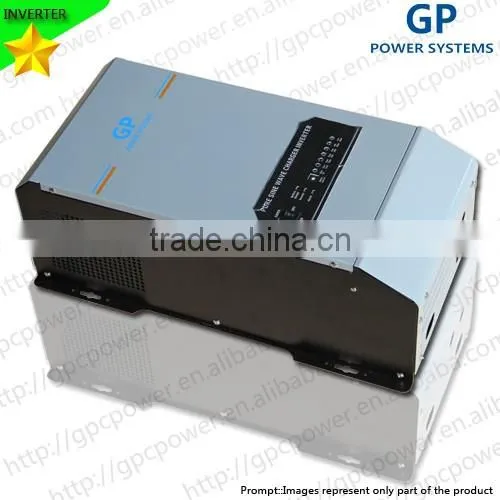

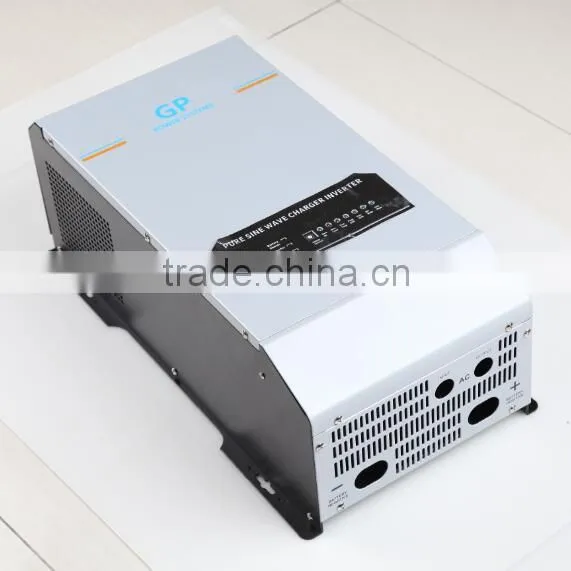

Help CenterGPE 2kva/2000watts Off-grid dc to ac Pure Sine Wave Pump Inverter Made in China
Related Products
-
GP Inverter 2400watts Pure Sine Wave Inverter Off-grid Solar Mppt InverterUS$ 200 - 265MOQ: 1 Piece -
3200watts ac Charger Mppt Solar Controller pv Off-grid Inverter Quality ChoiceUS$ 1 - 430MOQ: 1 Set
-
GP 4000watts Off-grid Mppt Solar Controller ac Charger Inverter Pure Sine Wave InverterUS$ 1 - 500MOQ: 1 Set
-
GP 2400watts Pure Sine Wave pv Off-grid Pwm Solar Controller Charger InverterUS$ 1 - 220MOQ: 10 Sets
-
GP 3200watts Pwm pv Solar Controller Off-grid Charger InverterUS$ 1 - 320MOQ: 1 Set
| Features: | ||||||
|
On Inverter max power from various batteries with different protections. cycle to reduce power consumption. consumption than conventional units. | ||||||
| Technology Specifications: | ||||||
| Model No. | GPE-2000 | |||||
| Nominal Power | 2000W | |||||
| AC Input | ||||||
| Phase & waveform | single phase & sinewave | |||||
| voltage | 100V/120V/220V/230V/240VAC | |||||
| Acceptable Voltage | 194-243VAC164-243VAC(wide mode) | |||||
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) | |||||
| Line Low Return | 95V±4%/194(164 wide mode±4%) | |||||
| Line High Transfer | 135±4%/253±4% | |||||
| Line High Return | 127±4%/243±4% | |||||
| Frequency | 50Hz or 60Hz(Auto Sensing) | |||||
| Line Low Transfer | 47Hz for 50Hz, 57Hz for 60Hz | |||||
| Line High Transfer | 55Hz for 50Hz, 65Hz for 60Hz | |||||
| Output | ||||||
| Phase & waveform | Single phase & sinewave(bypass mode sync to input) | |||||
| voltage |
100V/120V/220V/230V/240VAC (sane as input on bypass mode) |
|||||
| Voltage Regulation | ±10%rms(bypass mode sync to input) | |||||
| Frequency | 50Hz or 60Hz(Auto Sensing) | |||||
| Crest Power | 3 times of ratings | |||||
| Short Circuit Protection | Yes, shutdown after 10 minutes | |||||
| Power Factor | 0.9-1.0 | |||||
| DC Input | ||||||
| Battery Voltage | 12V/24V/48V | |||||
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V | |||||
| Low Battery Alarm | 10.5V for 12V, 21V for 24V, 42V for 48V | |||||
| Low Battery Transfer | 10V for 12V, 20V for 24V, 40V for 48V | |||||
| High Voltage Alarm | 16V for 12V, 32V for 24V, 62.8V for 48V | |||||
| Max Charging Current | 20A-75A | |||||
| Over Charge Voltage | 15.7V for 12V, 31.4V for 24V, 62.8V for 48V | |||||
| Transfer Efficiency | ||||||
| Line Mode | >95% | |||||
| Battery Mode | >85% | |||||
| Power Saver | Available when the load is less than 50 Watts | |||||
| Indicators | ||||||
| 7-LED Display | From the right to the left, LED1 line mode(green lighting),LED2 inverter mode(green lighting),LED3 charging mode(yellow lighting),LED4 Fully Charged(green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded shutdown(red lighting),LED7 Saving Mode(green lighting) | |||||
| 3-LED Display | Charging Mode(green lighting),inverter mode(green lighting),Alarm(red lighting) | |||||
| LCD Display | Input Voltage,Output Voltage,Frequency,Battery Voltage,Load | |||||
| Switch selector |
Saving Mode is on/off when push the switch forwards/ backwards, keeping it horisontal is turning the inverter off |
|||||
| Audible Alarm |
Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds |
|||||

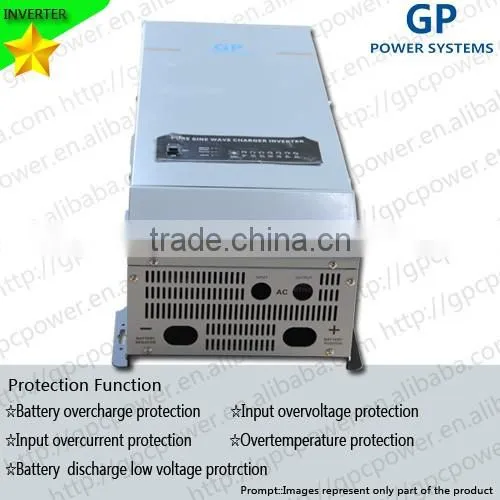

| Protections | low battery,over charging,over temp,over load. | |||||
| Communications | RJ11/RS232(Optional) | |||||
| Enviromental | ||||||
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) | |||||
| Audible Noise | <60dB | |||||
| Physical | ||||||
| Net Weight(KG) | 19 | |||||
| Dimension,D*W*H(mm) | 218*179*442 | |||||
General Power (SHENZHEN) Engineering Co., Ltd has 25000 square meter manufacturing base, more than 200 R&D employees. According to the features of China mainland power supply system environment and local industrial standard, GP Shenzhen keep optimizing the products to meet the local market's requirement. General Power (Shenzhen) Corporation always follow the principle of having the whole word in view and providing the best quality power products with the best price, satisfy with all users all over the world.
General Power products have been realized localization and applied to many fields like military,industrial, government, communication engineering, power supply system, traffic etc. and won a good reputation.
1.Original carton box with scientific design, styrofoam in it to keep safe.
2.Goods lead is in 5 days while in stock and 5-15 days when it is out of stock.
3.Shipping via DHL in 5-7 days or by sea in 10-30 days.
1.Three years warranty for free.
2. After the warranty period,engineers Maintenance aboard available.
3.Will get response within 24h.
