GP 700W Inverter dc to ac Inverter Micro Modified Sine Wave
US$ 55 - 70
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GP
Model Number:
GPN1000
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GP Brand Cheap Inverter 720W to 1500W Micro InverterUS$ 59 - 69MOQ: 1 Set -
GPE 2kva/2000watts Off-grid dc to ac Pure Sine Wave Pump Inverter Made in ChinaUS$ 200 - 230MOQ: 10 Pieces
-
GP Inverter 2400watts Pure Sine Wave Inverter Off-grid Solar Mppt InverterUS$ 200 - 265MOQ: 1 Piece
-
3200watts ac Charger Mppt Solar Controller pv Off-grid Inverter Quality ChoiceUS$ 1 - 430MOQ: 1 Set
-
GP 4000watts Off-grid Mppt Solar Controller ac Charger Inverter Pure Sine Wave InverterUS$ 1 - 500MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
GP
Model Number
GPN1000
Output Power
Other, 720W inverter
Output Type
Single
Size
296*268*91mm
Weight
3kg
Input Voltage
12V/24V
Output Voltage
110V/220V/230V/240V
Type
DC/AC Inverters
Output Frequency
50Hz/60Hz
Output Current
5A-60A

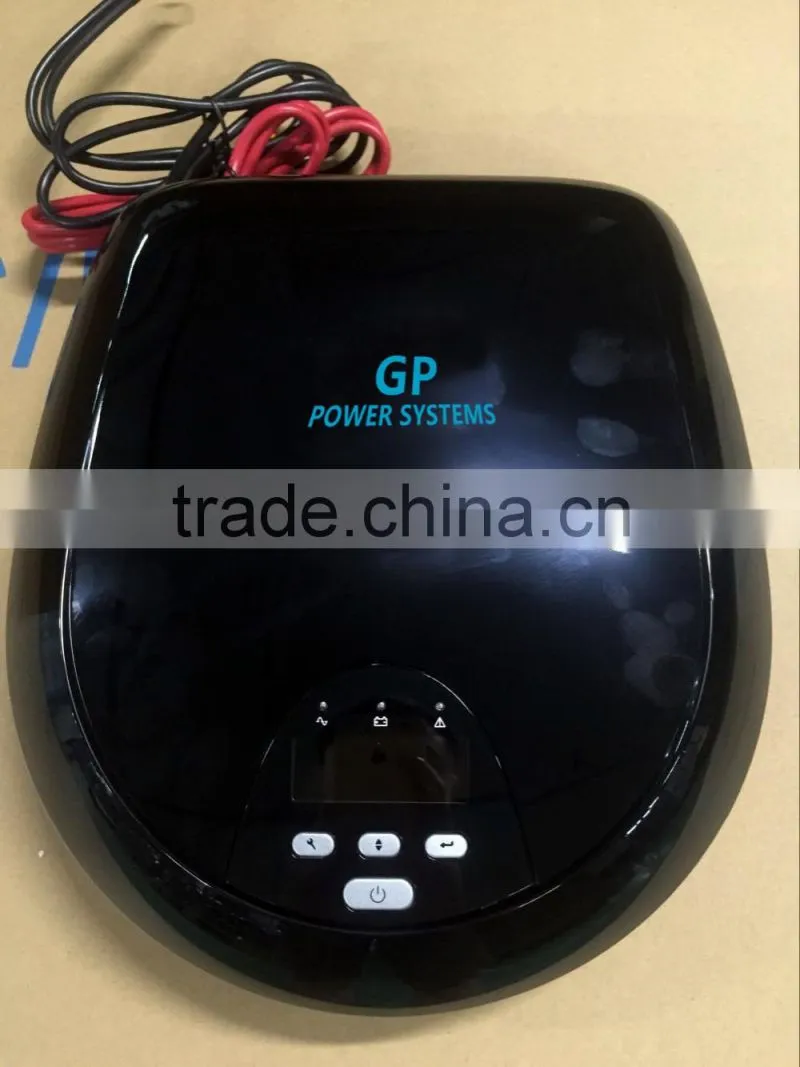

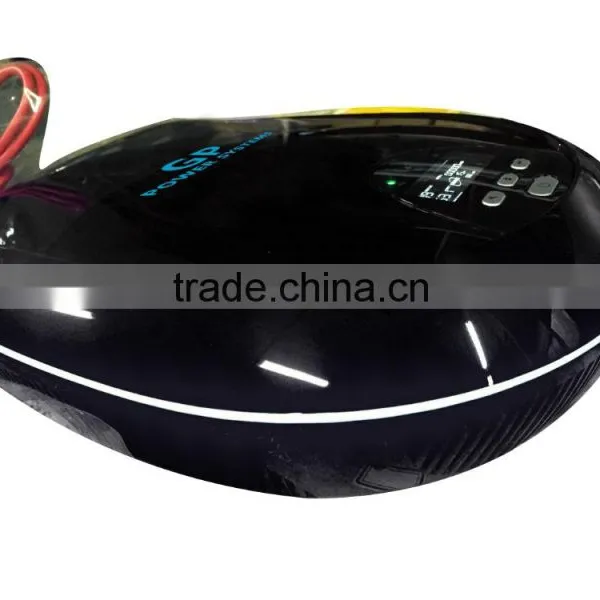

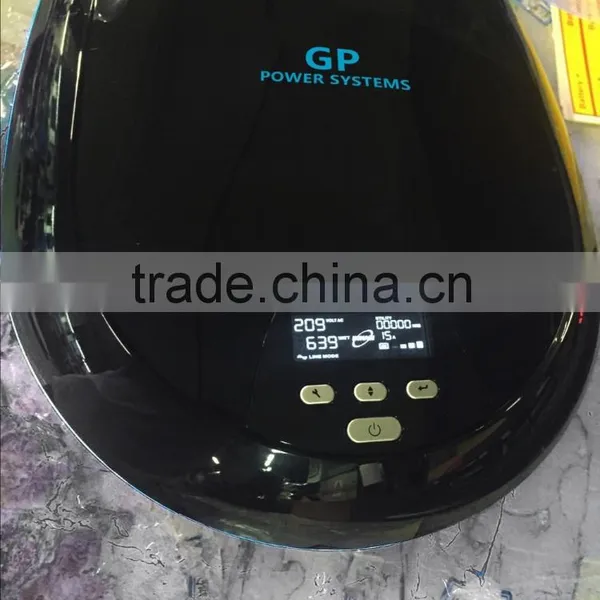

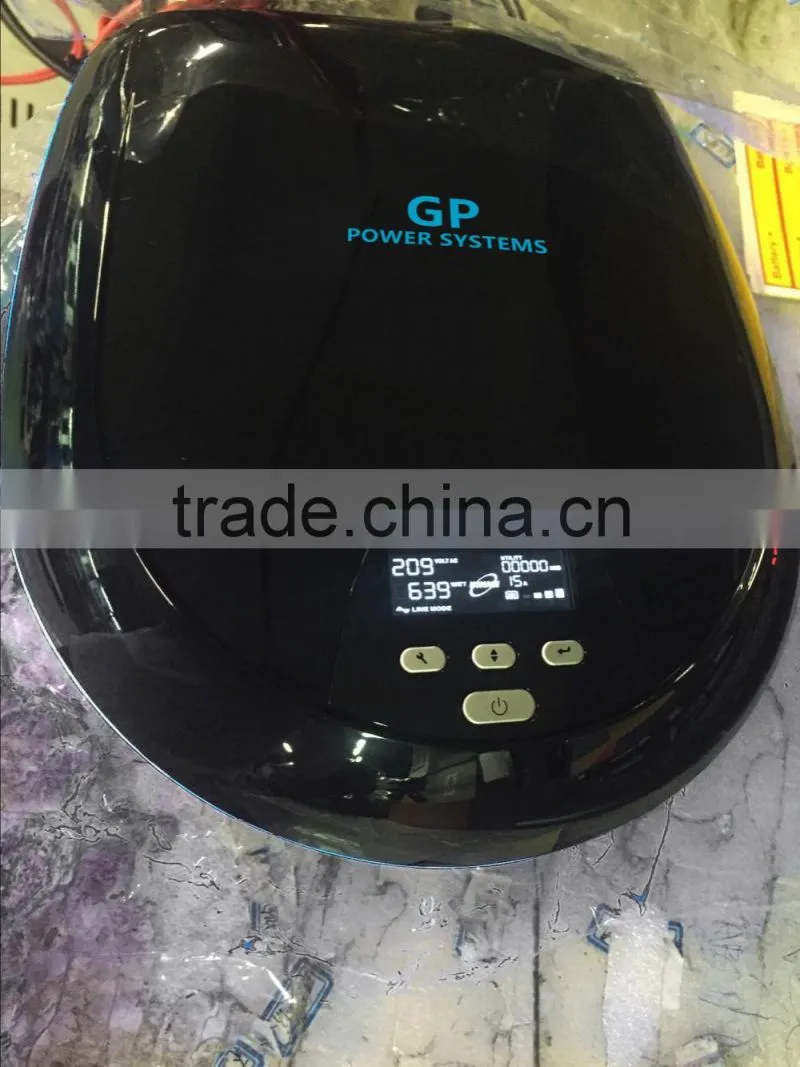

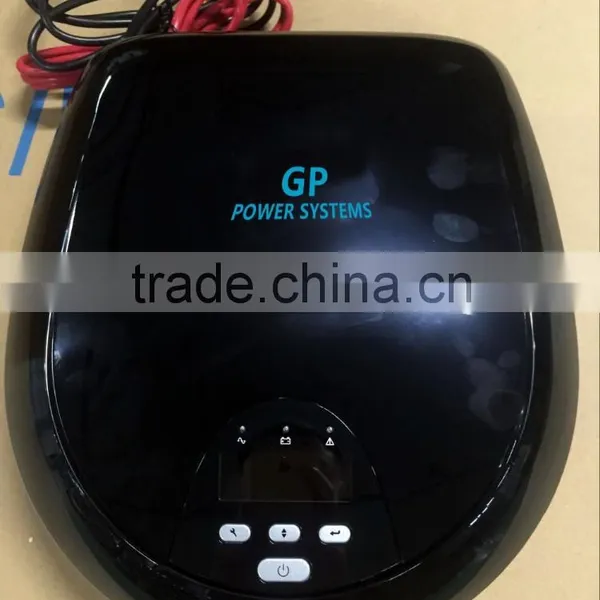

GP 700W inverter dc to ac inverter micro Modified sine wave
Product Description
700W inverter specification:
• High conversion efficiency, smart soft start function.
• Multiple protection circuit for low voltage
• Smart, light, easy for carry
• Portable size power inverter
• Electricity - Battery automatic conversion
• Different choice of input voltage range
• High efficiecy rate of DC - AC conversion, minimize energy loss
• 10A/20A charge current manual select
• Different front panels to choose
• Intelligent charge control, can ensure the effective charging
• Ultra-load protection
• With the multiple protection circuit, no harm to equipments
• Modified/Square waveform output.
| Inverter Model NO. | GPN1000 | GPN1200 | GPN2000 | ||
| Inverter Capacity | 1000VA/700W | 1200VA/900W | 2000VA/1500W | ||
| BATTERY | 12VDC | 24VDC | |||
| AC INPUT | Nominal Voltage | 220/230/240VAC | |||
| Selectable Voltage Range | Narrow | 170~280VAC | |||
| Wide | 90~280VAC | ||||
| Frequency Range | 50HZ/60Hz(Auto sensing) | ||||
| OUTPUT | Voltage | 230vac | |||
| Output Voltage Regulation | +10/-18% | ||||
| Frequency Range | 50HZ/60Hz | ||||
| Frequency Regulation(Bat.Mode) | +/-1 Hz | ||||
| Waveform | Modifided Sine-wave | ||||
| BATTERY& CHARGER | Charge Current | 20A | 15A | ||
| Overcharge Protection | 16V | 32V | |||
| TRANSFER TIME | Typical | 15ms Typical 40ms Max | |||
| EFFICIENCY | AC to AC | >95% | |||
| DC to AC | >80% | ||||
| DISPLAY INDICATOR | AC Mode | Display Output Power,Output Voltage | |||
| Battery Mode | The mark will flick every 1 second | ||||
| Battery Charging Mode | Display the battery capacity | ||||
| Fault | Display fault | ||||
| Audible Alarm | Low Battery at Battery Mode | Sounding every 2 seconds | |||
| Charger Voltage (Vbat>12.5V) | Sounding every 0.5 seconds | ||||
| Fault | Continuously sounding | ||||
| PROTECTION | Full Protection | Discharge,Overcharge,Overload,Over temperature,Short Circuit | |||
| PHYSICAL | Dimensions (W*H*D) | 296*268*91mm | |||
| Net Weight (kg) | 1.98kg | 2.29kg | 2.17kg | ||
| Environmental | Operating Enviroment | O.c.to 50C,5%.90% relative humidity(non-condensing) | |||
| Storage Environment | 000-15C to 55C,5% to 95% humidity(non-condensing) | ||||
| Noise Level | Less than 50dB | ||||
