Specifications
1.hdmi switch 1x22.Plug and play
3.1080p support 3D
4.Intelligent switcher
5.Customized availabled

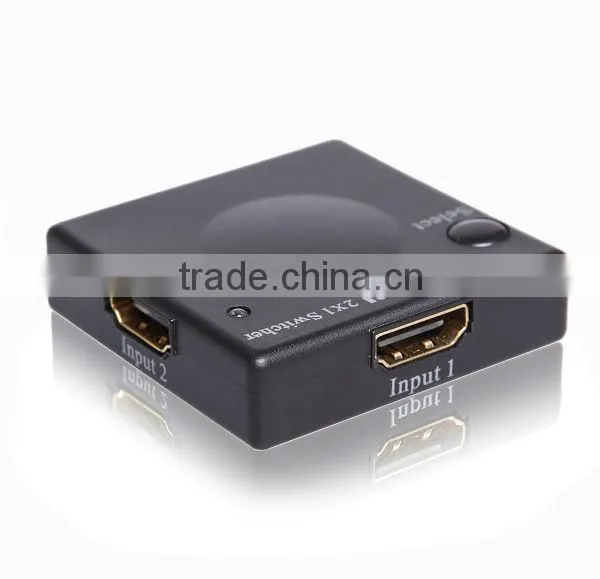

The HDMI Amplifier Switcher 2X1 Support 3D 1080p
1. Description
This kind of 1080p hdmi switch not only has the key-press-switching function, but also has the intelligent function. It routes high definition video (in multiple resolutions up to1080p) and digital audio from any one of the several sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox360 etc.
2.Features2
2.Feature
*Multifunctional on switching : intelligent or mechanical
* Support HDMI1.3b
* Support highest video resolution 1080p.
* High performance up to 2.5Gbps.
* Support 12bit per channel (36bit all channel) deep color.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD).
* Support 3D
3.Specifications
| Input DDC Signal | 5 volts p-p (TTL) |
| Output Video | HDMI 1.3b |
| Maximum Single Link Range | 1920X1080p |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 2.5Gbps/250MHz |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p |
| Operating Temperature | 0°C to +70°C |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Humidity | 5% to 90 % RH (no condensation |
| External Power Supply | No power needed |
| Power consumption (Max) | 5W / 1A |
| User Manual | English Version |
4.About us
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design,
owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection,experienced OEM, ODM production
