Specifications
1.3 in 1 out2.1080p support 3D
3.IR remote control
4.Customized availabled
5.CE,FCC,ROHS,HDMI,HDCP
Mini HDMI Intelligent Switch 3X1 Support 3D
1. Description

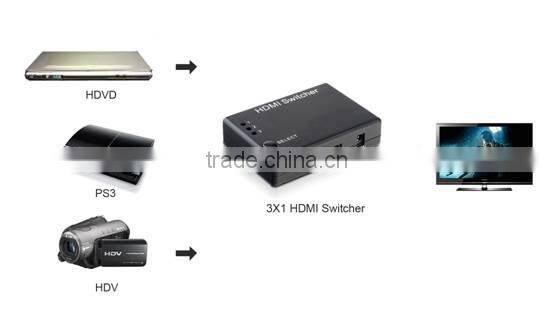

3x1 HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the three sources to display unit. The output sends the high definition audio/video signals to a high definition display. This kind of the HDMI Amplifier Switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function.
2.Feature
* Multifunctional on switching : intelligent or mechanical
* Support HDMI1.3b
* Support highest video resolution 1080p.
* High performance up to 2.5Gbps.
* Support 12bit per channel (36bit all channel) deep color.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
* Support 3D
3.Specifications
| Input DDC Signal | 5 volts p-p (TTL) |
| Output Video | HDMI 1.3b |
| Maximum Single Link Range | 1920X1080p |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 2.5Gbps/250MHz |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p |
| Operating Temperature | 0°C to +70°C |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Humidity | 5% to 90 % RH (no condensation |
| External Power Supply | No power needed |
| Power consumption (Max) | 5W / 1A |
| User Manual | English Version |
4. Accessories
IR Receiver
Remote control
User menual
5.About us
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design,
owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection,experienced OEM, ODM production
