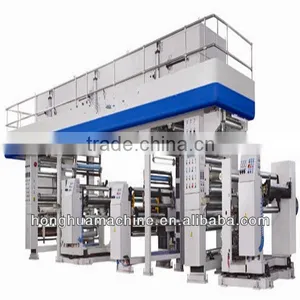

Help CenterHigh Speed Dry Laminating Machine
Related Products
-
Hydraulic T-shirt Shopping Bag Hole Punching MachineUS$ 1,600 - 1,900MOQ: 1 Set -
Machine for Plastic Bag Punches,press MachineUS$ 1,600 - 1,900MOQ: 1 Set
-
Machine for Plastic Bag Punches,manufacturer of MachineUS$ 1,600 - 1,900MOQ: 1 Set
-
Laminating Machines(JRF)US$ 40,000 - 60,000MOQ: 1 Set
-
High Speed Paper and Plastic Coating Machine,paper Extrusion Coating MachineNegotiableMOQ: 1 Set
Specifications
1.two unwind2.laminating by slovent
3.EPC,inverter motor,pneumatic roller
4.dry laminating machine
Application:This model machine is used for PET,Nylon,Cpp,Aluminum foil,paper and such roll base maaterials′ dry-tape laminating process.The whole machine adopts Mitsubishi PLC control,man-machine nterface operation
A.machine technical parameter
| No | Description | Technical | Remark |
| 1 | Web for laminating |
BOPP,PET,NYLON,CPP,CPE,AL,PAPER AND SO ON | |
| 2 | Gluewater |
water-solubility gluewater | |
| 3 | Web layer | 2 layes |
|
| 4 | Width for web | 400-1000mm |
Rollerwidth:1080mm |
| 5 | Rewind diameter | 600mm |
|
| 6 | Unwind diameter | 600mm |
|
| 7 | Oven temp |
50°C-100°C |
Auto- control |
| 8 | Laminating temp |
30°C-100°C | Auto- control |
| 9 | Total power | 85kw |
|
| 10 | Dimension |
8500×1700×2500mm |
|
| 11 | Total weight |
6500kg |
B.machine structure
a.Unwind system
| No | Description | Technical | Remark |
| 1 | No.1Unwind frame |
singlehanded |
|
| 2 | Photo electricity EPC |
Rectify range ±50mm,precision: ±0.5mm |
|
| 3 | No.2Unwind frame |
singlehanded |
|
| 4 | EPC by manual | ||
| 5 | Tension |
Magnetic powder |
Auto control ,range 0~200N/M |
| 6 | Pneumatic roller |
74mm |
Unwind |
b.Gluewater coating system
| No | Description | Technical | Remark |
| 1 | Anilox roller length |
1100mm,φ165mm |
|
| 2 | Press roll |
φ120mm |
nitride butadiene rubber,hard70- 75 degree |
| 3 | Gluewater Pan |
Stainless steel |
Adjustable by handle |
| 4 | Blade |
Three position control |
Remove type ,move range ±10mm |
| 5 | Press roll |
Move by air cylinder |
Air pressure adjustable |
| 6 | Drive motor |
Inverter control |
|
| 7 | Guide roller |
Hard metal |
1080mm, φ100mm |
C.Oven system
| No | Description | Technical | Remark |
| 1 | Oven length |
8500mm | Three temp zone |
| 2 | Oven temp |
0~100°C | Digital type |
| 3 | Infrared heating | Stainless steel heating |
Reflect by stainless steel board 60kw |
| 4 | Blower power |
1.5kw |
3pcs |
| 5 | Guide roller motor |
1.5kw |
|
| 6 | windy system |
Recycle |
|
| 7 | Oven structure | Keep temp |
d.laminating system
No |
Description | Technical |
Remark |
| 1 | Laminating roll |
1080mm,φ320mm |
Surface hardening and tempering, plating with chrome |
| 2 | Laminating roll |
1080mm,φ220mm |
Silicon rubber ,hard :80 degree |
| 3 | Roll heating |
Electric |
8kw ,digital control |
| 4 | Remove motor |
5.5kw |
Inverter control |
| 5 | Rolls move |
Air cylinder |
e.Rewind system
| No | Description |
Technical |
Remark |
| 1 | Rewind diameter |
600mm |
|
| 2 | Pneumatic roll |
74mm |
|
| 3 | Tension control |
Torque motor |
|
| 4 | EPC |
By manual |
