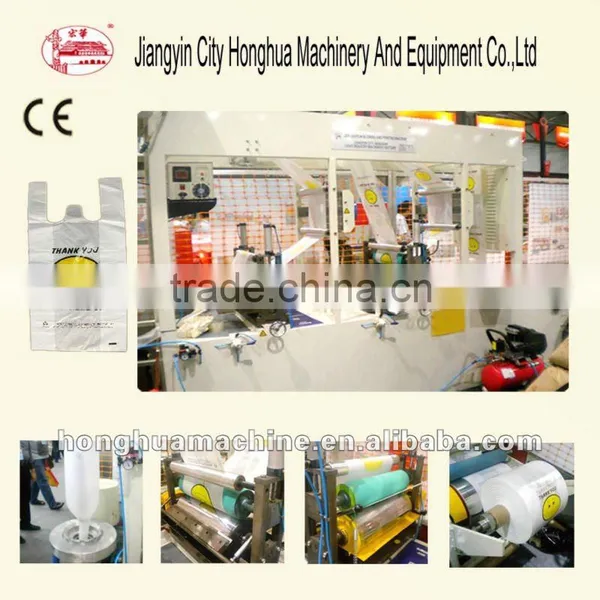

Film Blowing And Printing connect-line set
Application
JSY-350film blowing and printing machine is one of machine special for soft plastic package bag,it not only blowing and printing in once time ,but also for both sides printing,the material is LDPE,HDPE,RECYCLE material and so on
Characteristics
1.Widely application with more function.
2. Advanced structure, easy operation, overprint nicety, easy maintenance
3.Lower material, reliable quality. More advantage:
a. Bright color and don’t easy to move the ink;
b. Blow and print at the same time, overprint nicety;
c. Easy maintenance, reliable and stable quality
d.lower consume,lower worker,time ,cost and so on.
Technical parameter:
Mode |
Units |
JSY-350 |
Suitable Material |
|
HDPE LDPE LLDPE |
Max Film Width |
MM |
350 |
Film Thickness |
MM |
HDPE:0.01-0.03 LDPE:0.0015-0.08 |
Max Output |
KG/H |
25 |
Total Power |
KW |
25 |
|
|
|
EXTRUSION & DIE &AIR-RING |
|
|
Screw Diameter |
MM |
Φ45 |
Screw L/D Ratio |
L/D |
28:1 |
Screw & Barrel Material |
|
38 CrMoAL |
Die-Head Diameter |
MM |
Φ35 Φ70 |
Thermo Control Zone Of Die |
Zone |
1 |
Thermo Control Zone Of Barrel |
Zone |
3 |
Heating Power |
KW |
12 |
Main Motor Power |
KW |
7.5 |
Inverter |
KW |
7.5 |
|
|
|
PULLING DEVICE |
|
|
Take-up Motor Power |
KW |
0.75 |
Inverter |
KW |
0.75 |
|
|
|
WINDING DEVICE |
|
|
Rewind Roller Width |
MM |
350 |
Max.Winding Diameter |
MM |
350 |
Height |
MM |
2200 |
Max. Width of Printing Material |
MM |
350 |
Max. Printing Width |
MM |
350 |
Length Range of Printed Product |
MM |
235-565 |
Printing Speed |
M/MIN |
10-40 |
Total Power |
KW |
6 |
Weight of Machine |
KG |
2200 |
Main parts | ||
Name |
Type |
Manufacturer |
Main motor |
PYPEY2-132M-4 |
Beide |
Inverter |
CHF100 1R5G-S2 |
INVT Shenzhen |
Temperature controller |
WD-5411 |
Gongbao |
AC Contactor |
CJX1-22 |
Delixi |

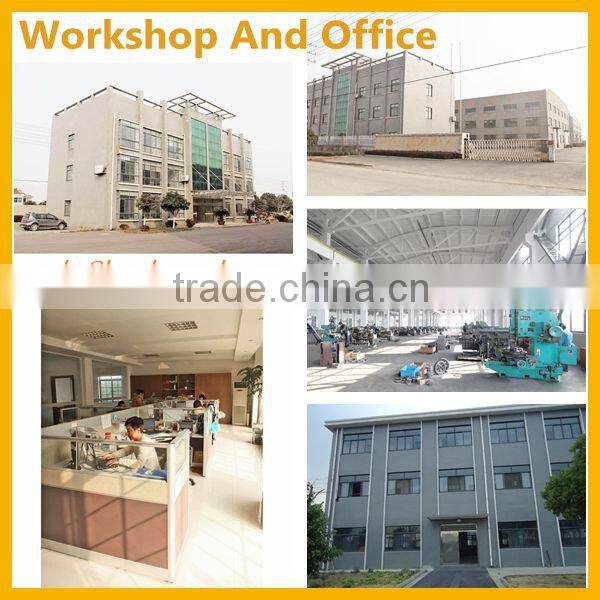

Our company is located in jiangyin city,Jiangsu province. It was founded in 1984,has 25000 suqare meter. As the leading of paper soft plastic packaging equipments in China, we own five sorts and hundreds of kinds of machines running all over the world.
Main of our customers:
Asia
Japan, India, Indonesia, Iran, Iraq, Jordan, Kuwait , Laos, Lebanon, Malaysia, Nepal, Pakistan, Philippines, Qatar, Saudi Arabia, Sri Lanka, Syria, Yemen, U.A.E
Latin America
Chile, Colombia, Venezuela, Mexico, Peru, Brazil
Africa
Ethiopia, Algeria, Angola, Cameroon, Egypt, Kenya, Libya, Morocco, Nigeria, Sudan, Tanzania, Togo, Tunisia, Zimbabwe
Welcome you to inquiry!
Pls contact us with no hesitate!
Miss Mindy Gu
