plastic film roto gravure printing machine (both sides)
- 30 Set / Sets per Month
- SHANGHAI
- T/T
- Packaging linkage line Medical medicinepackaging production line
- The five metalsgive bag packaging production line Vertical packaging linkage line
- Beverage industrybox and palletizing production line
- Packaging assembly line Drugpackaging linkage line
- Chinese medicine teapackaging assembly line Packaging linkage line
- Packing and palletizing linkage line Food service industrybox and palletizing production line
Product Details
Application: | Commodity | Packaging Type: | Cartons | ||
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Power: | 25kw | Place of Origin: | Jiangsu, China | Brand Name: | HONGHUA |
Model Number: | JSY350 |
Product Description
Specifications
1.Material:HDPE/LDPE/LLDPE2.Gravure printing machine.
3.Easy operation,bright color
4,Timely delivery,good after service

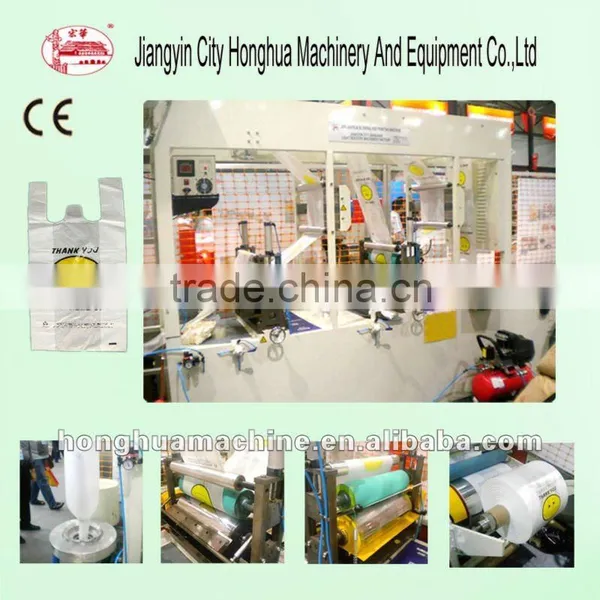

plastic film roto gravure printing machine (both sides)
Main future and performance:
JSY-350film blowing and printing machine is one of machine special for soft plastic package bag,it not only blowing and printing in once time ,but also for both sides printing,the material is LDPE,HDPE,RECYCLE material and so on,
1.Widely application with more function.
2. Advanced structure, easy operation, overprint nicety, easy maintenance
3.Lower material, reliable quality. More advantage:
a. Bright color and don’t easy to move the ink;
b. Blow and print at the same time, overprint nicety;
c. Easy maintenance, reliable and stable quality
d.lower consume,lower worker,time ,cost and so on.
Technical parameter:
Mode | Units | JSY-350 |
Suitable Material |
| HDPE LDPE LLDPE |
Max Film Width | MM | 350 |
Film Thickness | MM | HDPE:0.01-0.03 LDPE:0.0015-0.08 |
Max Output | KG/H | 25 |
Total Power | KW | 25 |
|
|
|
EXTRUSION & DIE &AIR-RING |
|
|
Screw Diameter | MM | Φ45 |
Screw L/D Ratio | L/D | 28:1 |
Screw & Barrel Material |
| 38 CrMoAL |
Die-Head Diameter | MM | Φ35 Φ70 |
Thermo Control Zone Of Die | Zone | 1 |
Thermo Control Zone Of Barrel | Zone | 3 |
Heating Power | KW | 12 |
Main Motor Power | KW | 7.5 |
Inverter | KW | 7.5 |
|
|
|
PULLING DEVICE |
|
|
Take-up Motor Power | KW | 0.75 |
Inverter | KW | 0.75 |
|
|
|
WINDING DEVICE |
|
|
Rewind Roller Width | MM | 350 |
Max.Winding Diameter | MM | 350 |
Height | MM | 2200 |
Max. Width of Printing Material | MM | 350 |
Max. Printing Width | MM | 350 |
Length Range of Printed Product | MM | 235-565 |
Printing Speed | M/MIN | 10-40 |
Total Power | KW | 6 |
Weight of Machine | KG | 2200 |
Main parts | ||
Name | Type | Manufacturer |
Main motor | PYPEY2-132M-4 | Beide |
Inverter | CHF100 1R5G-S2 | INVT Shenzhen |
Temperature controller | WD-5411 | Gongbao |
AC Contactor | CJX1-22 | Delixi |
