1x19 Galvanized steel wire rope

Specifications

1x19 Galvanized Steel Wire Rope
1.Standard: AISI, ASTM, DIN, ISO, GB
2.From 0.28mm to 46mm
3.ISO and SGS
4.R.H.L.Or L.H.L.

1x19 Galvanized steel wire rope



1) Dia: 0.28mm-20mm;

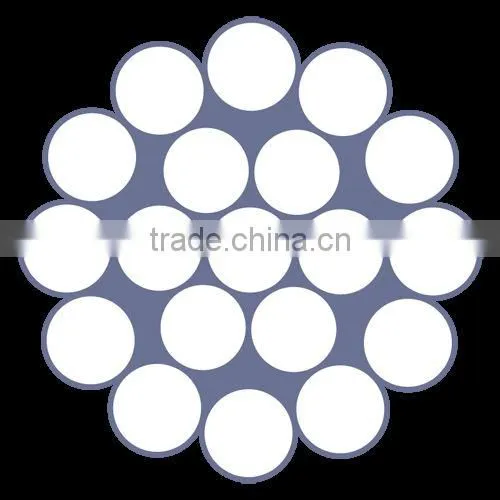

2) Construction: 1x19 Galvanized steel wire rope

2) Certification: ISO

3) Material:Steel
4) Surface: PVC/Nylon/PE coated; Galv.

5)  Norminal Tensile Strength(T/S): 1570MPA, 1670MPA, 1770MPA, 1870MPA, 1960MPA
6) Special specifications and marks can be made according to customers requirments

7) Length: 305m/reel,500m/reel,1000m/reel,2000m/reel or as customer's required

8) type: hand spliced slings(Left or Right bothe are available)
9) Packing details: In plywood reel,plastic reel,wooden reel,coil packing in pallet or as customer's required.









All the main Constructions are available:



1X7, 1X19, 7X7, 7X19, 1X37, 19X37, 7X37, 6X7+FC/IWS, 6X19+FC/IWRC, 6X19S(W)+FC/IWRC, 6X37+FC/IWRC, 6X36WS+FC/IWRC, 19X7, 18X7+FC, 8X25Fi+IWR etc.





The Material of the Stainless Steel





Advantage:

1.  Endured the rigorous examination of ISO

2. Excellent quality along with the most competitive price

3. Excellent for large loads, heavy loads and long hauls .



We have been manufacturing these products for over 10 years. Guarantee excellent quality. We also could do OEM services, can well meet clients' needs and requests.



Want to know more detailed information about us, go to our website.

;







Trade details(kindly need your attention):





1) Above all, in your inquiry, besides the diameter and construction, please indicate clearly: the grade of your required; quantity; packing. Because those are also key to calculating our cost and telling you prices for your order.



2) Wire rope can be charged by meter or by metric ton as per your option.
