Hot video player V1.4 4kx2k 2 way hdmi bi-directional 2 to 1 switcher, 1 to 2 splitter
1.0 Introduction

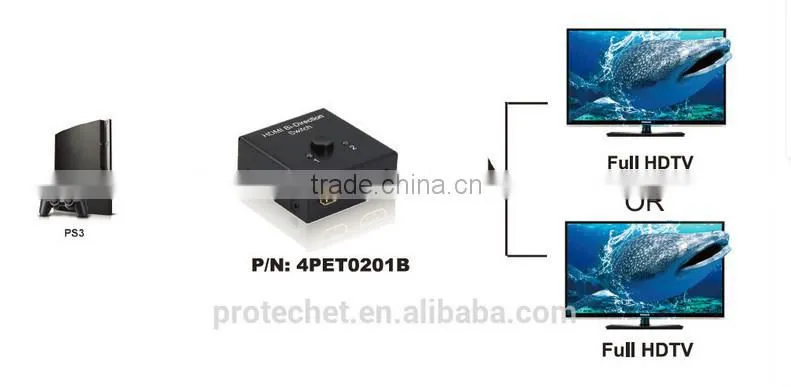

This is one device of HDMI 2 ports bi-direction manual switcher. It can easily switch two routes of HD Source to any one HD display or projector. Also it can distribute one HD Source to two HD Display or projector.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments
2.0 Features
* Cascaded: Large distribution achieved by cascading the HDMI Amplifier Splitter
* 2 HDMI-Host (DVD Player or PS3) to 1 HDMI Monitor or TV
* 1 HDMI-Host (DVD Player or PS3) to 2 HDMI Monitor or TV
* MAX operation current:15ma
* Full compliance with the HDMI Specification V1.0,V1.1,V1.2,V1.3,V1.4
* Main control: Manual electron select
* With 2 LED & display working port
* LED : 2 (Blue),Display working port
* Easy install & operation
* Support HDMI Plug & Play
* Support input up to 5metres AWG26 HDMI standard cable length,output up to 5metres AWG26 cable length
* Support 3D
3.0 Specifications
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
4kx2k |
Output Video |
V1.0,V1.1,V1.2,V1.3,V1.4 |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
340MHz/3.4Gbps |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p,4Kx2K |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 ℃ to +70℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
External Power Supply |
No power needed |
Power consumption (Max) |
5W |
User Manual |
English Version |
4.0 Package & Shipping Contents
1) Main unit
2) User Manual
You may interested in:
5.0 Company Imformation
About us :
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design, owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection, such as HDMI cable, switcher, splitter, matrix converter and extender.
In addition, Protech provides the prime quality & reasonable price for all our customers, and supports clients with high technology product development, experienced OEM, ODM production and highly effective global logistics. "To serve customers with good quality & price of the world competition" is our winning policy.
Office & Factory Outlook:
Flow of Production :
OEM & ODM:
Certification:
Exhibition:
6.0 Conatct US
