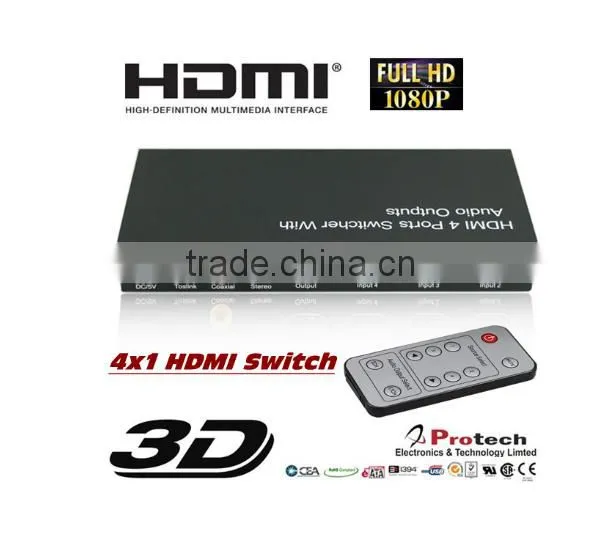

HDMI Switcher 4 input 1 output with Audio Support 3D coaxial toslink stereo 3.5mm audio
Introduction
It is known that the most benefit of the HDMI is to integrate the audio and videosignals together. This integration makes all of us enjoy the high quality of theaudio and video effect. Awfully the bad effect of the HDTV audio deprives thebasic right of the enthusiasts.
Fortunately, we develop this new product eventually,not only to meet the ideal image of the HDTV but also to meet the need of the enthusiasts’ requirement for audio.

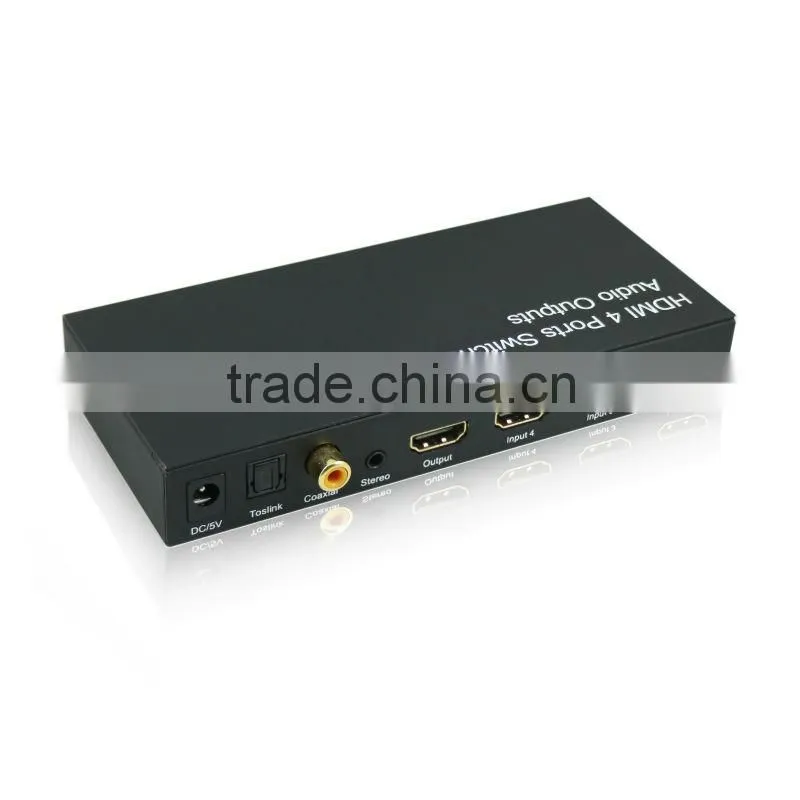

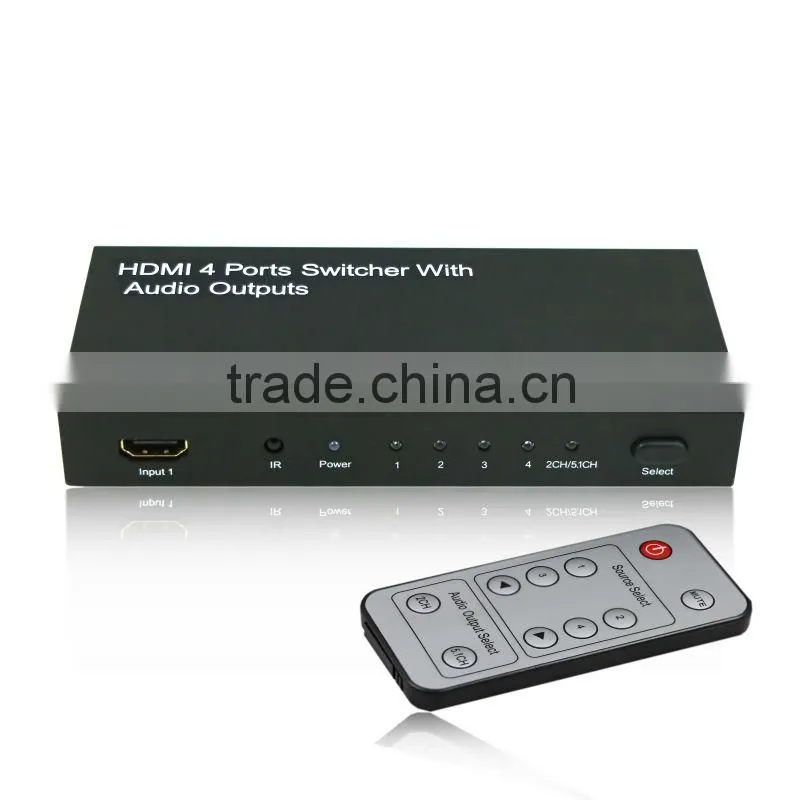

Because it separates the audio signal from the HDMI interface, then transmit to the amplifier by Stereo,Toslink or COAX (RCA).This Switcher has one input port on the front panel, which reduced the switcher to an ideal small size and provides convenience for users to connect portable devices.
HDMI Switcher 4 input 1 output with Audio Support 3D coaxial toslink stereo 3.5mm audio
Features
This HDMI Audio Splitter has many features that enable it to perform in a superior manner. Among those features you will find:
* One input port on the front panel is specialized for portable devices
* Support digital audio output simultaneously : Stereo, Toslink and COAX
* Support HDMI1.3b
* Support highest video resolution 1080p.
* Support 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
* Support 12bit per channel (36bit all channel) deep color.
* Support HDCP.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD).
Specification
Input DDC Signal |
5 volts p-p (TTL) |
Output SPDIF Signal |
SPDIF and COAX |
Maximum Single Link Range |
1920X1080p |
Output Video |
HDMI 1.3b |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
2.25Gbps/225MHz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Size(L-W-H) |
155x70x25mm |
Weight(Net) |
265g |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0°C to +70°C |
Operating Humidity |
10% to 80 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
External Power Supply |
5V DC @2A (supply ) |
Power Consumption (max) |
5 W |
Converter Unit |
FCC,CE |
Power Supply |
CE,FCC |
AC Power Adapter |
US standard, UK standard and so on |
User Manual |
English Version |
Package Contains
1) Main unit (4x1 port HDMI Swicth Switcher )
2) 5VDC Power Supply
3) User Manual
Package : Neutral gift box,color box or custom design
Protech Electronics &Technology Limited, branded as Protech, founded in 2008, located at No.6 Baofu road, Baolai Industry Park, Pinghu Town, Longgang District, Shenzhen, is a market leading manufacturer of HDMI products. Over the years, Protech has gained experience and knowledge in electronic business, market development and the HDMI industry. We have always found pride in our solid quality control, exceptional products, immediate availability and continual product development, a keen sense of what distributors and their customers need to build and grow.
Protech always persists with high quality, it is operated strictly according to the standard operating procedures and rules with the rich and applicable laboratory equipment, high quality so that to makes every client satisfactory. You can find that we have a comprehensive inspection system on the products upon visiting our factory: full inspection on raw material, full inspection on PCB, full inspection on semi-finished products, full inspection on finished products, full inspection and random inspection before packing, random inspection before shipment. This is how we assure the quality of our goods.
Protech is committed to the green products and has the comprehensive RoHS,CE,FCC system. We are also one of the HDMI Adopter manufacturers .
* Office and Factory Outlook
* Production Process
* OEM & ODM
* Certificates
* Exhibition We Attend
Any question or information ,pls feel free to contact me anytime, i will reply you within 2 hours (during working time 8:00am - 5:30 pm ) , within 12 hours (off duty )
