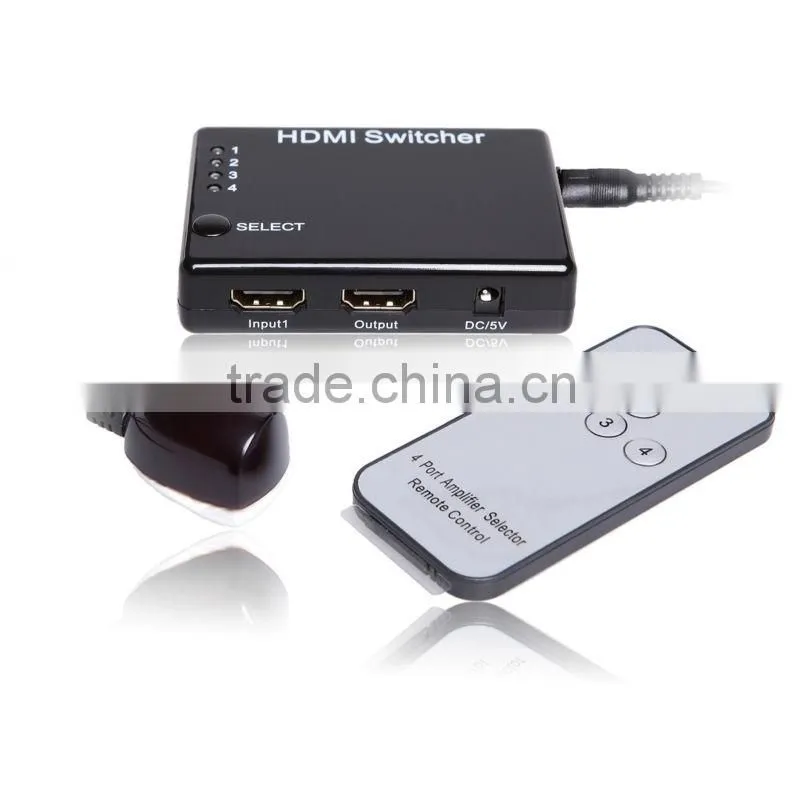

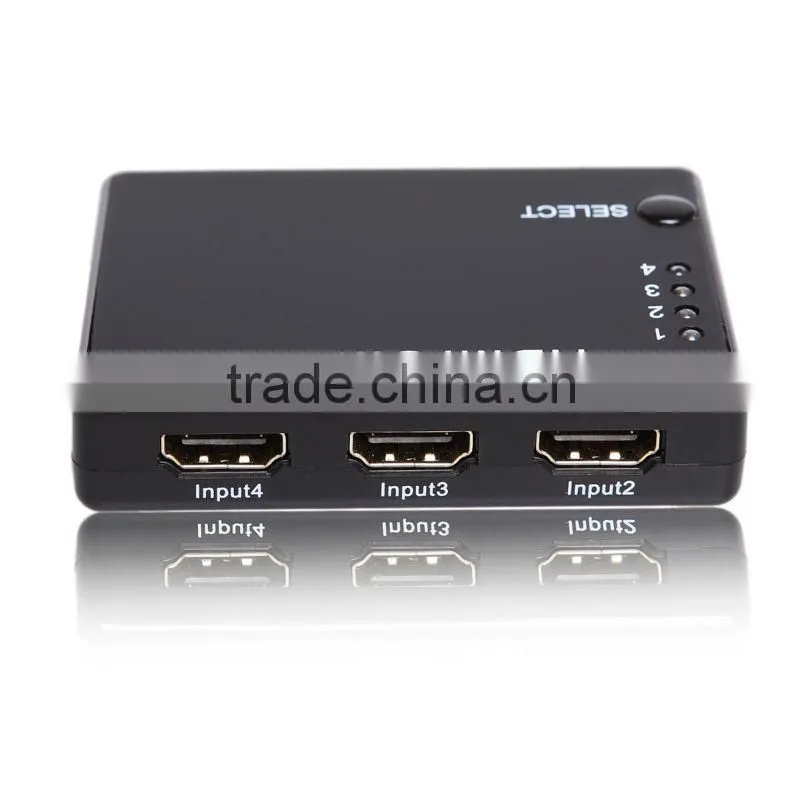

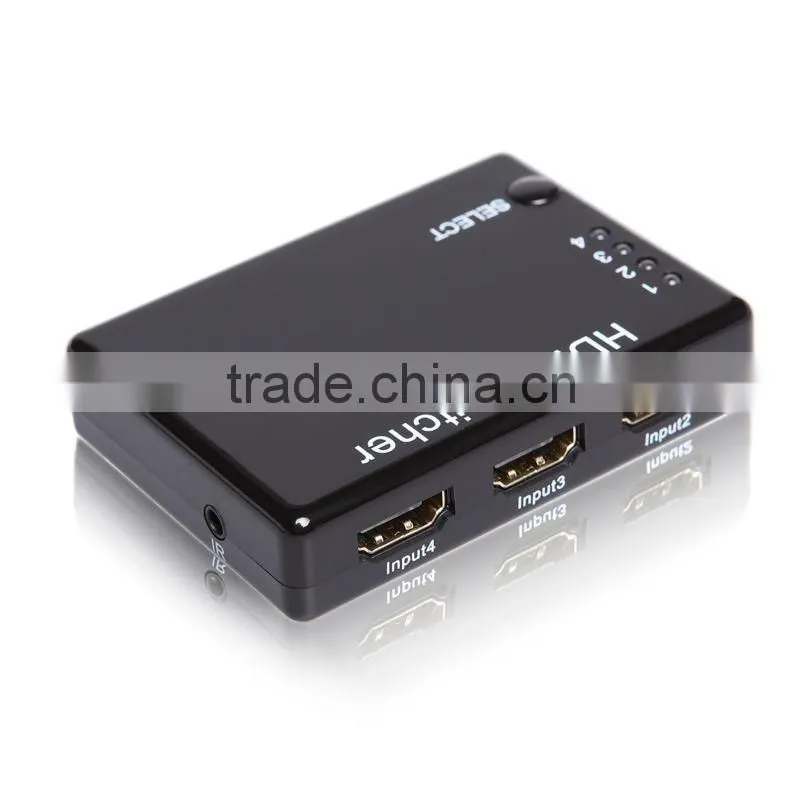

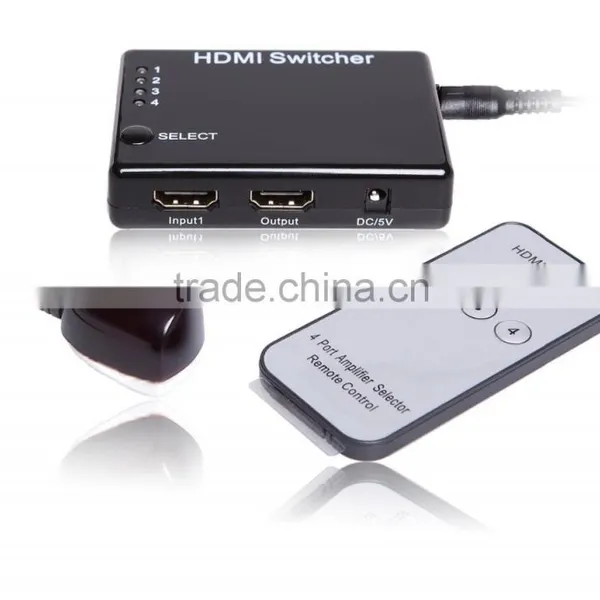

4x1 Support 3D HDMI Switcher 1080p
Description
This is a kind of high performance mini HDMI Amplifier Switcher. This kind of HDMI Amplifier Switcher not only
has the key-presss witching function, but also has the IR remote control and intelligent function.
That is to say, as soon as the power supply of the source equipment is switched, this switcher will respond automatically.
In addition, it is equipped with standard IR extender receiver: safe and convenient.
Intelligent function
1) When supplied with power, this switcher will select the power-on source device depending on
the sequence automatically (input1>input2>input3>input4)
2) Once the source device is turned on or plugged in (should stay power-on mode), the switcher
will automatically select this source.
3) Once the source device is turned off or plugged out, the switcher will automatically select the
next power-on source depending on the sequence automatically (input1>input2>input3>input4)
Note:
1) When the source devices are on the stand-by mode, its power supply should be turned off, otherwise this switcher can not meet intelligent function.
2) When plugged in or out, this switcher is completely intelligent.
Features
* Multifunctional on switching : intelligent or mechanical
* Support HDMI1.3b, HDCP pass-through.
* Support highest video resolution 1080p.
* High performance up to 2.5Gbps.
* Support 12bit per channel (36bit all channel) deep color.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD).
* Support 3D
Specification
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
1920X1080p |
Output Video |
HDMI 1.3b |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
2.5Gbps/250MHz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 °C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
External Power Supply |
No power needed |
Power consumption (Max) |
5W |
IR extender receiver |
|
IR remote |
|
User Manual |
English Version |
Note: Specifications are subject to change without notice.
Package Contents
1)Remote control 1pc
2)IR Receiver 1pc
3)User Manual 1pc
