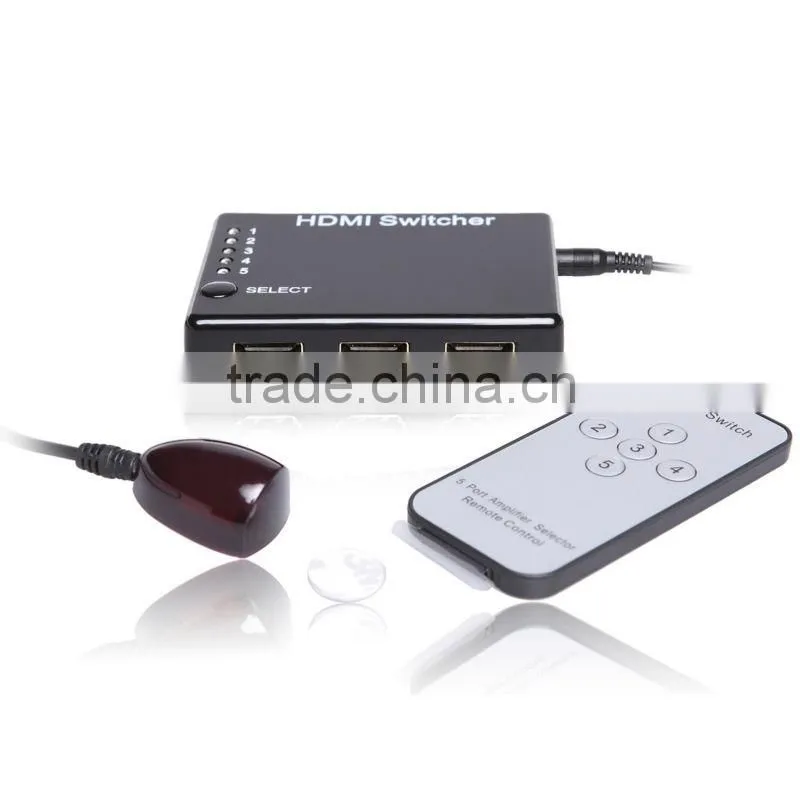

Help CenterChina Supplier 5X1 5 Port HDMI 1.3 Switch Switcher Selector Splitter Hub W/ Remote for HDTV PS3
Related Products
-
Version 1.4 HDMI 5 Port 5x1 Switch IR Remote With Full 3D and 4Kx2K Compatible 1.3 Home Theater Sound SystemUS$ 7 - 35.9MOQ: 50 Pieces -
5 Port HDMI 1080p Switcher 5 in 1 Out HDMI Switch HDMI 1.3a Supports 3D With IR Wireless RemoteUS$ 2 - 8.8MOQ: 100 Pieces
-
HDMI Switchers 4 Input 1 Output With With Audio Amplifier SPDIFUS$ 1 - 40MOQ: 50 Pieces
-
Version 1.4 4K Pigtail Switcher 3X1 Hdmi Switcher 3*1 Support 4kx2k and Full 3dUS$ 1 - 16MOQ: 50 Pieces
-
Hdmi Switch 3 Port Pigtial With 30cm Hdmi Cable PET0301DUS$ 2 - 7MOQ: 100 Pieces
5X1 HDMI Switcher Support LPCM DTS/Dolby Digital
Description

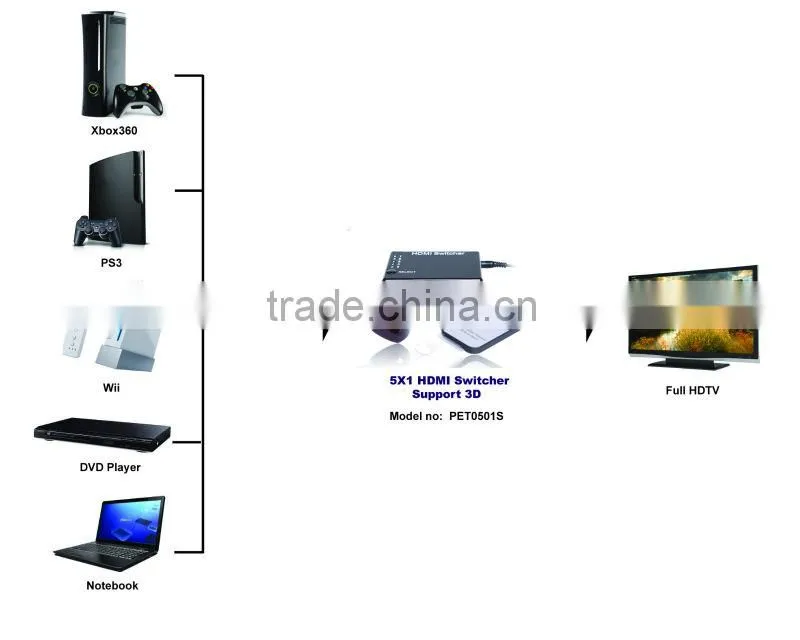

This HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the five sources to display unit. The output sends the high definition audio/video signals to a high definition display. This kind of the HDMI Amplifier Switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function.
Intelligent function
1) When supplied with power, this switcher will select the power-on source device depending on the sequence automatically (input1>input2>input3>input4>input5)
2) Once the source device is turned on or plugged in (should stay power-on mode), the switcher will automatically select this source.
3) Once the source device is turned off or plugged out, the switcher will automatically select the next power-on source depending on the sequence automatically(input1>input2>input3>input4>input5 )
Note:
1) When the source devices are on the stand-by mode, its power supply should be turned off, otherwise this switcher can not meet intelligent function.
2) When plugged in or out, this switcher is completely intelligent.
Features
* Multifunctional on switching : intelligent or mechanical
* Support HDMI1.3b, HDCP pass-through.
* Support highest video resolution 1080p.
* High performance up to 2.5Gbps.
* Support 12bit per channel (36bit all channel) deep color.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD).
* Support 3D
Specifications
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
1920X1080p |
Output Video |
HDMI 1.3b |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
2.5Gbps/250MHz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 °C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power consumption (Max) |
5W |
IR extender receiver |
|
IR remote |
|
User Manual |
English Version |
Note: Specifications are subject to change without notice.
Package Contents
1) Main unit
2) IR receiver
3) Remote control
4) User Manual
