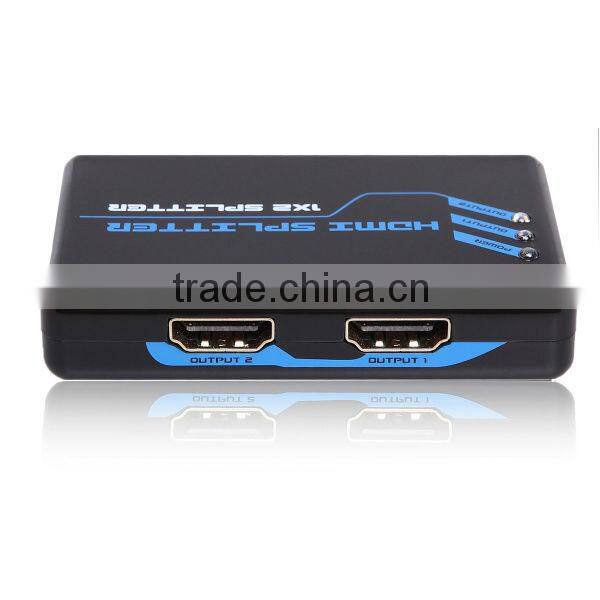

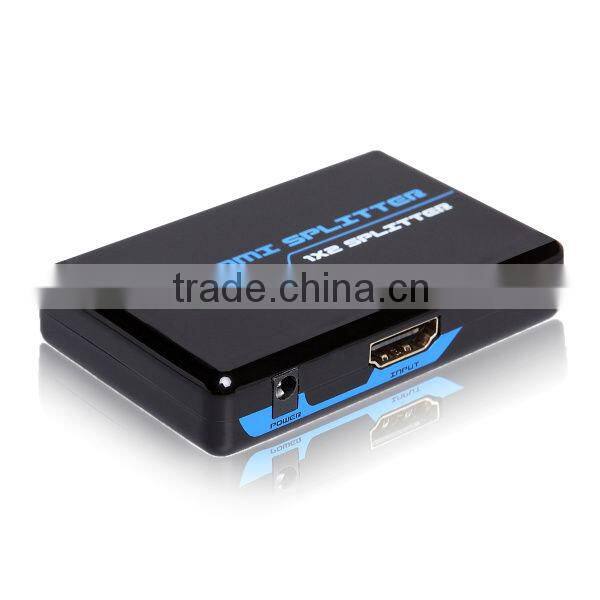

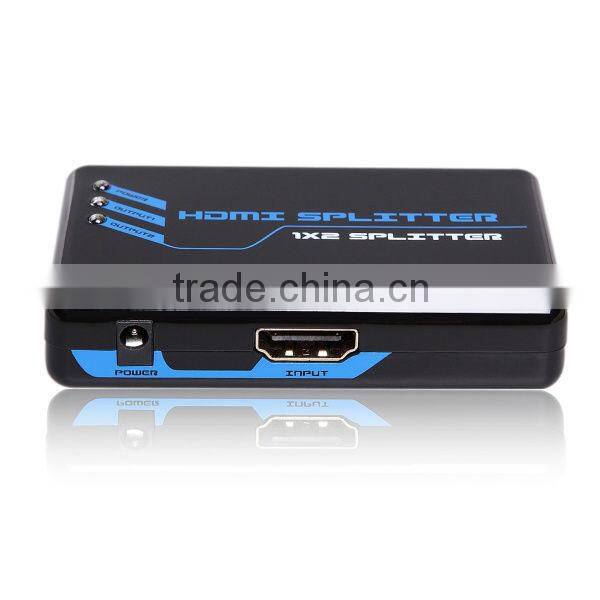

hdmi splitter 1x2 PET0102
Introduction
This splitter is a two outputs HDMI splitter. It distributes the HDMI input into two identical outputs, these two outputs are synchronized. It also has the ability of buffering and amplifying, Series connection of splitter achieves long distance and transmission of HDMI signal of more than 15 meters.

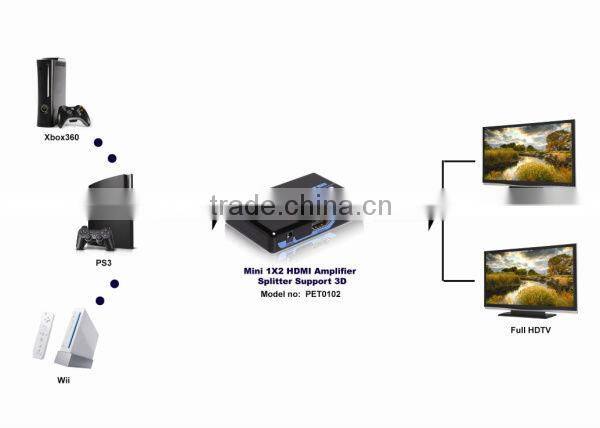

When two or more splitters are cascaded they can be used to create a larger splitter offers solutions for HDTV retail and show site which suitable for HDTV, STB, DVD and Projector, data center control, information distribution, conference room presentation,school and corporate training environments.
Features
* Cascaded: Large distribution achieved by cascading the HDMI Amplifier Splitter.
* Support HDMI1.3b
* Support highest video resolution 1080p.
* Support 2.25Gbps per channel bandwidth.
* Support uncompressed audio such as LPCM
* Support compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD)
* Support 3D
Specification
| Input Video Signal | 0.5 -1.0 volts p-p |
| Output Video | HDMI Signal |
| DTV/HDTV | 480i/576i/480p/576p/720p/1080i/1080P |
| Video Amplifier Bandwidth | 2.25Gpbs/225MHz |
| Vertical Frequency Range | 50/60Hz |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p |
| Limited Warranty | 1 Year Parts and Labor |
| Operating Temperature | 0°C to +70°C |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Temperature | -10°C to +80°C |
| Storage Humidity | 5% to 90 % RH (no condensation) |
| Power Supply | 5V DC |
| Power consumption (Max) | 5W |
| Converter Unit Cert. | FCC,CE, |
| Power Supply Cert | CE,FCC |
| AC Power Adapter | US standard, UK standard and so on |
| User Manual | English Version |
About us
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design,owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection,experienced OEM, ODM production
