good quality HDMI 1 input 4 output splitter hdmi splitter 1x4 for toshiba color tv kit
1.0 Introduction

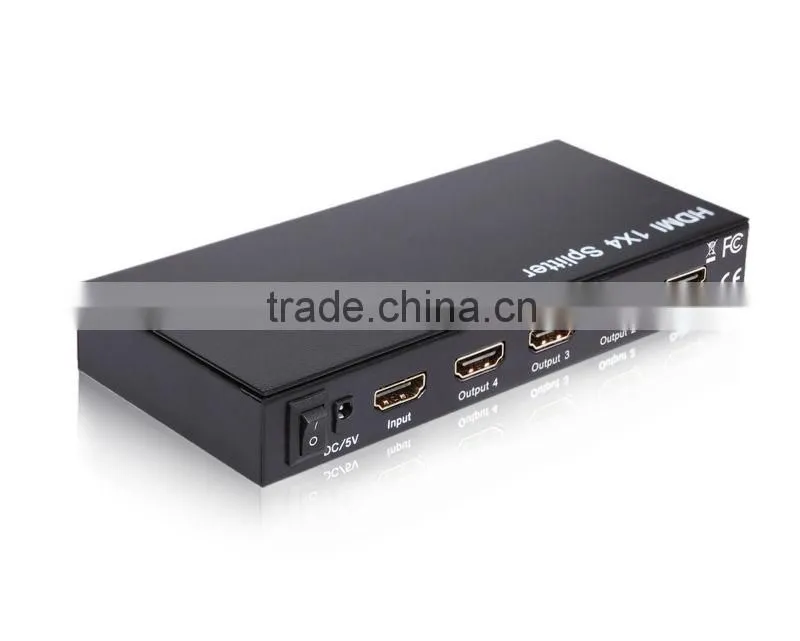

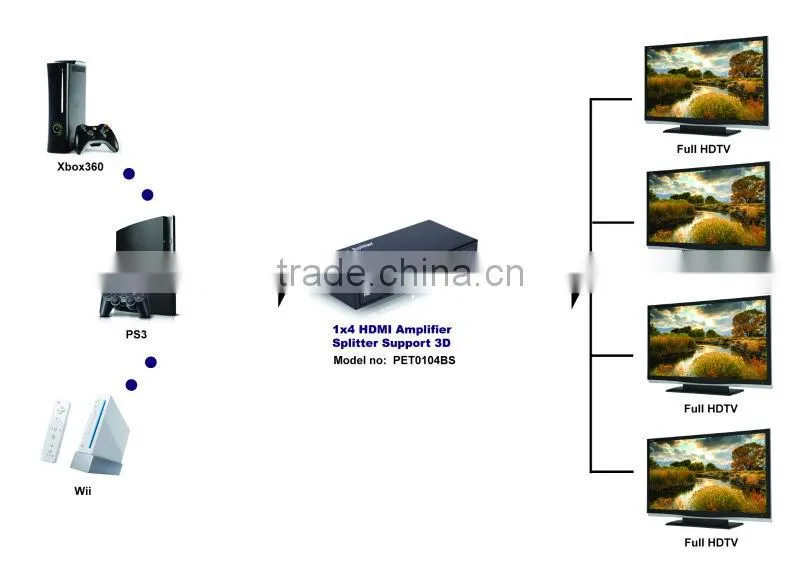

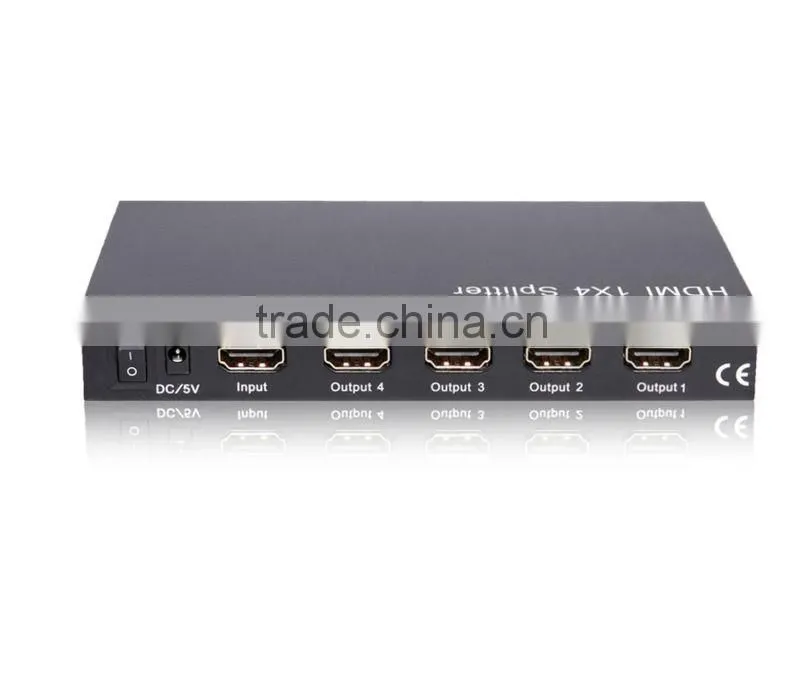

This 4-Port HDMITM Amplifier Splitter lets you share a single HDMITM source signal between four HDMITM enabled displays simultaneously. Supporting True HD 1080p video resolutions, the HDMITM splitter acts as a distribution amplifier that enables you to situate your HDMITM -capable displays up to 50ft (15m) away from the splitter, The HDMITMsplitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMITM output devices such as Blu-ray players or desktop/laptop computers.
2.0 Features
* Support cascade for large distribution purpose
* Support HDMI (with 3D) and HDCP pass-through
* Support highest video resolution 1080p
* Support 2.25Gbps per channel (6.75Gbps all channels) bandwidth
* Support Consumer Electronics Control function
* Support uncompressed audio such as LPCM
* Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master AudioTM and Dolby TrueHD).
Note: Dolby is a trademark of Dolby Laboratories.
3.0 Specifications
Signal Input |
HDMI Signal |
Input Video Signal |
0.5-1.0 volts p-p |
Input DDC Signal |
5 volts p-p(TTL) |
Maximum Single Link Range |
1080p |
Output Video |
HDMI Signal |
DTV/HDTV |
480i/480p/576i/576p/720p/1080i/1080p |
Video Amplifier Bandwidth |
2.25Gbps/225MHz |
Vertical Frequency Range |
50/60Hz |
Interlaced Resolutions(50&60Hz) |
480i,576i,1080i |
Progressive Resolutions(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0℃ to 70℃ |
Storage Humidity |
5% to 90% RH (no condensation) |
Power Supply |
5V DC |
Power Consumption(Max) |
5W |
Splitter Unit Cert |
FCC.CE, RoHS |
Power Supply Cert |
CE,FCC, RoHS |
Power Adapter |
US,UK, EU,AUS etc |
User Manual |
English Version |
4.0 Package & Shipping Contents
1) Main Unit
2) Power Adapter
3) User Manual
