Specifications
1.643086-B212.Full New and Original
3.Good Price from China General Agency
4.It is in Stock
5.Global Coverage

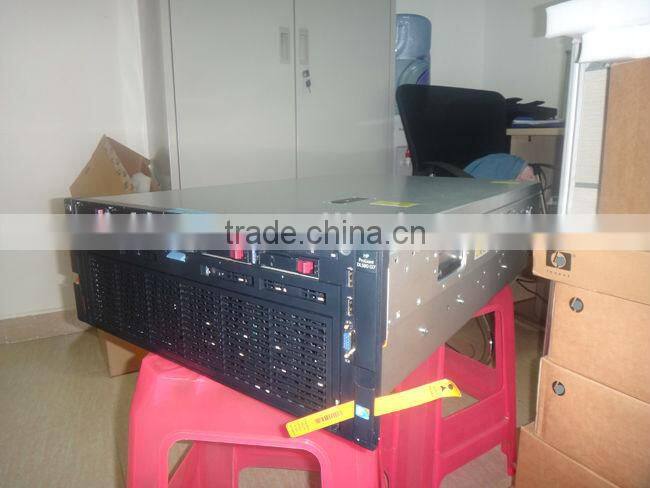

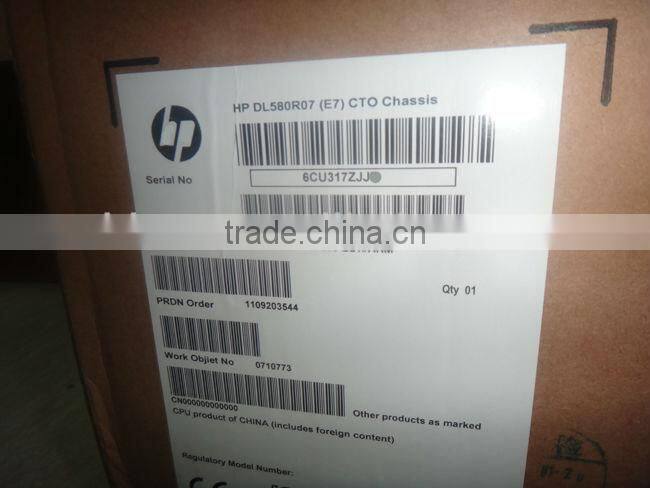

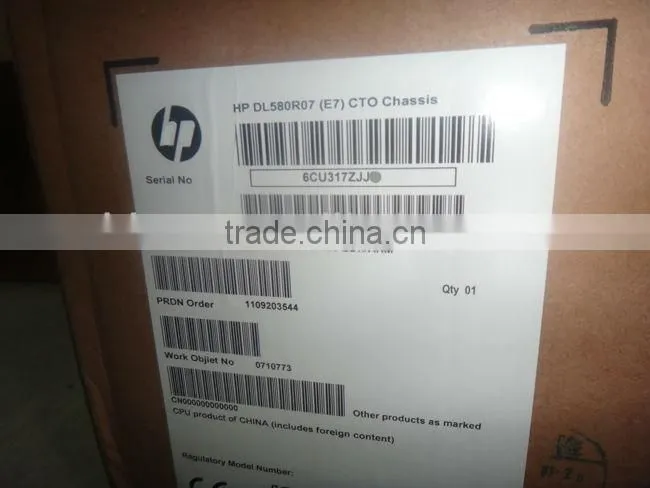

643086-B21 Proliant DL580 G7 E7-CTO Server Chassis
Specification
Part Number: 643086-B21
Product Name: Proliant DL580 G7 4u-Rack Base CTO Server
Processor & Chipset
Processor Type: NO CPU
Max Supported Qty: 4
Processor Supported:
Intel Xeon Ten-Core Processors:
E7-4870 (2.40ghz/10-Core/30mb/130w)
E7-4860 (2.26ghz/10-Core/24mb/130w)
E7-4850 (2.00ghz/10-Core/24mb/130w)
E7-8867l (2.13ghz/10-Core/30mb/105w)
Intel Xeon Eight-Core Processors:
E7-8837 (2.67ghz/8-Core/24mb/130w)
E7-4830 (2.13ghz/8-Core/24mb/105w)
E7-4820 (2.0ghz/8-Core/18mb/105w)
X7560 (2.26ghz/8-Core/24mb/130w)
X7550 (2.0ghz/8-Core/18mb/130w)
L7555 (1.86ghz/8-Core/24mb/95w)
Intel Xeon Six-Core Processors:
E7-4807 (1.86ghz/6-Core/18mb/95w)
E7540 (2.0ghz/6-Core/18mb/105w)
E7530 (1.86ghz/6-Core/12mb/105w)
X7542 (2.66ghz/6-Core/18mb/130w)
Intel Xeon Quad-Core Processors:
E7520 (1.86ghz/4-Core/18mb/95w)
Upgradability: Upgradable
Chipset Type: Intel 7500
Memory:
Installed RAM Size: 0 Mb / 1 Tb (Max)
Technology: DDR3 SDRAM
Memory Speed: 1333 Mhz ( PC3-10600 )
Form Factor: DIMM 240-Pin
Storage:
Hard Drive: None Ship Standard.
Storage Controllers:
Storage Controller Type: 1 X RAID - Integrated - PCI Express 2.0 X4
Controller Interface Type: Serial ATA-300 / SAS 2.0
Storage Controller Name: Smart Array P410i
RAID Level: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Buffer Size: 256 MB
Display & Graphics:
Graphics Controller Type: Integrated
Graphics Processor: ATI ES1000
Video Memory: 64 MB
Network & Communication:
Networking: Network Adapter - PCI Express 2.0 X8 - Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller(S): NC375i
DATA Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out 3
Features: Wake On LAN (WOL), ACPI Support, PXE Support
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)
