HDMI Matrix Nice and Hot sale 4in 2 displys
1.0 Introduction

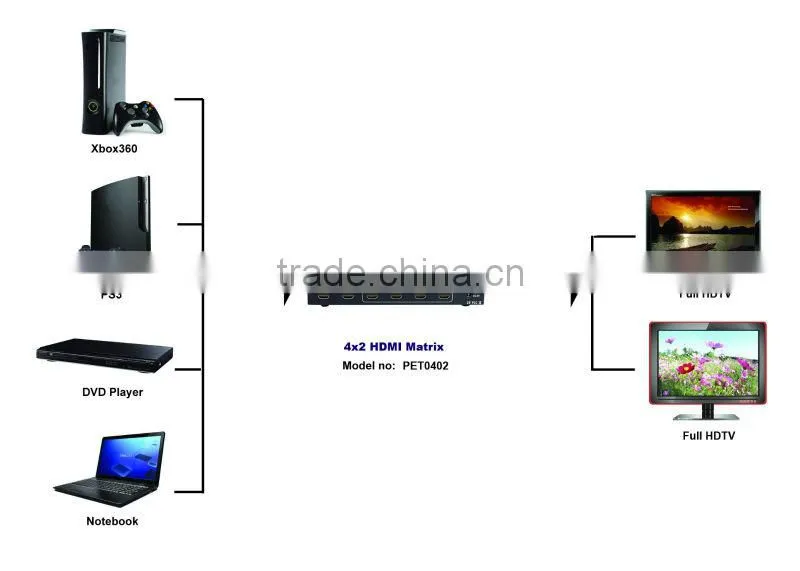

The HDMI SWITCH SPLITTER Matrix routes high definition video in multiple resolutions up to 1080p
plus multichannel digital audio from any of the four HDMI sources to two displays. Two outputs give you the choices
of sending high definition audio and video signals up to two displays.
Any four to any two matrix switching allows for maximum versatility for integrated systems.
It eliminates the needing of disconnects and reconnects sources to a display equipped with one input.
It works with HDDVD players, Blue Ray DVD, PS3, and satellite set top boxes that connect to two HDMI displays.
Every source is accessible at all times by any display by selecting it with an IR remote.
2.0 Features
* Supports audio output simultaneously: Stereo, Toslink and Coaxial
* “2CH” and “5.1CH” can be selected using Remote control for output A. 5.1CH can be sent by Toslink and Coaxial
* Supports highest video resolution 1080p and HDCP.
* Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
* Supports 12bit per channel (36bit all channel) deep color.
* Supports uncompressed audio such as LPCM.
* Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD).
* Support 3D
3.0 SPECIFICATIONS
Signal Inputs |
HDMI Signal |
Output Video |
HDMI / AUDIO / COAX / SPDIF Signal |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
2.25Gbps/225MHz |
Interlaced Resolutions(50&60Hz) |
480i,576i,1080i |
Progressive Resolutions(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0°C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Supply |
5V DC@2A |
Power consumption (Max) |
8W |
Converter Unit Cert. |
FCC,CE, |
Power Supply Cert |
CE,FCC |
User Manual |
English Version |
4.0 Package Contents
1) Main unit.
2) 5V DC Power Supply
3) Remote Control
4) User Manual
About us:
Protech Electronic & Technology Limited,brand as Protech is a market leading manufacturer of HDMI products.Our compay was founded in 2008.Over the years,Protech has gained experience and knowledge in electronic business,market development and the HDMI industry.We have always found pride in our solid quality control,exceptional products,immediate availability and continual product development.A keen sense of what disteibutors and their customers need to build and grow
Office & Factory Outlook:
Production Flow :
Pre-Sale: Respond Customer's inquiry in 12 hours, answering all reasonable questions raised, help make sales plans, recommend products for different market, help customer with custom-design packages etc.
On-Sale: after order is placed, we will keep close eyes on the production schedule to make sure the cargo will be delivered in time as promised. and cargo will be inspected for 4 times before delivery.
After-Sale: after the cargo is dispatched, we will help to track the goods and notity customer when cargo arrrived the destination. also, we will keep an eye on the cargo sales status. If the end user came across a problem, we can offer technical support/suggestions, etc.
Warranty: 2 years warranty for long-term business customers.
Back-up: product defect rate is almost 0%, but if a product needs repair, we can help to do that. if the products is unable to repair, we will send new one for replacement.
OEM & ODM:
Certification:
Exhibition we attend:
You are warmly welcome to contact me for more information:
Iris Huang
Tel: +86 75589205902ext.639
Skype: sales90-5
QQ: 2144174257
Send Inquiry to This Supplier
