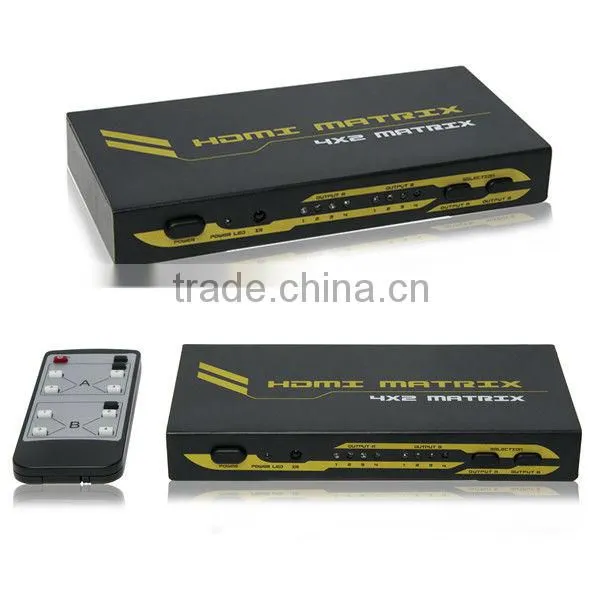

1080P HDMI Matrix 4X2 HDMI Matrix Switch 4 In 2 Out
Item: hdmi matrix, hdmi matrix 4 in 2 out, hdmi switcher splitter 4x2, hdmi matrix switcher 4 in 2 out
1.0 Introduction
The HDMI Matrix 4x2 routes high definition video in multiple resolutions up to 1080p plus multichannel digital audio from any of the four HDMI sources to two displays. Two outputs give you the choices of sending high definition audio and video signals up to two displays. Any four to any two matrix switching allows for maximum versatility for integrated systems. It eliminates the needing of disconnects and reconnects sources to a display equipped with one input. It works with HD-DVD players, Blue Ray DVD, PS3, and satellite set top boxes that connect to two HDMI displays. Every source is accessible at all times by any display by selecting it with an IR remote.
2.0 Features
* compliant with HDMI 1.3
* Supports highest video resolution 1080p and HDCP.
* Supports 225MHz/225Gbps per channel (6.75Gbps all channel) bandwidth
* Supports 12bit per channel (36bit all channel) deep color.
* Supports uncompressed audio such as LPCM
* Support 3D
3.0 Specifications
Signal Input |
HDMI Signal |
Output video |
HDMI Signal |
Vertical Frequency Range |
50/60Hz |
Video. Amplifier Bandwidth |
2.25Gbps/225MHz |
Interlaced Resolutions(50&60Hz) |
480i,576i,1080i |
Progressive Resolutions(50&60Hz) |
430p,576p,720p,1080p,4k x2k |
Limited Warranty |
1 Year Parts and labor |
Operating Temperature |
0℃ to 70℃ |
Operating Humidity |
10% to 85%} RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90%} RH (no condensation) |
Power Supply |
5V DC@2A |
Power consumption |
5W |
Converter Unit |
FCC.CE |
Power Supply Cert |
CE,FCC |
User Manual |
English Version |
Note: Specifications are subject to change without notice.
4.0 Package Contents
l) Main unit
2) 5V DC Power supply
3) Remote Control
4) User Manual
Which type of power adaptors do you want ?
EU, US, AU, CN Standard are available for your choice.
Packages available
1. Neutral gift box or custom design beautiful in appearance
2. Bubble pack reduce cost to least
1) We are member of HDMI Association(can be found on HDMI official website ), you won't have any import problem when work with us.
2) We are specialize in HDMI Accessory for more than 7 years, have professional R&D department, and QC department.
3) With possession of complete SMT machines, we can better control goods quality and lead time.
4) 7 years exporting experience, we can do perfect OEM order.
SMT (Surface Mounted Technology) Machines for pasting PCBA
Protech Electronics &Technology Limited, branded as Protech, founded in 2008, located at No.6 Baofu road, Baolai Industry Park, Pinghu Town, Longgang District, Shenzhen, is a market leading manufacturer of HDMI products. Over the years, Protech has gained experience and knowledge in electronic business, market development and the HDMI industry. We have always found pride in our solid quality control, exceptional products, immediate availability and continual product development, a keen sense of what distributors and their customers need to build and grow.
Protech always persists with high quality, it is operated strictly according to the standard operating procedures and rules with the rich and applicable laboratory equipment, high quality so that to makes every client satisfactory. You can find that we have a comprehensive inspection system on the products upon visiting our factory: full inspection on raw material, full inspection on PCB, full inspection on semi-finished products, full inspection on finished products, full inspection and random inspection before packing, random inspection before shipment. This is how we assure the quality of our goods.
Protech is committed to the green products and has the comprehensive RoHS,CE,FCC system. We are also one of the HDMI Adopter manufacturers .
* Office and Factory Outlook
* Production Process
* OEM & ODM
* Certificates
* Exhibition We Attend
Best buy 4 in 2 out hdmi matrix switcher switch audio and video signals to two different displays
Q1. Is your company a trading company or a factory company?
Answer:Our company is a factory company, located at NO.6 Baofu Road, Shangmugu Baolai Industrial Park,Ping Hu Town, Long Gang District,ShenZhen, Guangdong, China. You are warmly welcome to visit our company!
Q2. What 's the advantage of your company?
Answer: Our company is a manufacturer and HDMI adopter, so we can handle hdmi products legaly and offer products with high quality at factory price. Our products get releated certificate such as CE, FCC, RoSH, REACH,etc and all of them have to be strictly inspected before any production process.
Q3: What kind of payments and shipments can you offer?
Answer: We accept paypal, bank transfer, moneygram, wester union,etc; DHL, UPS,EMS,FEDEX,TNT, by air, by sea are all acceptable.
Q4: What kind of warranty can you offer?
Answer: Our excellent after-sales team will do our best to serve you. We offer one one year warranty for our products without man-made damages.
/
