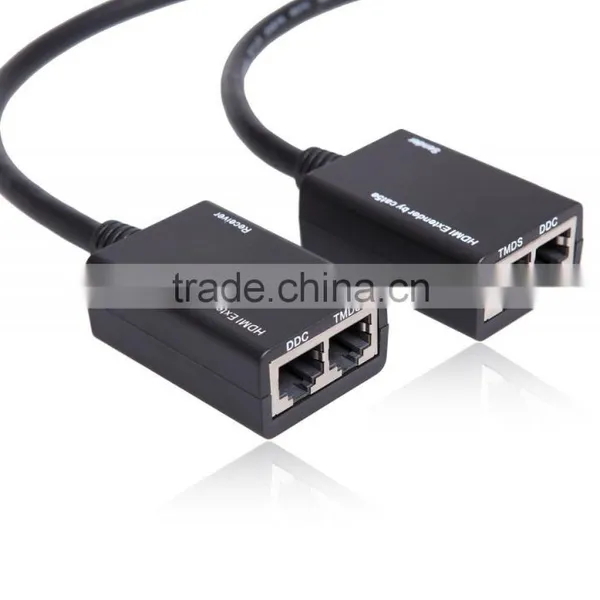

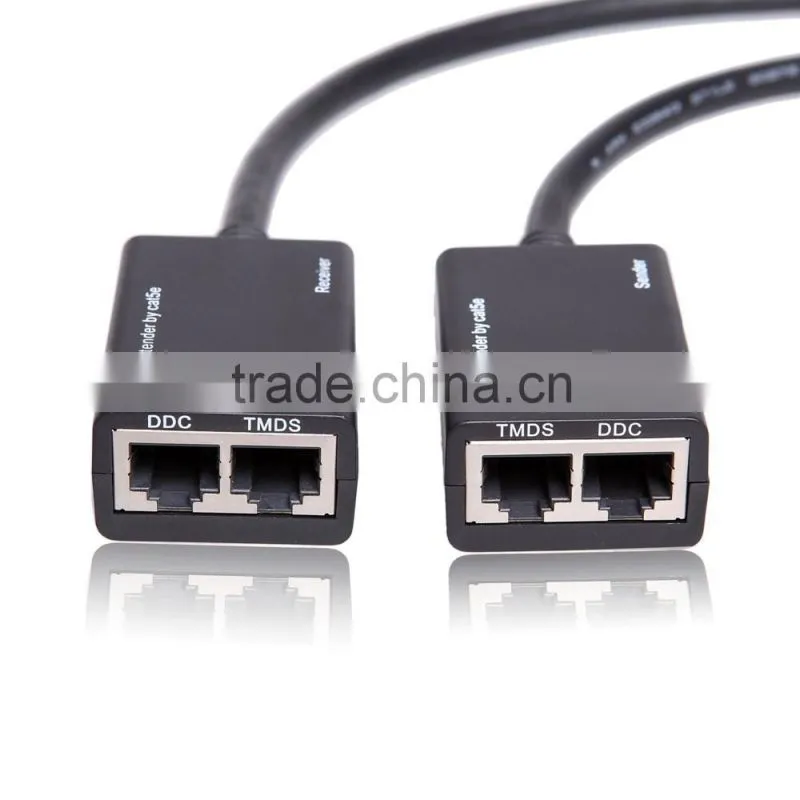

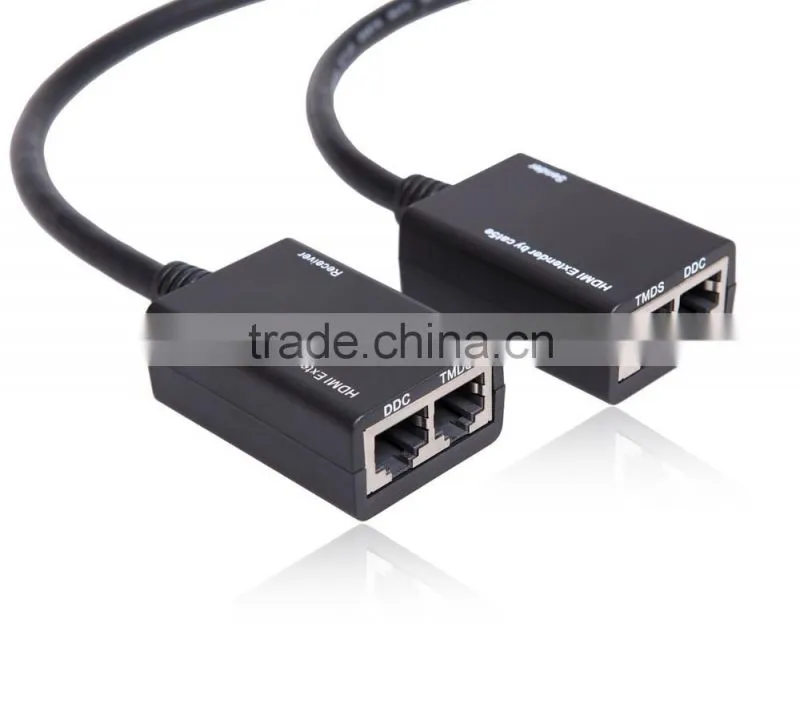

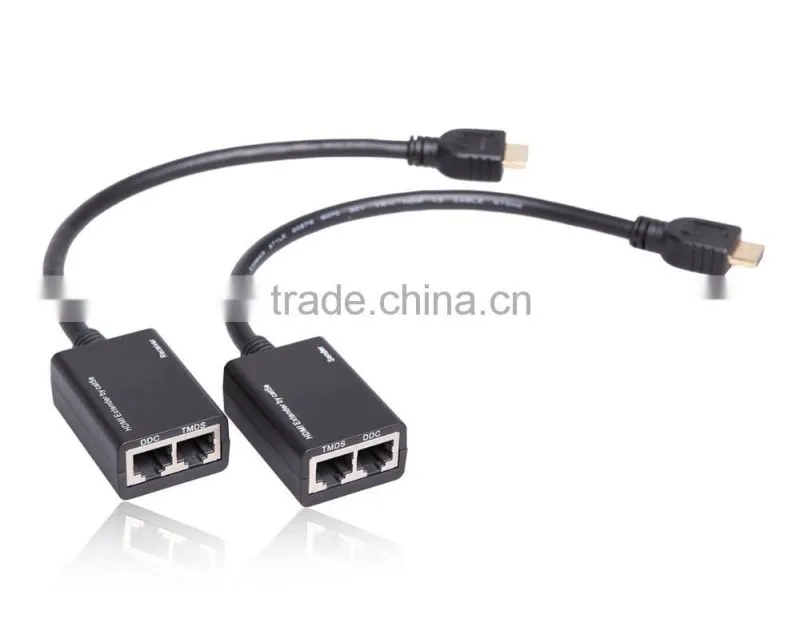

HDMI extender by Cat5e/6 cable 30m 1080p without power needed support 3D convenient for home theater
1.0 Introduction
The HDMITM video Extender lets you extend HDMITM video and audio by up to 100 feet (30 Meters) over dual Ethernet cables. With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For cost-saving, the extender can power over HDMITM Cable and does not require a power adapter, you can easily extend an HDMITM signal in areas where access to power outlets is limited.
2.0 Features
* Use cost-saving Ethernet cable to achieve long distance transmission
* Power over HDMI
* Follow the standard of IEEE-568B
* Transmission distance can be up to 30m@1080p via Cat-6 Cable
* Support highest video resolution 1080p
* Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
* Support 8bit per channel (24bit all channels) deep color
* HDCP pass-through
* Support uncompressed audio such as LPCM
* Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master AudioTM and Dolby TrueHD).
* Support 3D
Note: Dolby is a trademark of Dolby Laboratories.
3.0 Specifications
Input Video Signal |
0.5-1.0volts/p-p |
Input DDC Signal |
5 Volts p-p (TTL) |
Maximum Single Link Range |
1080p |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
1.65Gbps/165MHz |
Transmission Distance(via Cat-6 Cable) |
30m@1080p |
Interlaced Resolutions(50&60Hz) |
480i,576i,1080i |
Progressive Resolutions(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0℃ to 70℃ |
Operating Humidity |
10% to 85% RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90% RH (no condensation) |
Power Supply |
Power over HDMI |
Power Consumption(Max) |
5W |
Extender Unit Cert |
FCC.CE, RoHS |
User Manual |
English Version |
4.0 Package & Shipping Contents
1) Main Unit NO.1 Sender
2) Main Unit NO.2 Receiver
3) User Manual
