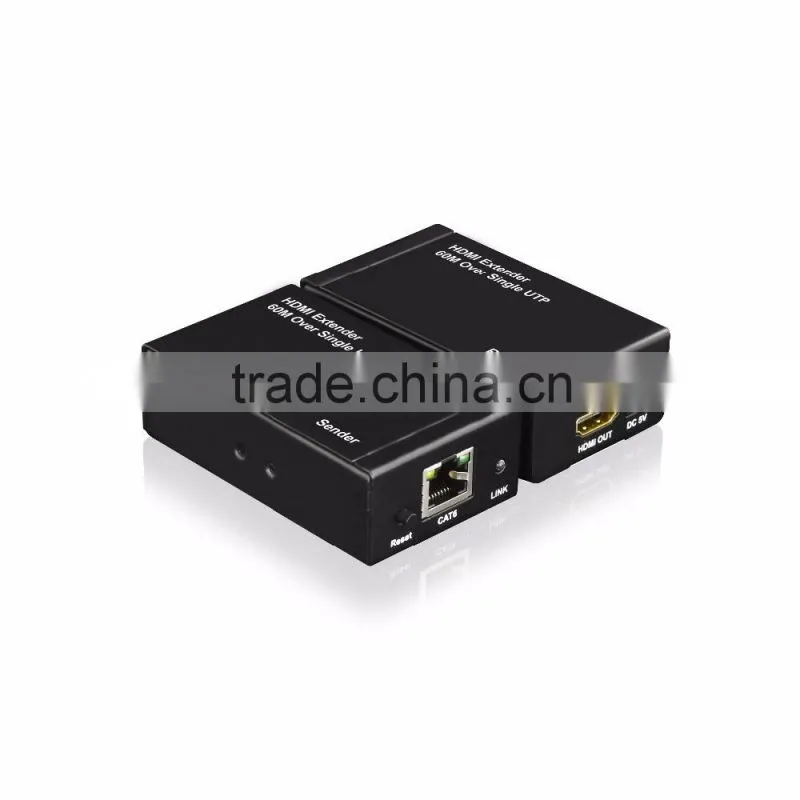

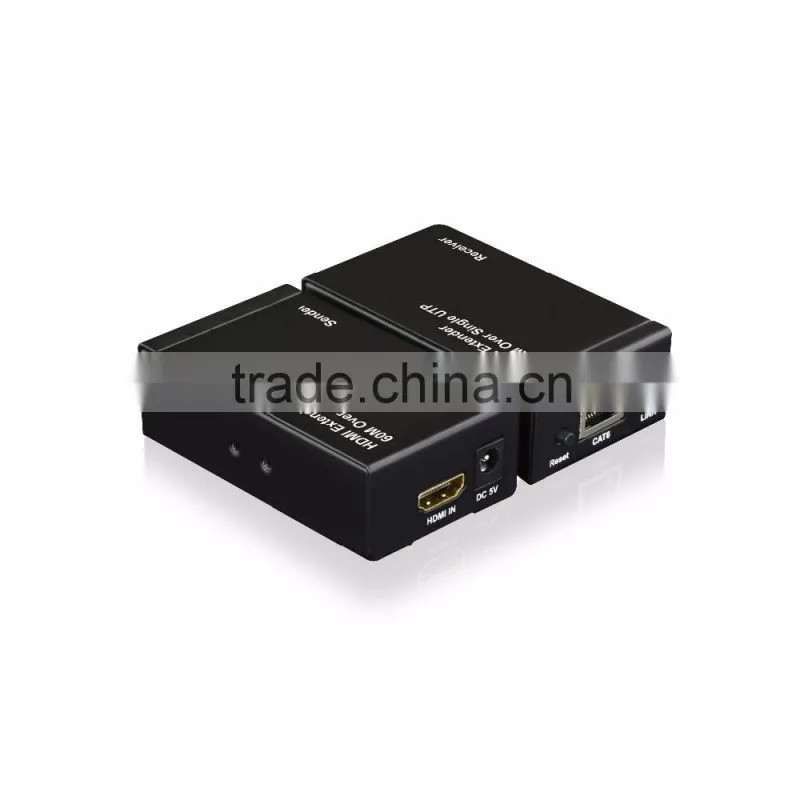

2016 Lower Price 60m Hdmi Extender Over Single Cat6/Cat.5e Cable RJ45 HDMI Extender
US$ 3.5 - 40
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
Protech
Model Number:
PET40E
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HDMI EXTENDER 120M OVER TCP/IPUS$ 11.5 - 70MOQ: 50 Pieces -
Hot Video Player HDMI Over CAT5/CAT6 Extender With Power Over Cable Support 1080pUS$ 26 - 30MOQ: 100 Pieces
-
New Premium 1080p Extension Cable With HDMI Extender Adapter Over 1 Single UTP Cable Support 50MUS$ 26 - 30MOQ: 100 Pieces
-
HDMI Network Extender 60m/190ft 1080P HD HDMI Network Extender Over Single Cat6/5e Ethernet Cable ChromecastUS$ 16 - 20MOQ: 100 Pieces
-
HDMI Extender Cat5e x1 Max up to 60m Qbox hd Receiver HDMI Extender 1080p SupportedUS$ 16 - 20MOQ: 100 Pieces
Brand Name
Protech
Model Number
PET40E
Place of Origin
Guangdong, China
60m hdmi extender over single Cat6/Cat.5e cable RJ45 HDMI Extender
Specification:
| HDMI Extender by CAT5e/6 | 60m hdmi extender over single Cat6/Cat.5e cable RJ45 HDMI Extender |
Model NO. |
PET40E |
Input Video Signal |
0.5 -1.0 volts p-p |
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
1920X1200, 1080P |
Output Video |
HDMI 1.2a |
DTV/HDTV |
1080P/1080i/720P/576P/480P/576i/480i |
CAT-6 cable |
50M for1080p |
CAT-6 cable |
100M for480p |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Size(W-H-D) |
45mmW x 25mmH x 81mmD |
Weight(Net) |
0.246KGs |
Power Consumption |
5Watts (max.) |
Limited Warranty |
2 Year Parts and Labor |
Operating Temperature |
0°C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 95 % RH (no condensation) |
External Power Supply |
5V DC@2A |
Converter Unit |
FCC,CE |
Power Supply |
CE,FCC |
AC Power Adapter |
US standard, UK standard and so on |
Description
This Toslink Digital to Coaxial Digital Converter by CAT-5e/6 uses two pieces of CAT-5e/6 cables to extend the HDTV display up to 50 merters for 1080p while using CAT-6 cable. It not only breaks the limitation of the HDMI cable transmission length but also CAT-5e/6 has more flexibility and convenience in cable construction.
It is equipped with HDMI (high definition multimedia interface) connectors and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.
E60 offers solutions for residential consumers: HDTV retail and show site, HDTV, STB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
BENEFITS
1) The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves. However CAT-5e/6 cables are available everywhere and be processed easily by the user or installer.
2) Because the header of the long HDMI cable is big, using it must in hidden method. What's more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However, CAT-5e/6 cable has no such problems.
3) Using E60, the transmission distance can be up to 50 meters for 1080p using CAT-6 cable. For the general HDMI cables, they must be customized when the length is over 10 meters.
Diagram
Features
This kind of the HDMI Extender have many features that enable them to perform in a superior manner. Among those features you will find:
* One pair as a full functional module, no need of setting.
* CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
* Follow the standard of IEEE-568B.
* Transmission distance can be up to 60 meters for 1080p, 120meters for 1080i, using CAT-6 Cable.
* Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
* Compact size.
* Signaling rates up to1.65Gbps in support of 1080P display.
Advantages
1) We are one member of HDMI Association, export to any country is legal .
2)Specialized in HDMI products manufacture more than 6 years, stronger research and development team
3) 0 Risk for clients.More overseas exhibitions (Hongkong,Americal,Brazil,Germany etc.) are convenient for testing our products
4) Most regular customers from U.S.A , Brazil, Europe countries, Russia, Australia
5) OEM, ODM service avaliable
6) Stronger aftersales (RMA) service as manufacture.
7) Certs : CE, FCC, RoHS, HDMI Power Adaptor
Package Content
1) Main unit NO. 1 Sender
2) Main unit NO. 2 Receiver
3) User Manual
4) Power Adaptor
Company Image
Production Flow
Our Service:
1)Profession sales service can provide you good choice
2)Any defects occurs within warranty can be solved by us with free charge, freight not included
3)We provide resolve methods for you
4)Good after sales service.
OEM & ODM
Certification
Exhibition
