LP11000-E

LP11000-E thumbnail-1
LP11000-E photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Server
Type:
Wired
Contact Supplier Request Quote Chat Now
Shenzhen Hisco Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hong kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Server
Type Wired
Kind Internal
Transmission Rate Other, 4 Gbps
Interface Type PCI-X
Certification UL CE
Brand Name Emulex
Model Number LP11000-E
Place of Origin China

Specifications

1.LP11000-E
2.Full New and Original
3.Good Price from China General Agency
4.It is in Stock
5.Global Coverage

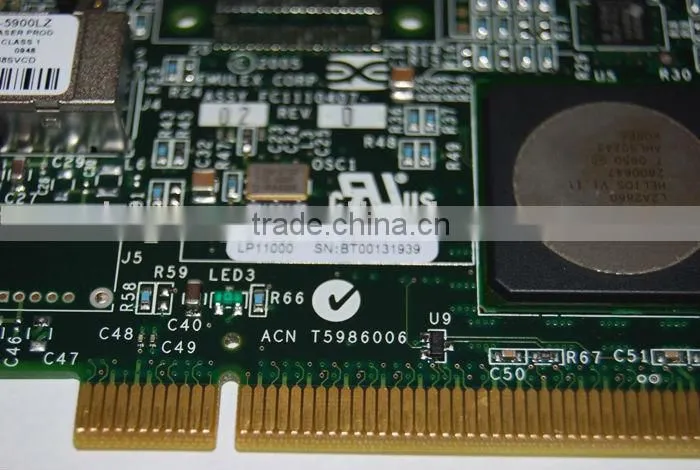

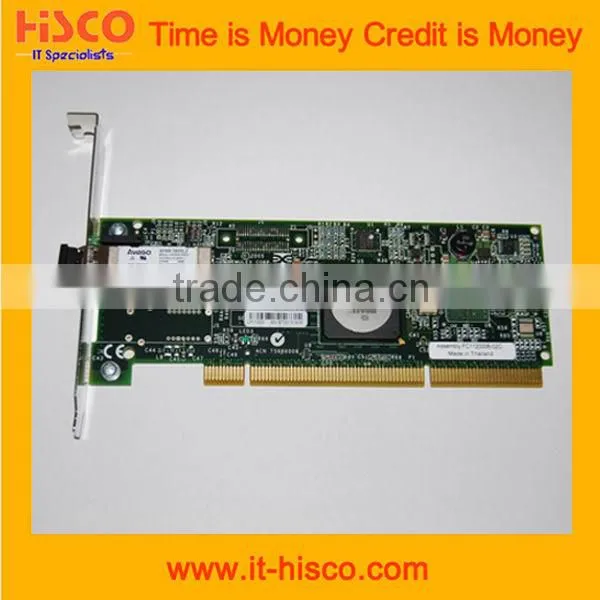

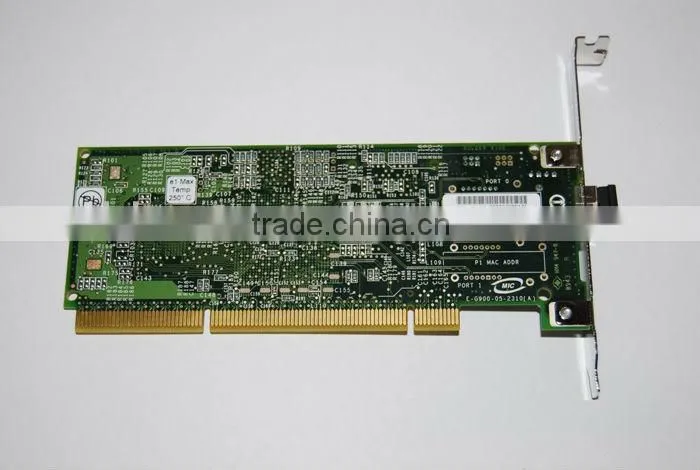

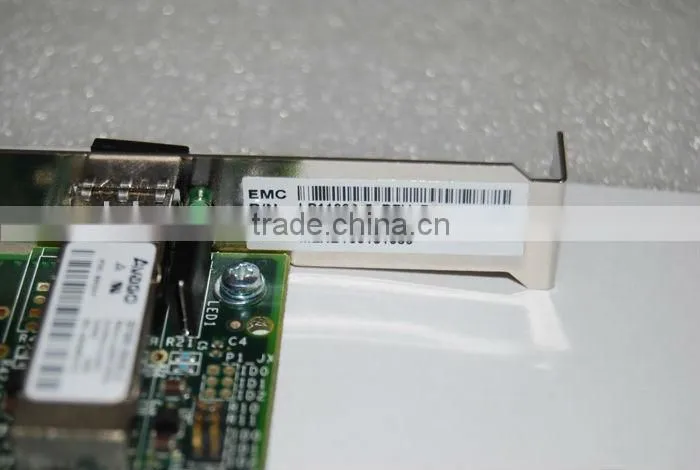

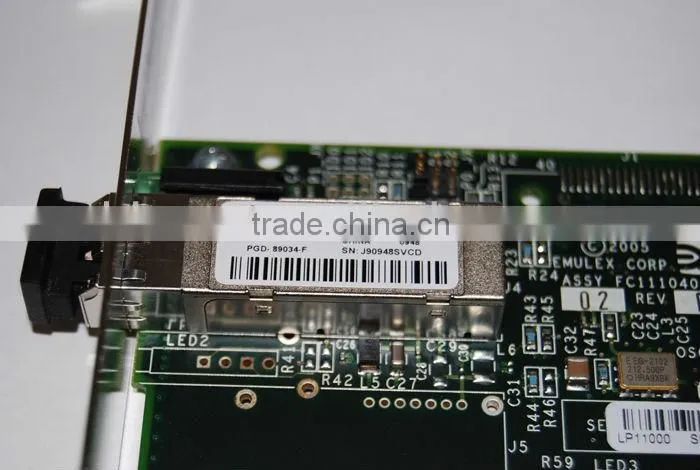

Emulex LightPulse LP11000-E HBA PCI-X Low-profile 4Gb Fibre Channel



Product Descriptions



Ports/Channels 1 x FC Fibre Channel
Data Transfer Rate 4 Gbps Fibre Channel
Host Interface PCI-X
Form Factor Low-profile



Extended specifications




Technical Information

Ports/Channels 1 x FC Fibre Channel
Host Interface PCI-X



Media & Performance

Data Transfer Rate 4 Gbps Fibre Channel



Physical Characteristics

Form Factor Low-profile



Standards
  • ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-SP, FC-TAPE, FCP-2, and RFC 2625 (IP over FC)
  • PCI-X 2.0 and PCI 3.0
  • Fibre Channel class 2 and 3
  • PHP hot plug-hot swap
Architecture
  • Single-channel
  • 4Gb/s, 2Gb/s or 1Gb/s FC Link speeds automatically detected
  • Integrated data buffer and code space memory
 Comprehensive OS Support
  • Widws, Linux, NetWare, Solaris, VMware, HPUX
  • Additional support is available from OEMs and partners
 Hardware Environments
  • x86, x64, and Intel® Itanium® processor family
  • SPARC and PowerPC PCI hardware platforms
  • 32/64-bit 33/66MHz PCI (3.3 signaling)
  • 66/100/133/266MHz PCI-X bus speeds
 Optical
  • Data rates: 1.0625, 2.125 and 4.25Gb/s (auto-detected)
  • Optics: Short wave lasers with LC type connector
  • Cable: 50/125 microns, up to 150 meters at 4Gb/s
    62.5/125 microns, up to 70 meters at 4Gb/s
 Physical Dimensions
  • Short, low profile MD2 form factor card
  • 167.64mm x 64.42mm (6.60" x 2.54")
  • Standard bracket (low profile available)
 Power & Environmental Requirements
  • Volts: +3.3 and 5 VDC
  • Operating temperature: 0° to 55°C (32° to 131°F)
  • Airflow required: 100 lf/m
  • Storage temperature: -40° to 70°C (-40° to 158°F)
  • Relative humidity: 5% to 95% non-condensing
 Agency Approvals
  • Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1
  • UL recognized to UL 60950-1
  • CUR recognized to CSA22.2, No. 60950-1-03
  • TUV certified to EN60950-1
  • FCC rules, Part 15, Class A
  • ICES-003, Class A
  • EMC Directive 2004/108/EEC (CE Mark)
    • EN55022, Class A
    • EN55024
  • Australian EMC Framework (C-Tick Mark)VCCI, Class A
    • AS/NZS CISPR22, Class A
  • MIC (Korea), Class A
  • BSMI (Taiwan), Class A
  • RoHS Compliant (Directive 2002/95/EC) for environmental requirements





LP11000-E











LP11000-E









LP11000-E









LP11000-E









LP11000-E
