Common Mode Inductor/chokes

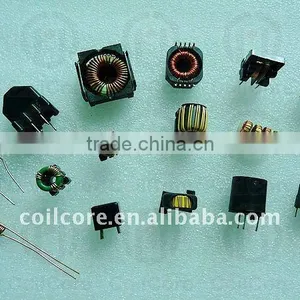

Common Mode Inductor/chokes thumbnail-1
Common Mode Inductor/chokes photo-1
US$ 0.1 - 15 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
coilcore
Model Number:
CC127
Contact Supplier Request Quote Chat Now
Guangzhou Amorphous Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name coilcore
Model Number CC127

common mode inductor/choke
Features
• Separated windings for minimum capacitance
• Meets requitements of EN138100, VDE 0565, part2: 1997-03
and UL1283
• Competitive pricing due to high volume production
• Manufactured in ISO-9001:2000, TS-16949:2002 and
ISO-14001:2004 certified Talema facility
• Fully RoHS compliant

Electrical Specifications @ 25°C
Test frequency: Inductance measured at 0.10VAC @ 10kHz
Test voltage between windings: 1,500 VAC for 60 seconds
Operating temperature: -40°C to +125°C
Climatic category: IEC68-1 40/125/56

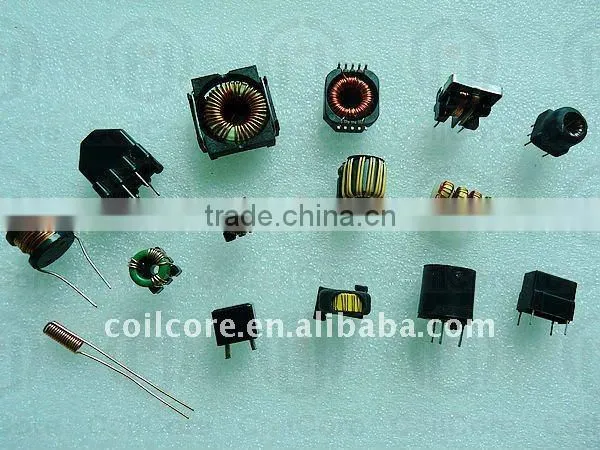

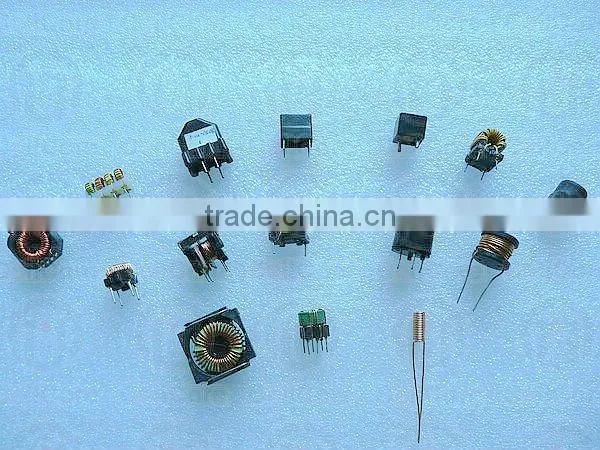

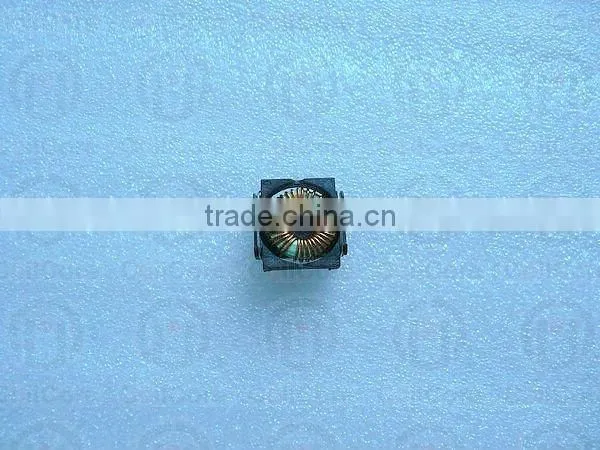

common mode inductor/chokescommon mode inductor/chokescommon mode inductor/chokescommon mode inductor/chokescommon mode inductor/chokes







Core P/N Core dimmensions Finished Dimensions  Core Ae Core Le AL*
nominal
(10kHz)		 AL*
nominal
(100kHz)		 Isat **
I×N
10kHz		 Isat **
I×N
100 kHz		 Weight
odx id x h OD ID H AL Perm.μi AL Perm.
μi		 typical typical
mm mm mm mm cm2 cm μH μH A A g
CMC604520E 60x45x20 64 41 24 1.16 16.5 4.4 5000 4.1 4700     140
CMC1008020C 100x80x20 104 75 23 1.54 28.3 11 16000 10 14500 10.9 13.8 320
CMC1008020E 100x80x20 104 75 23 1.54 28.3 3.4 5000 3.2 4700 38 48 514
CMC1027625A 102x76x25 108 70 30.5 2.5 28 68.8 6000 21.6 19000 3.8 6 514
CMC1027625C 102x76x25 108 70 30.5 2.5 28 19.1 18000 17.2 15000 10.6 13.7 514
CMC1027625D 102x76x25 108 70 30.5 2.5 28 8.4 8000 8 7000     514
CMC1027625E 102x76x25 108 70 30.5 2.5 28 5.6 5000 5.3 4700 38 46 514
CMC13010030A 130x100x30 136 94 36 3.5 36 60.2 50000 24.2 20000 3.8 6 920
CMC13010030B 130x100x30 136 94 36 3.5 36 36.2 30000 21.7 18000 8.3 12 920
CMC13010030C 130x100x30 136 94 36 3.5 36 21.7 18000 18.1 15000 13.8 17.5 920
CMC13010030E 130x100x30 136 94 36 3.5 36 6 5000 5.5 4700 50 65 920
CMC16013025A 160x130x25 166 124 31 2.89 45.6 39.8 50000 15.9 20000 4.8 7.5 950
CMC16013025B 160x130x25 166 124 31 2.89 45.6 23.9 30000 14.3 18000 10 15 950
CMC16013025C 160x130x25 166 124 31 2.89 45.6 14.4 18000 12 15000 17 22 910
CMC16013025E 160x130x25 166 124 31 2.89 45.6 4 5000 3.7 4700 79 81 970
CMC17012025C 170x120x25 178 112 32 2.89 45.6 36.5 18000 30.5 15000     1600
CMC19415525A 194x155x25 201 148 31 3.75 54.8 43 50000 17.2 20000 6.9 12.5 1520
CMC19415525B 194x155x25 201 148 31 3.75 54.8 25.8 30000 15.5 18000 13 19.2 1520
CMC19415525C 194x155x25 201 148 31 3.75 54.8 15.5 18000 12.9 15000 20.7 26.4 1520
CMC20016030C 200x160x30 207 153 37 4.62 56.5 18.4 18000 15.4 15000 21 26 1800
CMC20016030E 200x160x30 207 153 37 4.62 56.5 5.2 5000 4.8 4700 52 65 1800
