Help CenterCommon Mode Choke
Related Products

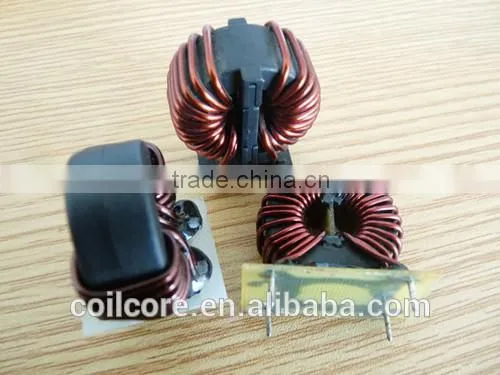

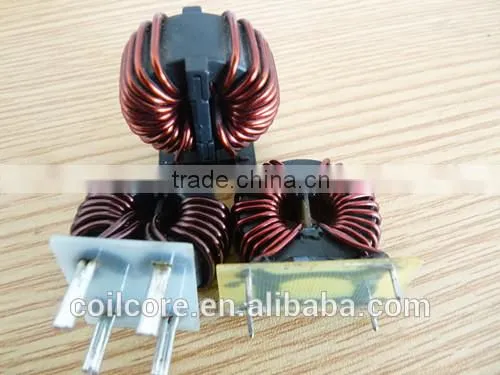

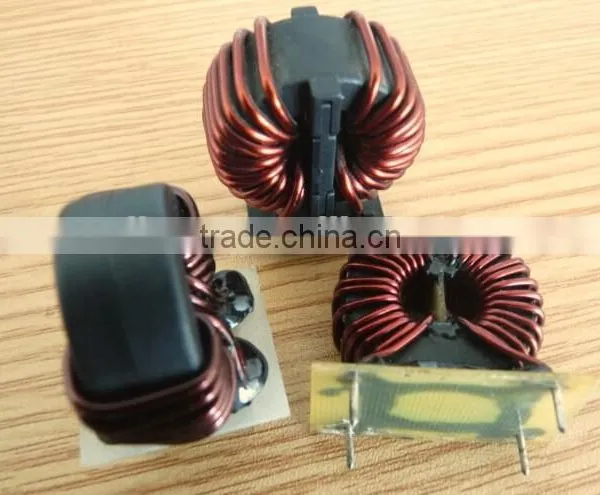

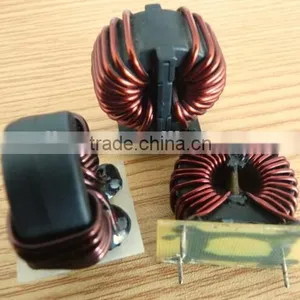

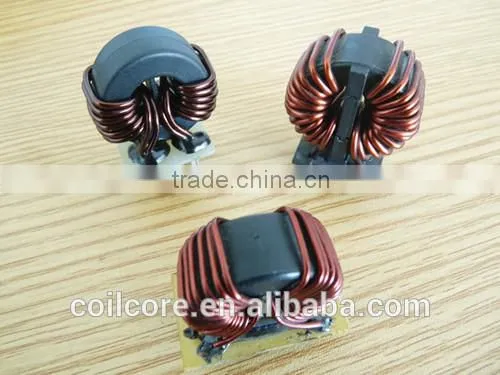

There are some pictures aout the product
Specifications
toroidal inductor, filter inductor, common mode choke
1)Compact and low profile
2)Low DC resistance
3)10uH~100mH
Inductor Applications
1.Suppresses noise in DC circuits for switching regulators. 2.Protects primary AC side form being affected by a switching regulators. 3.Filters electorstic noise from power and signal lines. 4.Eliminates contact noise. 5.Filters incoming spike noise for Ics and equipment using microcomputers. 6.Minimizes noise emissions for conforming to FCC,VCCI,FTZ,CISPR,JTTC andVDE. 7.Minimizes noise emissions from inverters.
Inductor Applies Equipment:
TV,VCR,Switching power sources,NC machines,Computer systems Peripheral units and measuring instruments.
Inductor Electrical Characteristics:
1.Operating Temperature range:-20 to +45 2.Storage temperature: -40to +70 3.Switching frequency:1KHz to 200KHz 4.Withstanding voltage:1500/3750Vac for 1 minute between primary&secondary 5.Insulation resistance:500Vdc 100MΩ min.between primar&secondary.
Pls send us the following information via E-mail for quote:
1.Spec including bobbin, core dimension and winding drawing.
2.the quantity.
