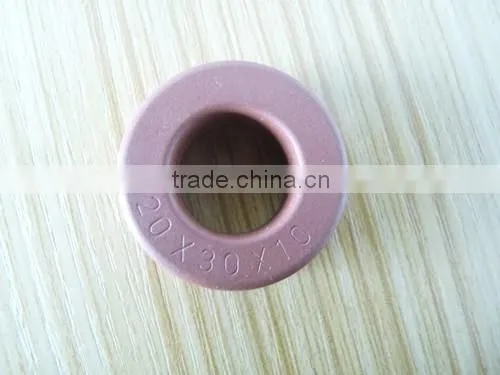

 Free sample nanocrystalline core, nanocrystalline toroidal core for current transformer

 Free sample nanocrystalline core, nanocrystalline toroidal core for current transformer





tals introduces a new line of toroidal cores utilizing the superior performance of amorphous alloy. This new product line is called HFC; High Frequency Choke.
The advantages of an HFC core are its high saturation flux density, low core losses, high DC Bias characteristic, and excellent inductance stability at elevated temperatures.
Magnetic Metals offers ten standard sizes of cores in the HFC series, with three different permeability values. This provides engineers with a wide selection for their designs.
HFC cores are in stock and ready to ship

Advantage

HFC have low core loss especially at high frequencies, this special feature is ideal for many applications looking to reduce heat dissipation.
HFC cores have Saturation Flux Density of 15.6 KGauss as compared to 8 KGauss for MPP cores or 4KGauss for Ferrite cores. This feature will reduce the core size significantly in many applications and provides a higher energy storage capability than any other materials.
HFC cores have very low residual flux density or very large Delta B, this feature is excellent for Power Factor correlation circuits or unidirectional drive applications such as flyback transformers and pulse transformers.
HFC cores offer outstanding DC bias and temperature stability characteristics in comparison to any powder cores.
Application

Output Inductors.
Storage Inductors.
DC Inductors.
In-line noise filter.
Fly back transformers.
Pulse Transformers.
Characteristics

High permeability μi (200KHz) , high L and impedance Z in the high frequency range
High saturation flux density(1.2T)
High curie temperature(580ºC) and excellent temperature characteristics
Low remnant flux density Br with DC-tolerance
Specification Sheet a-core build; b-window width; c-window height;d-strip width;
e-core width;f-core length;Lm-length of magnetic path;
Ac-section area;Mass-weight;



P/N core  dimension
od×id×h  mm		 Limit  dimension G
(g)		 Ae
cm2		 le
cm		 I eff
mA/		 10KHz
min		 100KHz
min		 ref. P/N
OD ID H AL/μH μ(K) AL/μH μ(K)
NL100705G 10×6.5×5 11.8 5.1 6.8 1.2 0.07 2.60 5.4 19.1 65 4.8 14.5 ~W914
NL120805G 12×8×5 14.4 6.4 7.2 2.0 0.08 3.14 7.0 20.0 65     ~W902
NL161008G 16×10×8 17.8 8.6 10.0 5.6 0.19 4.08 10 34.0 60 8.0 14.0 ~W403
NL201208G 20×12×8 22.5 10.0 10.0 9.7 0.25 5.03 10 40.0 64 9.3 15.0 ~W409
NL201210G 20×12×10 22.5 10.0 12.5 11.5 0.31 5.03 10 50.0 65 11.7 15.0
NL201210GL 20×12×10 22.5 10.0 12.5 11.5 0.31 5.03 10 22-33 28-42
NL211508GC 21×15×8 23.6 12.1 11.4 7.5 0.19 5.65 10 25.0 60 5.8 14.0
NL252010G 25×20×10 27.6 17.4 12.8 10.4 0.20 7.07 15 21.3 62 5.5 15.5 W523
NL261910GC 26×19×10 28.5 16.2 13.2 14.1 0.27 7.06 15 29.0 60 6.8 14.0
NL261610G 26×16×10 28.0 13.7 12.5 18.0 0.39 6.60 15 48.0 65 11.5 15.5 ~W380
NL261610GL 26×16×10 28.0 13.7 12.5 18.0 0.39 6.60 15 21-32 28-42
NL302010GC 30×20×10 33.0 17.4 13.1 28.0 0.71 8.17 20 46.0 64 10.5 14.6 ~W423
NL322010GLC 32×20×10 34.5 17.7 12.5 28.0 0.71 8.17 20 20-30 28-42
NL322015G 32×20×15 34.5 17.7 18.5 42.0 0.71 8.17 20 70.0 65 14.0 13.0  FT-3KM N3320E
NL403215G 40×32×15 43.1 28.7 18.5 37.9 0.46 11.3 30 36.5 70 8.34 16.0 W422
NL403215GL 40×32×15 43.1 28.7 18.5 37.9 0.46 11.3 30 15-22 28-42
NL402510GC 40×25×10 43.2 22.6 13.5 43.6 0.59 10.2 30 43.0 62 10.0 14.0
NL402515G 40×25×15 43.1 22.5 18.5 64.2 0.86 10.2 30 76.0 70 16.0 15.0 W424
NL402515GL 40×25×15 43.1 22.5 18.5 64.2 0.86 10.2 30 31-46 28-42
NL462715GC 46×27×15 48.4 24.4 18.5 95 1.11 11.5 30 60.0 50 17.0 14.0  FT-3KM F4627
NL462725G 46×27×25 48.4 24.4 18.5 164 1.78 11.5 30 90.0 45 26.0 13.0  FT-3KM F4627H
NL503215G 50×32×15 53.5 29.0 18.6 98 1.10 12.9 30 50.0 50
NL504020GC 50×40×20 53.5 36.3 23.4 79 0.76 14.1 30 34.0 50 9.5 14.0 W516
NL504020GL 50×40×20 53.5 36.3 23.4 79 0.76 14.1 30 20-30 28-42 7.5 11.0 ~W565
NL504025GC 50×40×25 53.5 36.3 28.4 95 0.95 14.1 30 45.0 52 11.0 12.6
NL523618C 52×36×18 56.0 32.0 23.4 110 1.12 13.8 30 53.0 52 13.0 12.7
NL523625C 52×36×25 56.0 32.0 28.4 150 1.55 13.8 30 70.0 50 17.0 12.0
NL533820GC 52×36×20 57.0 34.0 24.5 122 1.17 14.3 30 62.0 55 14.0 14.0
NL655025G 65×50×25 68.0 46.5 28.6 190 1.46 18.0 40 50.0 50     ~W517
NL654030C 65×40×30 69.0 36.0 35.0 350 2.93 16.5 40 110.0 50 25.0 11.0
NL805020G 80×50×20 86.0 44.7 25.7 342 2.28 20.4 50 72.0 50 18.0 13.0 W531
NL906020G 90×60×20 95.4 56.1 24.7 395 2.28 23.6 50 61.0 50     W518
NL1037530G 103×75×30 109 70.0 35.0 670 3.27 28.0 60 74.0 50     ~W468
NL1008020G 100×80×20 104 76.0 20.0 320 1.58 28.3 80 31.0 45 8.4 12.0  FT-3KM F10080G
NL1208030GL 120×80×30 125 75.0 25.0 1100 4.80 31.4 80 52-79 28-42 22.0 11.5
NL13010030G 130×100×30 135 95.0 35.0 910 3.51 36.1 80 60.0 50 12.4 13.0 W630
NL13010030GL 130×100×30 135 95.0 35.0 910 3.51 36.1 80 34-52 28-42 11.0 11.5
NL17012025G 170×120×25 178 112.0 32.0 1600 4.87 45.5 80 68.0 50
