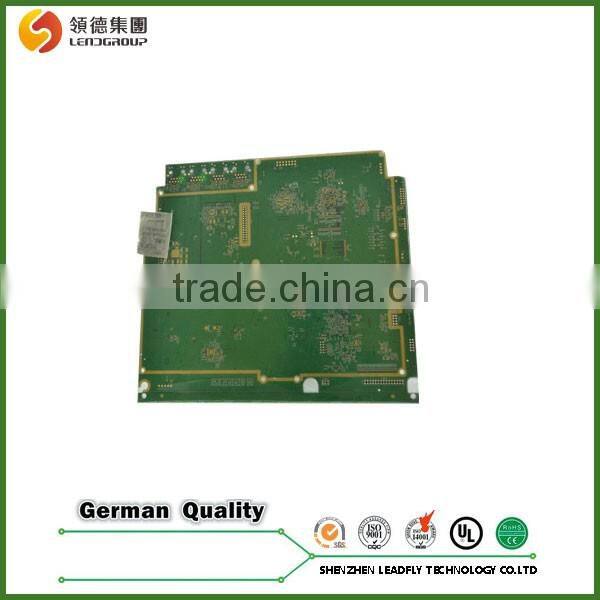

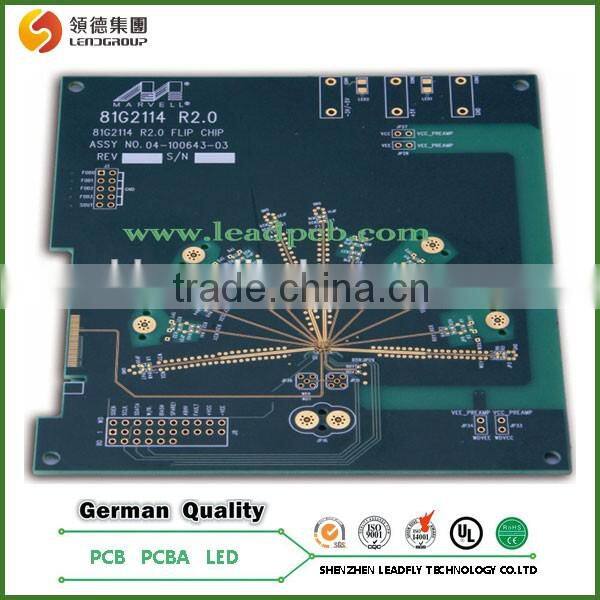

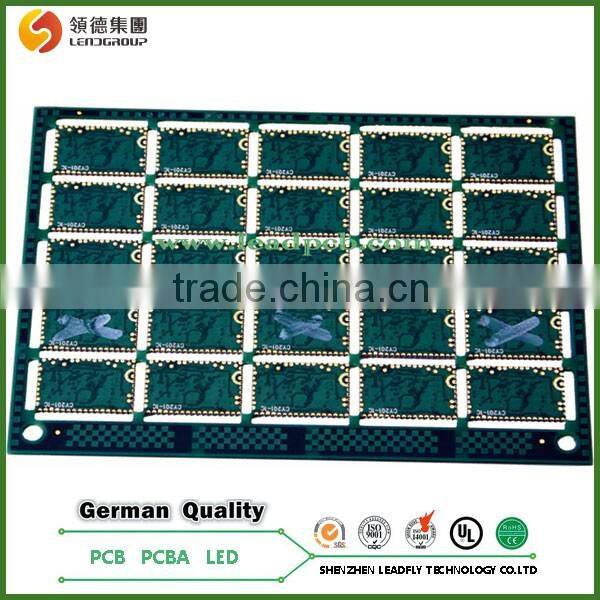

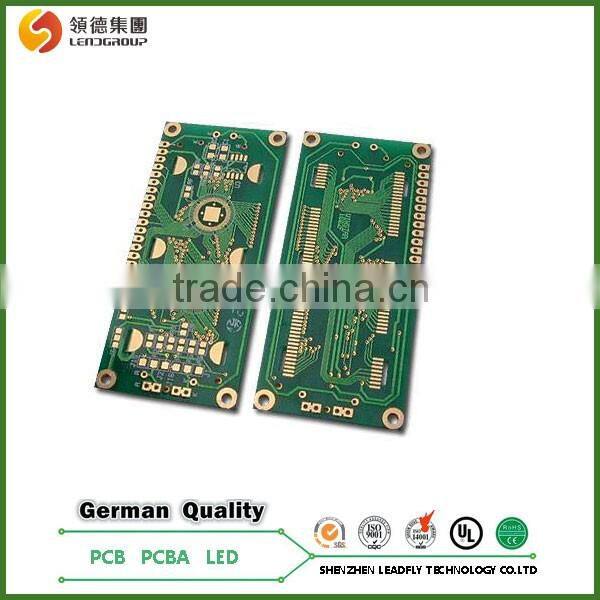

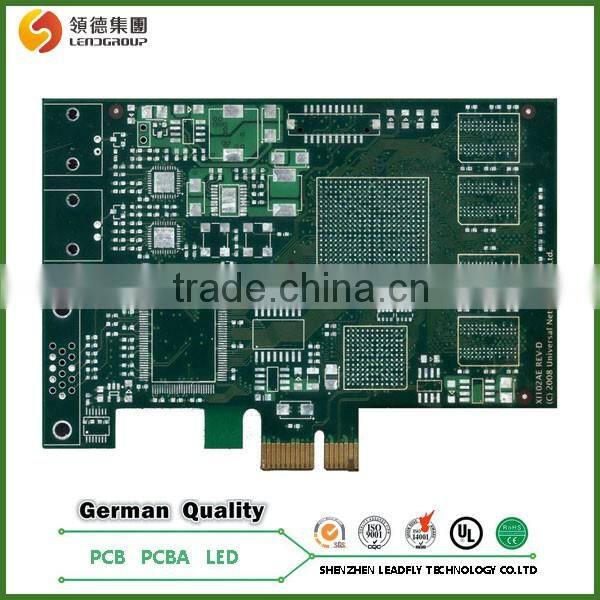

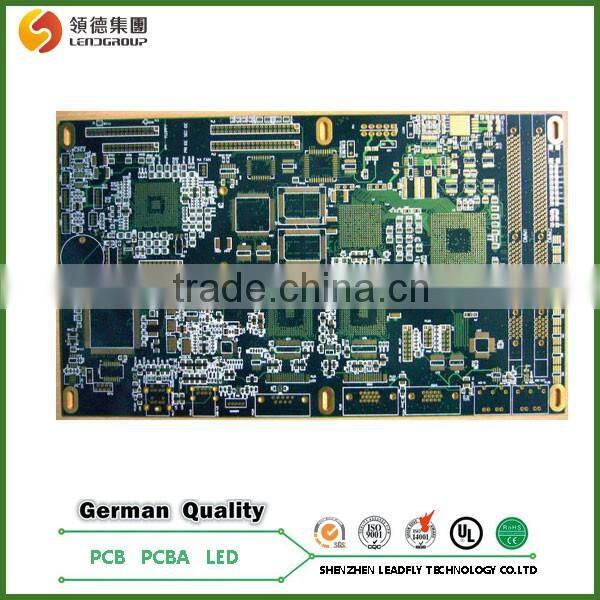

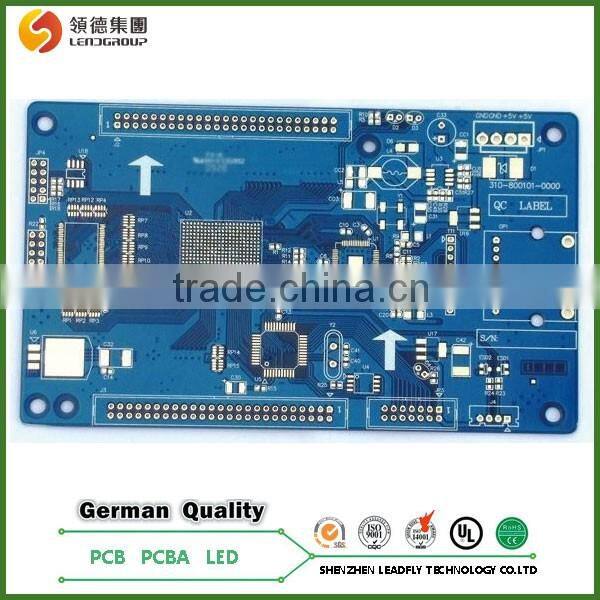

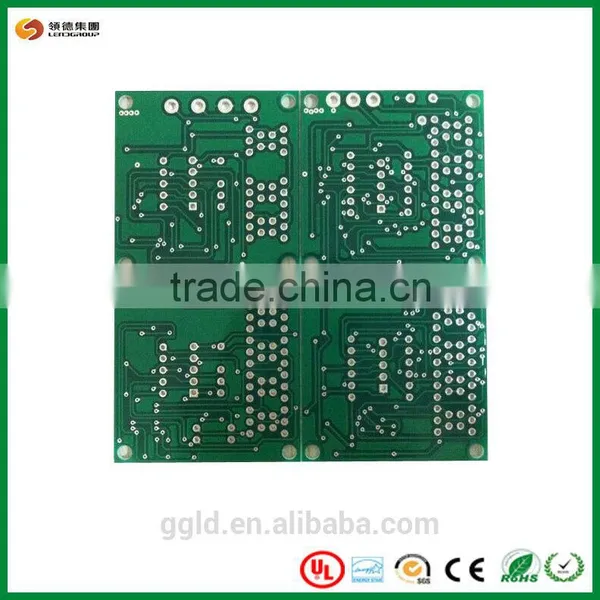

High Precision FR-4 Pcb for Led Lighting With New Year Price

Name: High Precision FR-4 Pcb for Led Lighting With New Year Price
Brand: LEAD
Availability: InStock

FOB Price

US$ 0.1 - 50 / Square Meter

1 Square Meter(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	LEAD
Model Number	High Precision Multilayer Printed Circuit Board	Base Material	FR4
Copper Thickness	0.5OZ~5OZ	Board Thickness	0.2-5.0mm
Min. Hole Size	0.2mm	Min. Line Width	0.1mm
Min. Line Spacing	0.1mm	Surface Finishing	HASL/OSP/Immersion Gold

High Precision FR-4 pcb for led lighting with new year price

Multilayer PCB Specification:

Layer Counts	1-12layers
Product Categories:	single/double sided board, multi-layer board, high density board, including MLB with blind/buried via holes
Main base material:	FR-1, FR-2, FR-4, High Frequency Laminate with various dielectric constant (imported or from local supplier), Aluminum base laminate, Metal core Aluminum
Surface Finish:	lead free HASL, immersion gold/silver/tin, plating gold, OSP
Board Thickness:	Inner core thickness 0.15-1.5mm, finished board thickness 0.20-5.0mm
Copper Foil Thickness:	0.5oz~5oz
Min. hole size:	0.2mm/8mil
Min. line width:	0.1mm/4mil
Min. spacing:	0.1mm/4mil
Maximum Size:	600mm x 10000mm
Min. Size:	5mm x 10mm
Solder Mask Type:	Liquid photo-imageable, Thermosetting solder, UV solder mask
Outline Tolerance:	±0.13mm(r0. ±0.13mm(routing), ±0.05mm(punching)
Inner Layer registration tolerance:	±0.05mm
Production capacity per month:	≥10000sqm
Profiling:	Punching, Routing, V-CUT, Beveling
