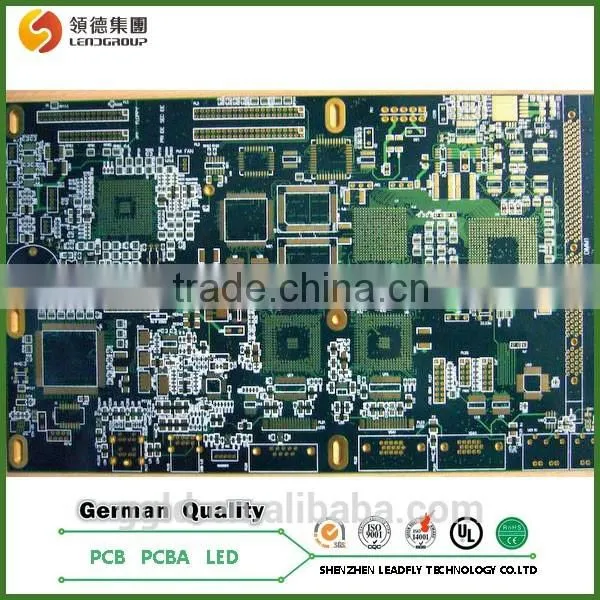

High Quality Multilayer FR-4 Pcb With New Year Price!

Name: High Quality Multilayer FR-4 Pcb With New Year Price!
Brand: LEAD
SKU: 124409131
Availability: InStock

Shenzhen Leadfly Technology Co., Ltd.

US$ 0.1 - 50 MOQ: 1 Square Meter

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

LEAD

Model Number:

Mobile Phone PCB Board

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name LEAD

Model Number Mobile Phone PCB Board

Base Material FR4

Copper Thickness 1/3 OZ~6OZ (18um~210um)

Board Thickness 0.2-5.0mm

Min. Hole Size 0.2mm

Min. Line Width 0.1mm

Min. Line Spacing 0.1mm

Surface Finishing ENIG

High quality multilayer FR-4 pcb with new year price!

Multilayer PCB Specification:

Layer Counts	1-12layers
Product Categories:	single/double sided board, multi-layer board, high density board, including MLB with blind/buried via holes
Main base material:	FR-1, FR-2, FR-4, High Frequency Laminate with various dielectric constant (imported or from local supplier), Aluminum base laminate, Metal core Aluminum
Surface Finish:	lead free HASL, immersion gold/silver/tin, plating gold, OSP
Board Thickness:	Inner core thickness 0.15-1.5mm, finished board thickness 0.20-5.0mm
Copper Foil Thickness:	0.5oz~5oz (18um – 210um)
Min. hole size:	0.2mm/8mil
Min. line width:	0.1mm/4mil
Min. spacing:	0.1mm/4mil
Maximum Size:	600mm x 10000mm
Min. Size:	5mm x 10mm
Solder Mask Type:	Liquid photo-imageable, Thermosetting solder, UV solder mask
Outline Tolerance:	±0.13mm(r0. ±0.13mm(routing), ±0.05mm(punching)
Inner Layer registration tolerance:	±0.05mm
Production capacity per month:	≥10000sqm
Profiling:	Punching, Routing, V-CUT, Beveling
