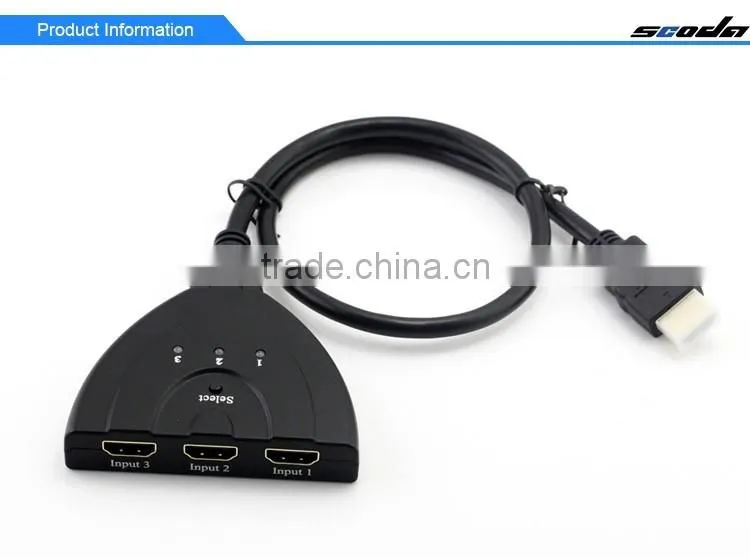

3X1 HDMI Pigtail Switch

The series of the HDMI switcher have many features that enable them to perform in a superior manner. Among those features you will find:

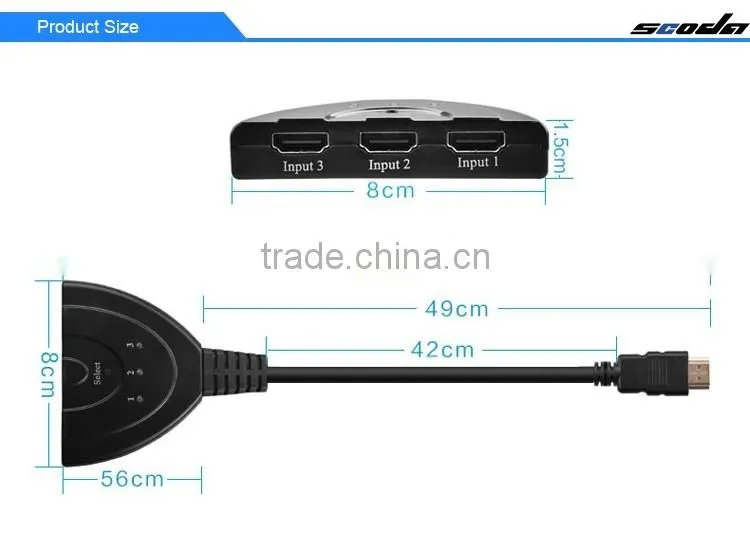

●50cm hdmi cable Output
●No need power
●Plug and play
●Support with HDMI 1.3V.
●Support 12-bit Deep Color

●High performance up to 2.5Gbps.

●Swappable multiple HDMI output device.

●Maintains high resolution video, HDTV resolutions up to 1080p, computer resolutions up to 1920X1080 are easily achieved.

●HDCP compatible.

Signal Inputs/Output
Input Video Signal......... 0.5-1.0 volts p-p
Input DDC signal ....................5 volts p-p (TTL)
Maximum Single Link Range..........1920x1080,1080p
Output Video...................HDMI 1.3V+HDCP 1.0/1.1
Video format supported
VGA................640x480,800x600,1024x768,1920x1080
DTV/HDTV........480i/576i/480p/576p/720p/1080i/1080p

Operating Frequency
Video Amplifier Bandwidth.............2.5Gpbs/250MHZ
Frequency............25MHZ-165MHZ

Environmental
Operating Temperature.............0℃ to 70℃
Operating Humidity.........10% to 85% RH(no condensation)
Storage Temperature...............-10℃ to +80℃
Storage Humidity.............5% to 90% RH(no condensation)
