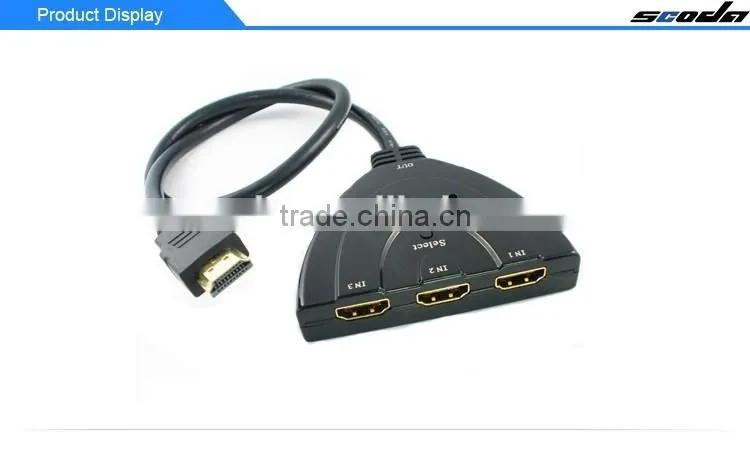

Newest 3X1 HDMI Pigtail Switcher Auto Switcher
The series of the HDMI switcher have many features that enable them to perform in a superior manner. Among those features you will find:
50cm hdmi cable Output
No need power
Plug and play
Support with HDMI 1.3V.
Support 12-bit Deep Color
High performance up to 2.5Gbps.
Swappable multiple HDMI output device.
Maintains high resolution video, HDTV resolutions up to 1080p, computer resolutions up to 1920X1080 are easily achieved.
HDCP compatible.
Signal Inputs/Output
Input Video Signal......... 0.5-1.0 volts p-p
Input DDC signal ....................5 volts p-p (TTL)
Maximum Single Link Range..........1920x1080,1080p
Output Video...................HDMI 1.3V+HDCP 1.0/1.1
Video format supported
VGA................640x480,800x600,1024x768,1920x1080
DTV/HDTV........480i/576i/480p/576p/720p/1080i/1080p
Operating Frequency
Video Amplifier Bandwidth.............2.5Gpbs/250MHZ
Frequency............25MHZ-165MHZ
Environmental
Operating Temperature.............0℃ to 70℃
Operating Humidity.........10% to 85% RH(no condensation)
Storage Temperature...............-10℃ to +80℃
Storage Humidity.............5% to 90% RH(no condensation)
