2 FXS Wireless Router G702

• 5 10/100M  RJ45 ports, 2 FXS RJ11 ports
• 1 USB port
• 5dBi external antenna
• IEEE802.11ac 450Mbps & IEEE802.11n 300Mbps Wi-Fi
• Hardware NAT (HNAT) engine with 100Mbps NAT/NAPT speed
• Rich QoS capability in wired and wireless
• Real time FAX over IP via T.38 and T.30 FAX with G.711
• PESQ is above 4.4 in G.711, PESQ is above 3.7 in G.729
• Auto-Provisioning TFTP/HTTP/HTTPS, TR069, SNMP

A Practical and Powerful VoIP Wireless Router

The Flyingvoice powerful VoIP Wireless Router G702, G702 includes extended functions which support 3G card, USB memory card, and 2 FXS ports. This design not only provide users with a conventional VoIP and routing capabilities, but also allow users to enjoy 3G wireless network anytime. Users can also take G702 as a FTP server, to share LAN files, pictures and other resources. Meanwhile, 2 FXS ports can be well adapted to small and micro enterprises, 1FXS for telephone, 1FXS for Fax, no need to add additional equipment. G702 VoIP wireless router is ideally suited for small and medium enterprises (SMB) to build wireless office.

G702 supports IEEE802.11ac gigabit wireless LAN standard, the highest wireless speed is up to 750Mbps and it supports both 2.4GHz and 5GHz bands.For VoIP end user, 5G band can make sure less interference and the transmission quality. The more, users can enjoy greater bandwidth, and enhanced data throughput.



Hardware Installation
  Before starting to configure the router, you have to connect your devices correctly.
1) Connect Line port to land line jack with a RJ-11 cable.
    2) Connect the WAN port to a modem or switch or router or Internet with an Ethernet cable.
3) Connect one port of 4 LAN ports to your computer with a RJ-45 cable. This device allows you to connect 4 PCs directly.
4) Connect one end of the power cord to the power port of this device. Connect the other end to the wall outlet of electricity.
5) Push the ON/OFF button to power on the router.
6) Check the Power and WAN, LAN LEDs to assure network connections.

Appearance

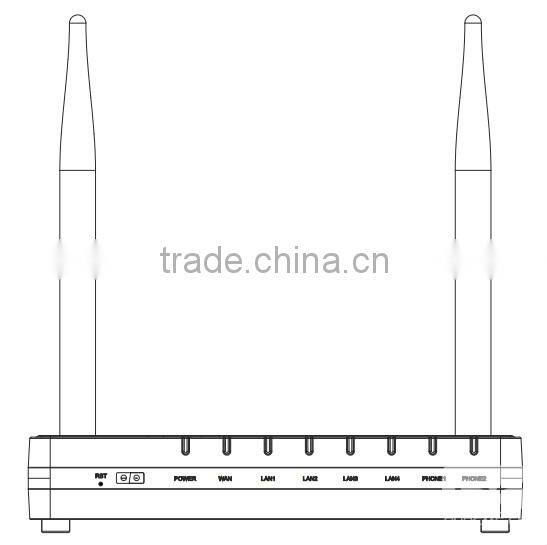

1) Front Panel

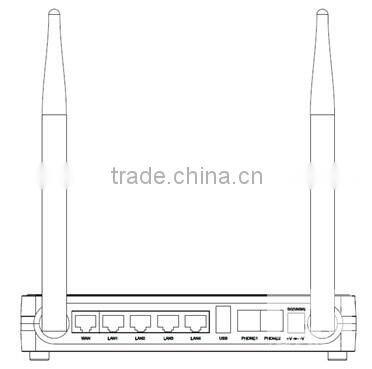

2) Rear Panel


Ways to configure G702

There are three ways to configure G702: use IVR, use provision and use WEB GUI, recommend is WEB GUI. And you can configure only some parameters through IVR, like WAN port IP address, WAN port IP mode, Subnet mask and so on. User presses **** to start IVR, and the IVR will lead you to configure. Every time you finish some changes, you may need reboot G702 to make the changes effective. Details about IVR, please refer to G702 user manual. Provision is also a convenient way to make configurations, to get more information about provision, please refer to provision user manual. And you can configure all the parameters of G702 through WEB GUI, login to G702's webpage, then you can begin to configure.

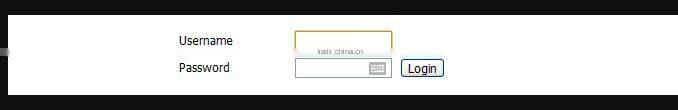

Following picture is the login page of G702 :

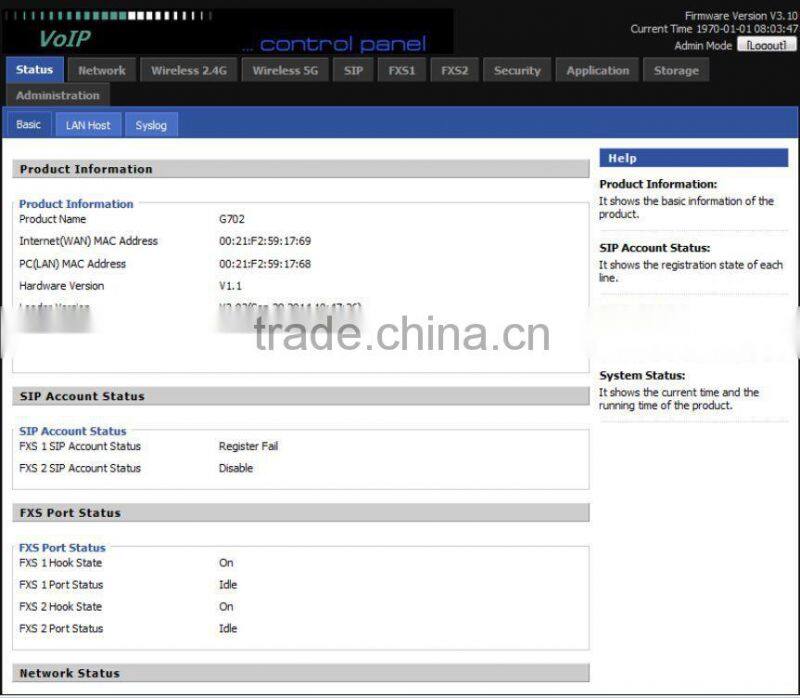

And Status page of G702:

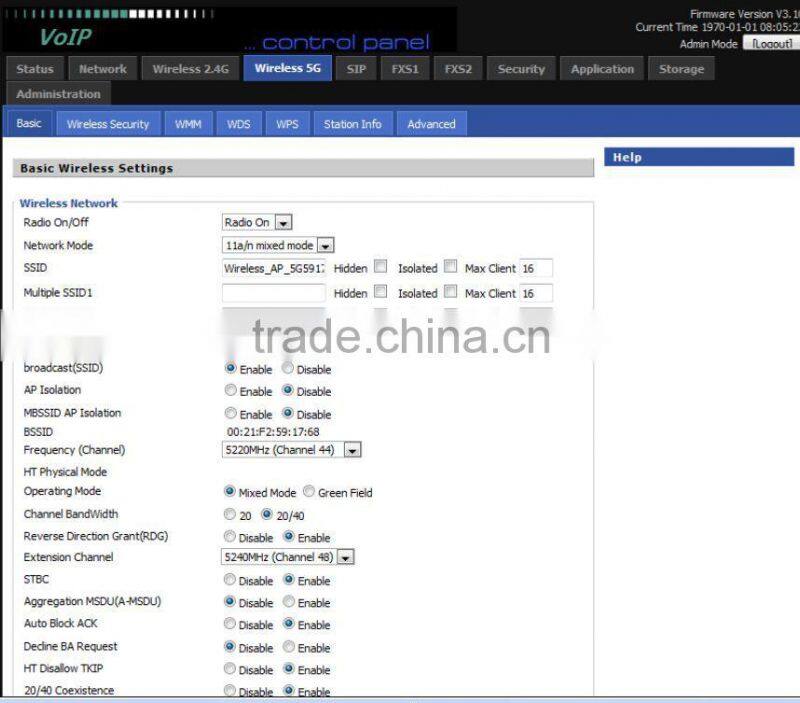

User wants to use G702 as a wireless router need to configure in G702's network and wirless page. Details about configuration, please refer to user manual. The wireless page of G702:

Basic use of G702

1) Connect an analog telephone to G702's FXS port, register an account and make calls;
2) Connect an FAX machine to G702's FXS port, register an account and make calls;
3) Connect ohter devices to G702's LAN port to use G702 as a router;
4) Configure the wireless network of G702, connect  ohter devices to G702, use the wireless network.
