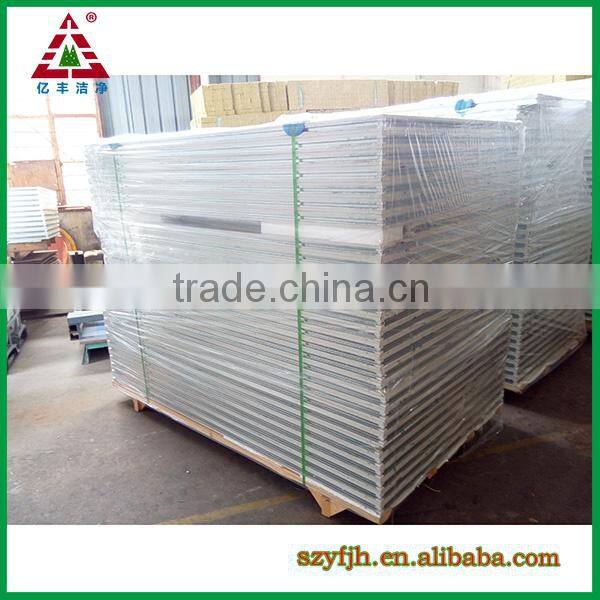

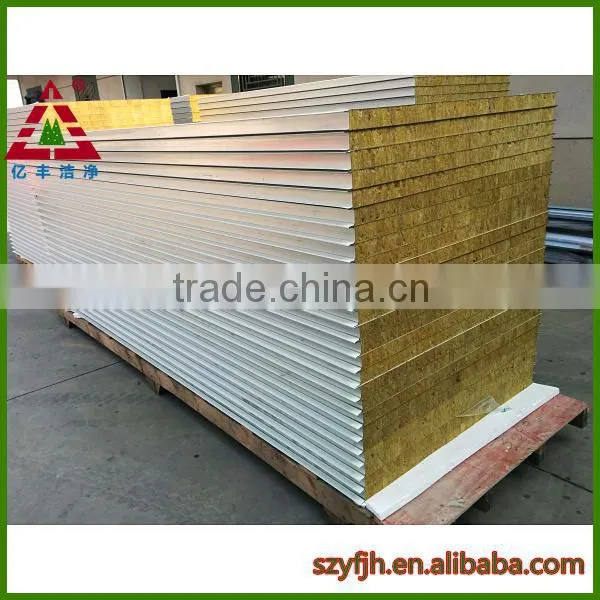

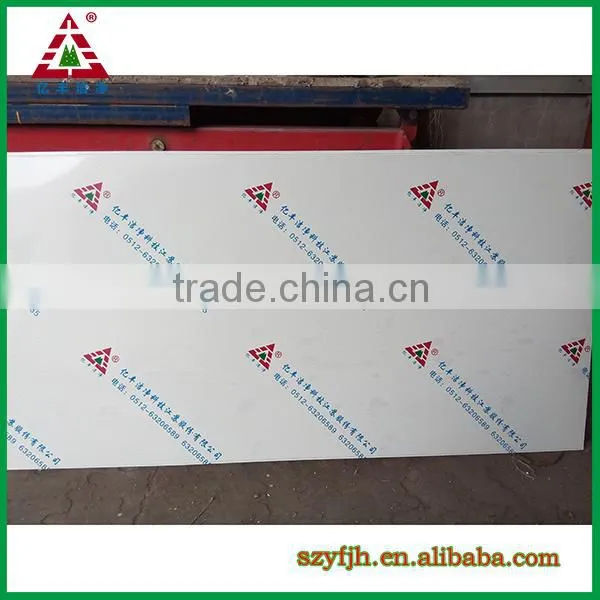

2015 factory price fire-proof Rock Wool Sandwich Panel

no packing ,load to container directly

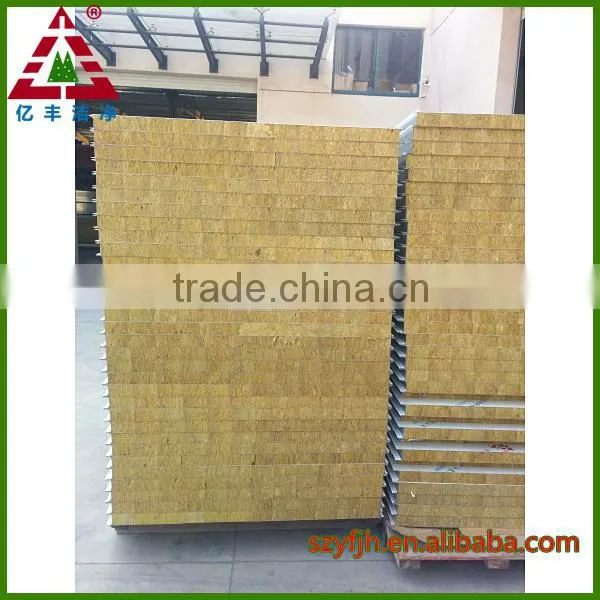

Rockwool sandwich panel

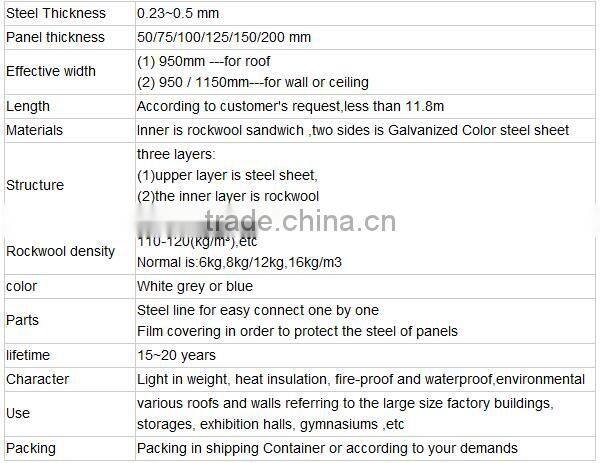

Production deatil:

1.Effective width:950,1150mm
2.Thickness for rockwool: 40-250mm ,normal size is :50/75/100mm
3.Thickness for steel sheet: 0.4-1.2mm(double faces),normal size is :0.326/0.376/0.426/0.476mm
4.Length:  according to your request ,less than 12000mm suitable for the transport
5.Rockwool density: 120-150kg/m3
6.Character:

  1) Light in weight, heat insulation, water resistant,  noise-absorbing ,cheap in price

  2) Fire resistance raring: Grade A

 7.Usage:

  1) Temporary offices, dormitories, warehouse and workshop in construction sites and in municipal works and residential resettlements

  2) Temporary commercial housings in the cities, such as exhibition halls, shopping centers, offices and other housings for exhibition and sports

  3) Holiday inns or container house, leisure villas and holiday homes in tourist spots.

  4) Temporary houses used in large-scale fieldwork, such as exploiting energy sources and making tunnels, warehouse

  5) Temporary houses in military field and temporary housings in earthquake, fire, hurricane and flood disaster-affected areas

  6) Large area suspended ceiling , separation of steel structure workshop, suspended ceiling, wall body and air purification room.

Features:

1.Composed of 2 layers of weather proof colored steel sheet and jetted hard forms of polyurethane between 2 layers(fireproof material).

2.Suitable for varioud roofs and walls referring to the large size factory buildings,storages,exhibition halls,gymnasiums,freezing stores and purification workshops (temp-keeping,heat insulation,weight bearing,weatherproof,rich color and good appearan  ce).

3.Light self-weight:35 to 40kg/sqm.

4.Installation is convenient and flexible without the large-size lifting devices so that the constrution period is limited with the lower comprenhensive costs.

5.Heavy load bearing capacity:high strength and high rigidness ang is suitable either for the weight -bearing structure or for the protectivve structure.

6.Good temp-keeping and hest insulation

7.Average therumal conductivity:<=0.041/mk.

8.Flexible application:as the continuous production line is controlled by the computer system,the length of the said compound sheets wil be decided and selected according to the designing requirement, transport and installation conditions.

9.Can select different thickness of the composite pannel in accordance with the proof load bearing and purlin distance.

10.Fine fireproof:test by national quality inspection center for fireproof building material,all its index reach grade B1and rad Aof GB8624 respectively.

11.Packing:export standard or per your requirement.
